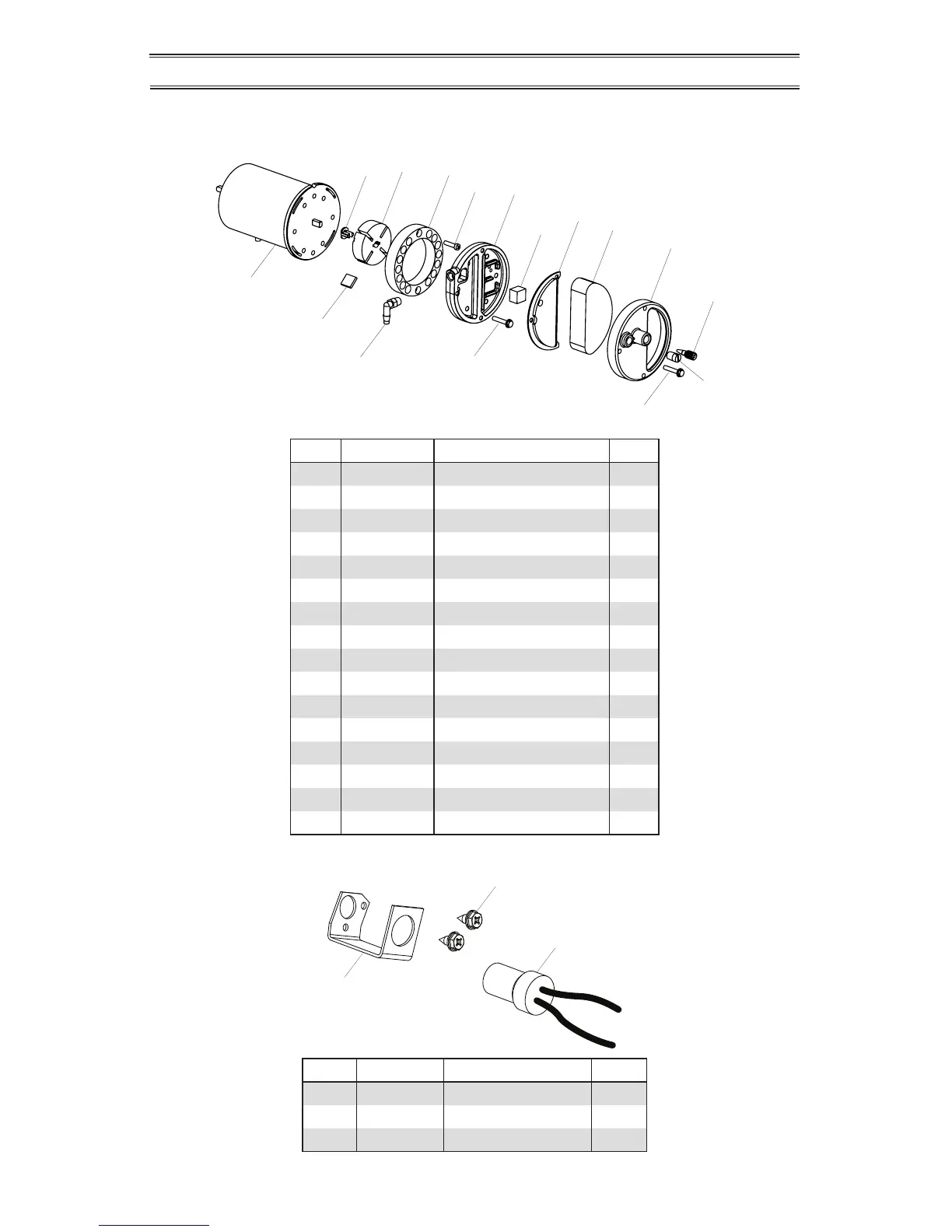

Procom PCK160VT - Motor and Pump Assembly; Photocell Assembly

www.usaprocom.com
160108-01B22
1
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
PHOTOCELL ASSEMBLY
1
2
3
ITEM PART # DESCRIPTION QTY
1 160041-03 Photocell Bracket 1
2 160092-02 Screw, 6-32 x .38 2
3 160016-01 Photocell Assembly 1
ITEM PART # DESCRIPTION QTY
1 160001-01 Motor 1
2 160023-01 Rotor Insert 1
3 160003-01 Pump Rotor 1
4 160006-01 Pump Body 1
5 160088-01 Screw, 10-32 x .62 2
6 160007-01 Pump Cover 1
7 160009-01 Lint Filter 1
8 160008-01 Output Filter Assembly 1
9 160010-01 Intake Filter 1
10 160057-01 Filter End Cover 1
11 160106-01 Adjusting Screw 1
12 160024-01 Pipe Plug 1
13 160090-01 Screw, 10-32 x 1.0 3
14 160089-01 Screw, 10-32 x 1.12 6
15 160029-01 90° Nylon Elbow 1
16 160004-01 Pump Blade 4
PARTS
MOTOR AND PUMP ASSEMBLY
MODELS PCK110VT, PCK160VT, PCK175VT AND PCK220VT
