MAIN BURNER
Periodically inspect all burner flame
holes with the heater running. All
slotted burner flame holes should
be open with yellow flame present. All
round burner flame holes should be
open with a small blue flame
present. Some burner flame holes
may become blocked by debris or
rust, with no flame present. If so,
turn off heater and let cool. Either
remove blockage or replace burner.
Blocked burner flame holes will
create soot.
SPECIFICATIONS
QL220TYLA QN220TYLA
Btu(Variable) 20000/22,000BTU/H
Gas Type Propane/LP or NG
Ignition Piezo
Propane/LP: (QL220TYLA)
Manifold Pressure 8.0"W.C.
Inlet Gas Pressure
(In. of water)*
Maximum 14"
Minimum 11"
NG (QN220TYLA)
Manifold Pressure 3.0"W.C.
Inlet Gas Pressure
(In. of water)*
Maximum 10.5"
Minimum 5"
Dimensions, Inches (H
×
W
×
D)
Stove 23 5/8"
×
27 1/2”
×
11 1/2"
Carton 28"
×
29 1/2”
×
13 3/4”
Figure 23 -Pilot Inlet Air Hole
Weight, pounds
Stove 58 lbs.
Shipping 67 lbs.
QL300TYLA QN300TYLA
Btu(Variable) 20000/30,000BTU/H
Gas Type Propane/LP or NG
Ignition Piezo
Propane/LP: (QL300TYLA)
Manifold Pressure 8.0"W.C.
Inlet Gas Pressure
(In. of water)*
Maximum 14"
Minimum 11"
NG (QN300TYLA)
Manifold Pressure 3.0"W.C.
Inlet Gas Pressure
(In. of water)*
Maximum 10.5"
Minimum 5"
Dimensions, Inches (H
×
W
×
D)
Stove 25 4/5"
×
32 1/4”
×
13"
Carton 25 1/8"
×
34 1/8”
×
12 7/8”
Weight, pounds
Stove 74 lbs.
Shipping 83 lbs.
*For purposes of input adjustment
CABINET
Air Passageways
Use a vacuum cleaner or
pressurized air to clean.
Exterior
Use a soft cloth dampened with a
mild soap and water mixture. Wipe
the cabinet to remove dust.
LOGS
If you remove logs for cleaning,
refer to Installing Logs to properly
replace logs.
Replace logs if broken or chipped
(dimesized or larger).
REPLACEMENT PARTS NOTE:
Use only original replacement
parts. This will protect your warranty
coverage for parts replaced under
warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this
product. If they can't supply original
replacement part(s) call the number

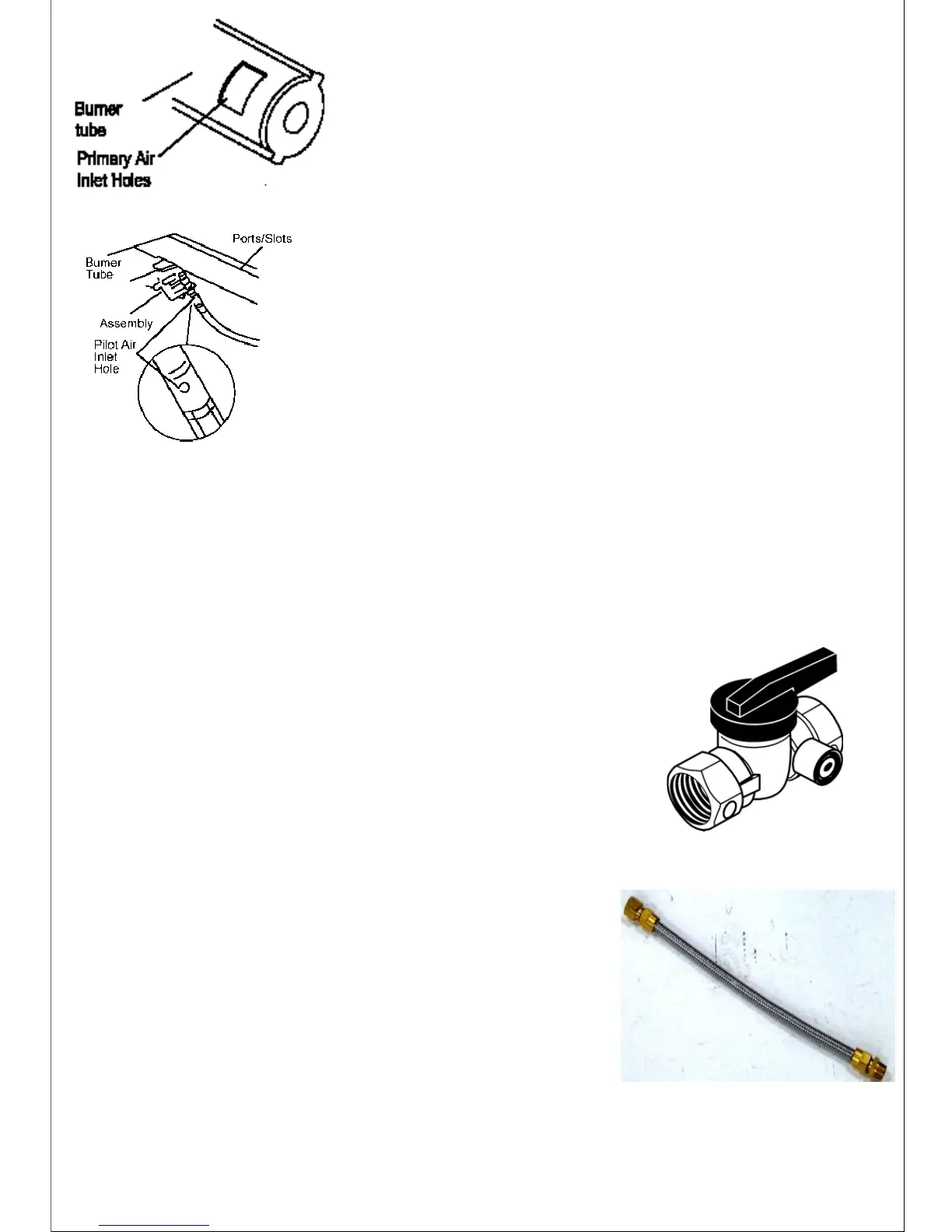

Figure 22 -Injector Holder on Outlet
Burner Tube
on the back of manual. when
contacting your dealer or PRO-COM,
have ready:
Your name
Your address
Model and serial numbers
of your heater
How heater was malfunctioning
Type of gas used (propane/LP or
NG)
Purchase date
Usually, we will ask you to
return the defective part to the
factory.
Warranty card.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this
product or Parts Central. If they can’t
supply original replacement part(s)
call PRO-COM’s toll-free number on
the front page.
ACCESSORIES
Purchase these heater accessories
from your local dealer or Parts
Central. This part is not currently
available from PRO-COM.
EQUIPMENT SHUTOFF VALVE-
Equipment shutoff valve with 1/8"
NPT tap.
Burner
FLEXILBE HOSE
Flexibe gas hose is used for connect-
ing the heater to gas supply.
the flex hose must approved by CSA .
To Next Page
