Procom QL300TYLA - Log Placement Guide

24
FIG(3)
FIG(4)
STEP 2: Install the log 2 on the right rear angle iron. see FIG(3)
STEP 3: Install the log 3 on the front angle iron. See FIG(4).
1

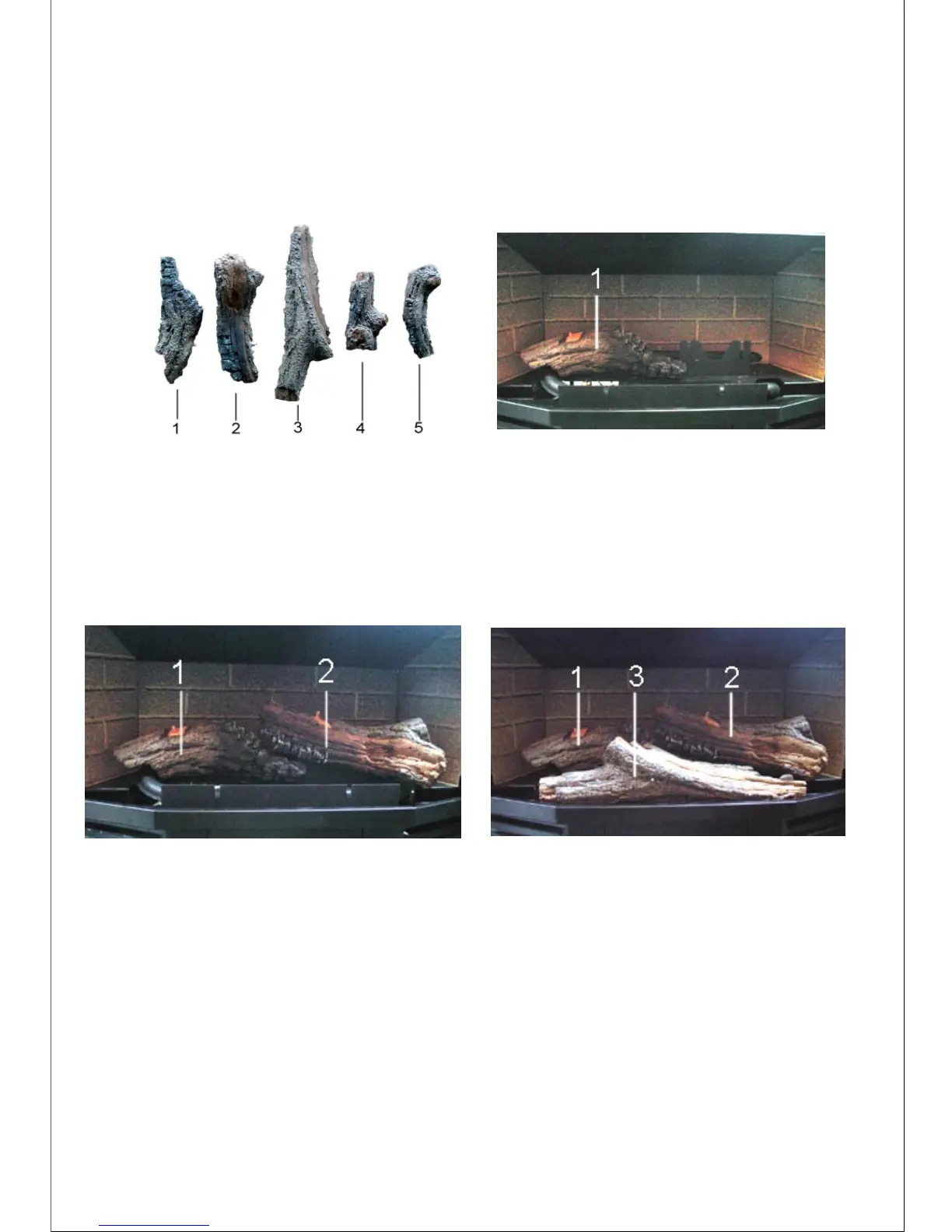

INSTALLATION INSTRUCTIONS FOR LOG SETS
1. All logs
FIG(1)
FIG(2)
STEP 1: Install the log 1 on the left rear angle iron. see FIG(2)
