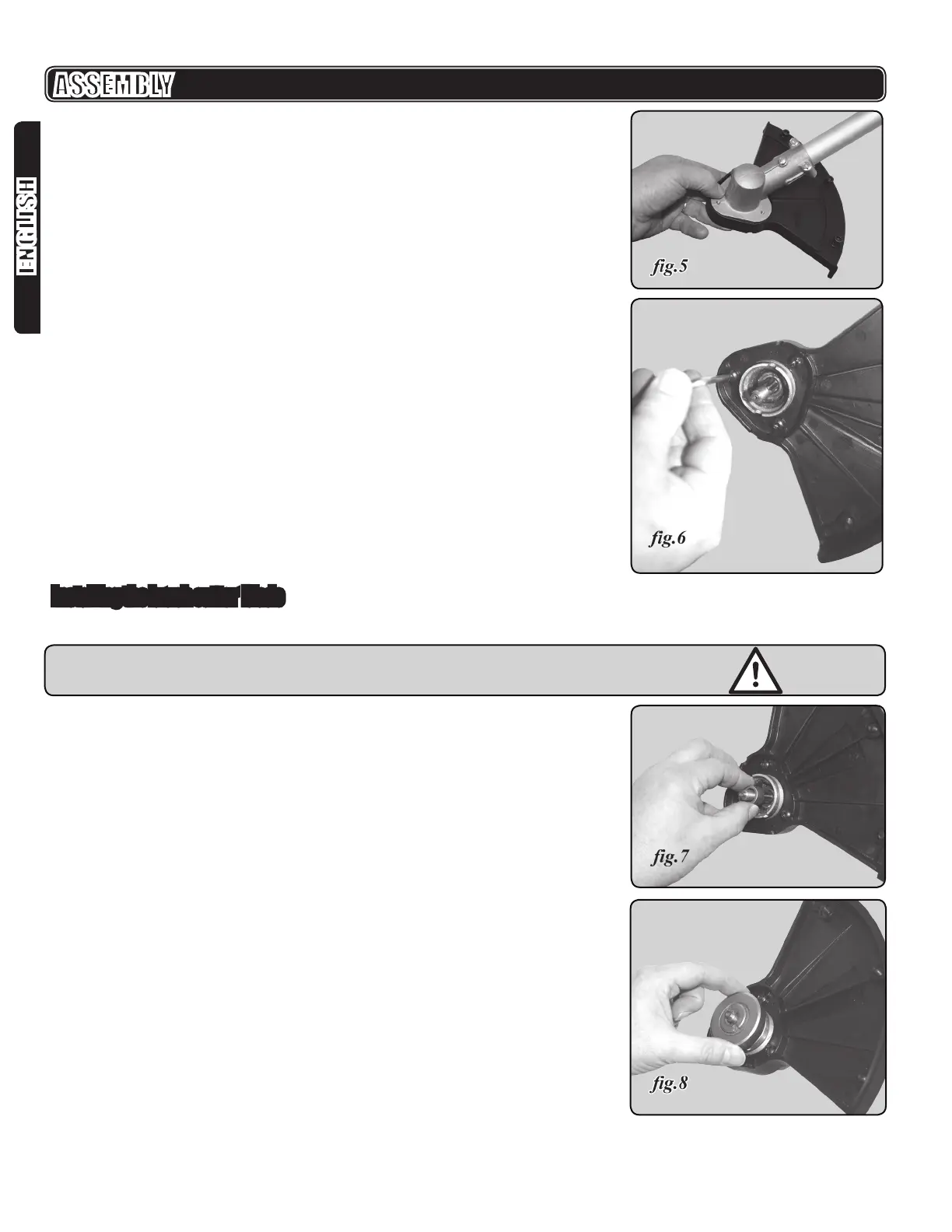

2. With the line head or steel blade removed, place the brush cutter guard on the

gear head as shown in g.5.

3. Using the included T25 torx driver wrench or a slot screwdriver, re-install the

three M6 x 15 torx/slot pan head screws from bottom through the guard and

into the gear head (g.6).

4. Tighten the screws securely.

Installing the brush cutter blade

1. Be sure the safety guard for the brush cutter blade is properly installed.

WARNING! Do not install the brush cutter blade without rst attaching the guard.

2. Place the machine upside-down (with the cutting head facing up) on a horizontal

surface.

3. Place the spacer sleeve (Q, g. 4) over the gear head shaft (g.7).

4. Place the blade seat ange (R, g. 4) over the gear head shaft (g.8), aligning

grooves in the ange with the splines on the shaft.
