3.1 Power Switch
Before switching on the unit please ensure the mains voltage matches the units setting (see
Section 2.2 Check Line Voltage)
At mains power ON, the following should be apparent.
3.1.1. The mainframe and firmware version is displayed on its screen at the bottom right.
3.1.2. If a load module is fitted it’s LCD will become lit and display its firmware version
3.1.3. If no load module is fitted the fan will not operate. If a load module has been installed
The fan will turn slowly. The fan will speed up under load.
3.2 LCD
The mainframe’s LCD will illuminate fully at mains power ON.

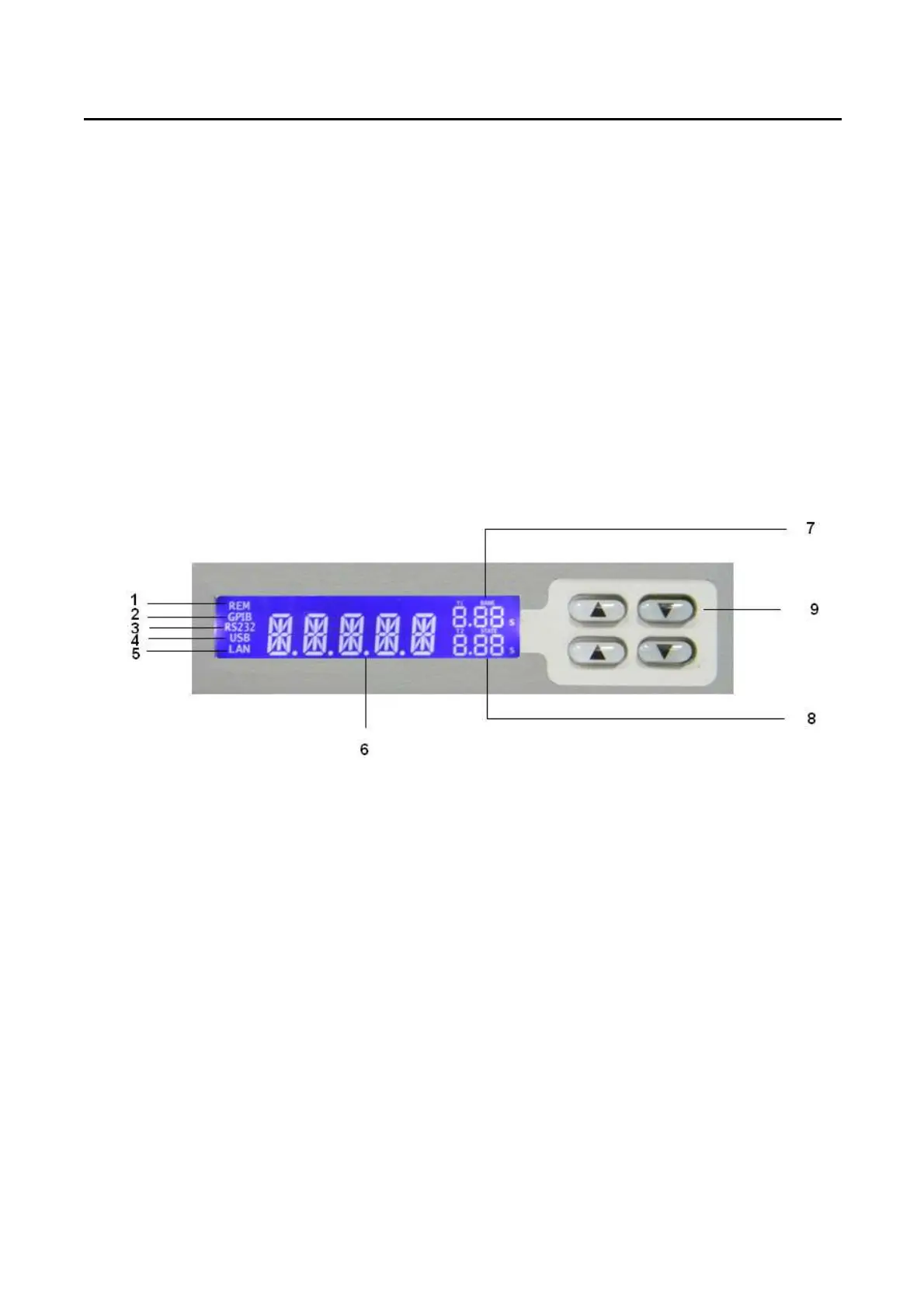

Please refer to the relevant section below as indicated by the number assigned to a front panel
Function. For example the arrow buttons are labeled 9 so for more information please refer to
3.2.9 in the following section.
3.2.1 REMOTE mode
The REM will be lit when 3302F is being controlled via the GPIB/RS232/USB or
LAN -Interface. To bring back the unit to front panel control the local button on the
Right hand side of the mainframe can be pressed.
