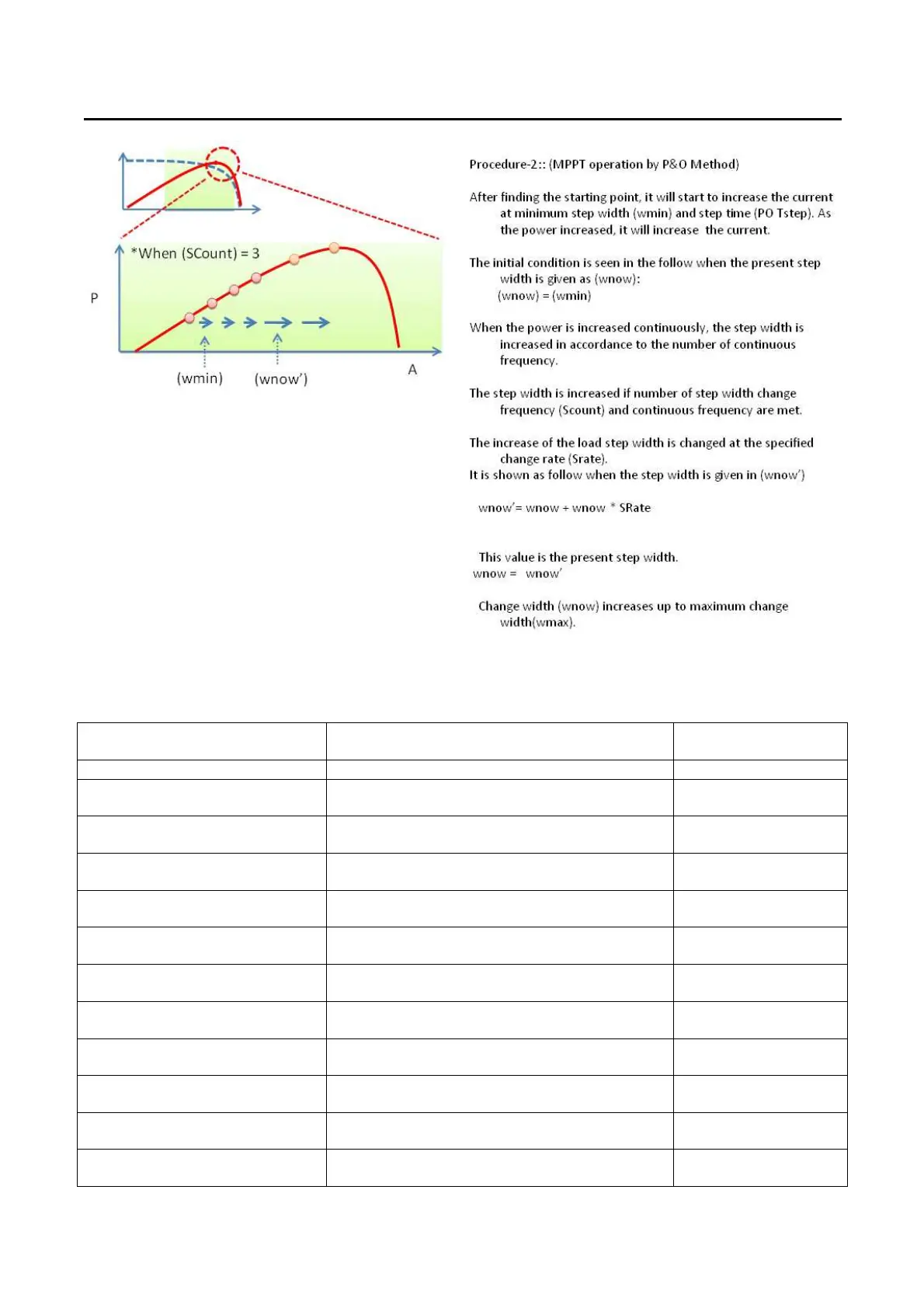

Fig 4-3b
MPPT CC/CR/CV command：331XF at r2.08 version above is enabled
Command Description Specification
MPPT:MODE{SP}{CC|CR|CV}{NL} Select MPPT mode (CC、CR、CV)
MPPT:CC:START{SP}{NR2}{NL} Set CC mode starting current of whole
scan，unit：A
same as CC range 2
MPPT:CC:STOP{SP}{NR2}{NL} Set CC mode e
nd current value at the end
of whole scan，unit：A
same as CC range 2
MPPT:CC:VL{SP}{NR2}{NL} Set CC mode stop whole scan lower limit
voltage to P&O，unit：V
same as DVM range
MPPT:CC:VH{SP}{NR2}{NL} Set CC mode stop whole scan upper limit
voltage to P&O，unit：V
same as DVM range
MPPT:CC:Wmin{SP}{NR1}{NL} Set CC mode minimum
current change width
at MPPT，unit：A
same as CC range 2
MPPT:CC:Wmax{SP}{NR1}{NL} Set CC mode maximum
current change width
at MPPT，unit：A
same as CC range 2
MPPT:CR:START{SP}{NR2}{NL} Set CR mode s
tarting resistance of whole
scan，unit：Ω
same as CR range 1
MPPT:CR:STOP{SP}{NR2}{NL} Set CR mode end resistance
value at the end
of whole scan，unit：Ω
same as CR range 1
MPPT:CR:VL{SP}{NR2}{NL} Set CR mode stop whole scan lower voltage
to P&O，unit：V
same as DVM range
MPPT:CR:VH{SP}{NR2}{NL} Set CR mode stop whole scan upper voltage
to P&O，unit：V
same as DVM range
MPPT:CR:Wmin{SP}{NR1}{NL} Set CR mode minimum conductance change
width at MPPT，unit：Ω
same as CR range 1
ex: 20Ω=50mSiemens
