Prodigit 3312F User Manual

3302F Mainframe Operation Manual 1
Chapter 1 Introduction

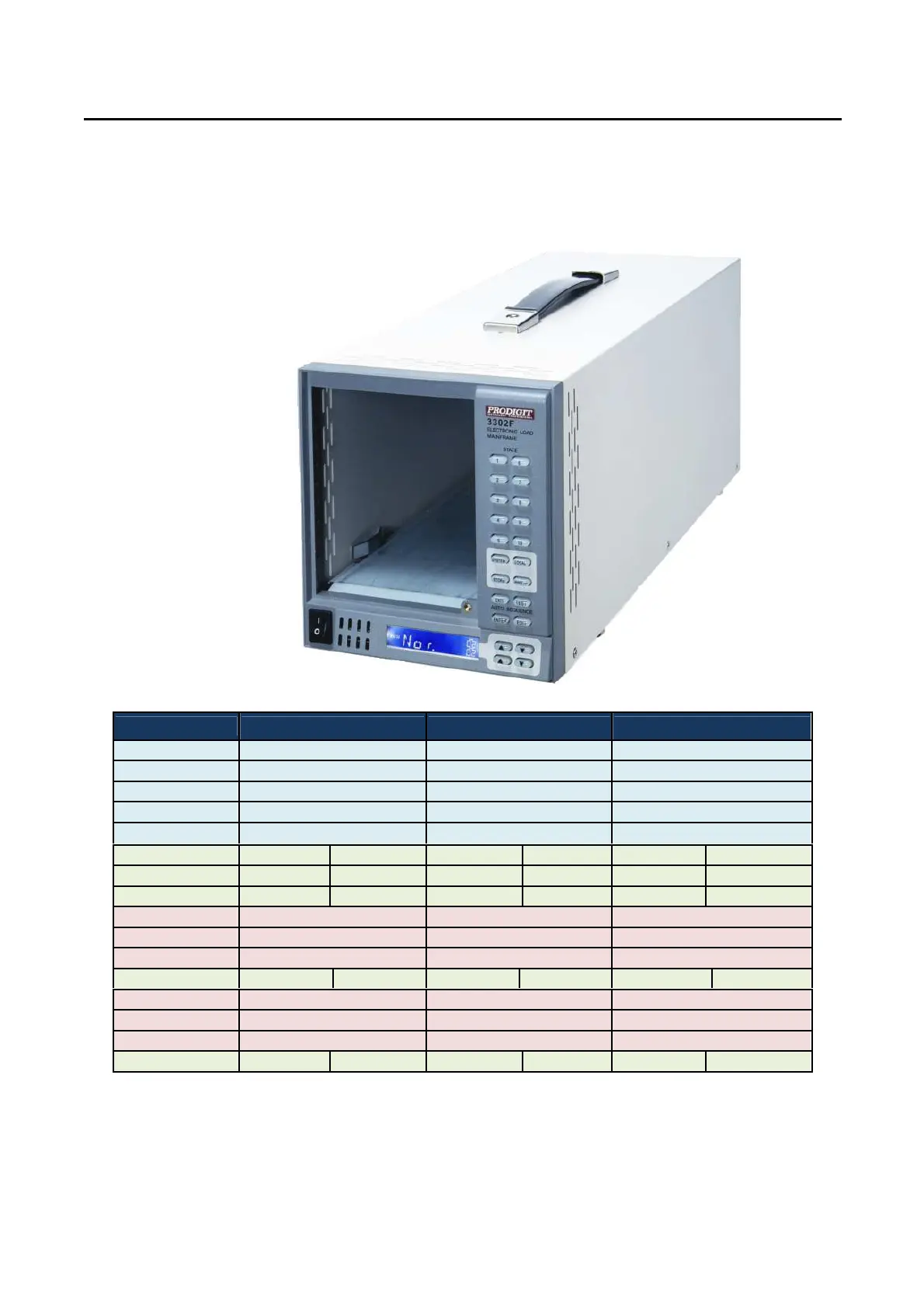

The 3302F electronic load mainframe is required to provide the DC power conversion and
optional computer communications to the ‘F’ series of Load Modules. The 3302F is designed
to house any of the following models:
TABLE 1-1 3310F / 3330F / 3340F/G / 33401F/G SERIES SPECIFICATION LIST
Model Max. current Max. voltage Max. power
3310F 30A 60V 150W
3311F 60A 60V 300W
3312F 12A 250V 300W
3314F 12A 500V 300W
3315F 15A 60V 75W
3330F 60A(CHA) 6A(CHB) 80V(CHA) 80V(CHB) 250W
(CHA)
50W(CHB)
3332F 24A(CHA) 24A(CHB) 80V(CHA) 80V(CHB) 120W(CHA) 120W(CHB)
3336F 3A(CHA) 3A(CHB) 80V(CHA) 80V(CHB) 40W(CHA) 40W(CHB)
3340F 2A 300V 150W
3341F 20A 100V 300W
3342F 2A 500V 300W
33401F 2.4A(CHA) 2.4A(CHB) 500V(CHA) 500V(CHB) 120W(CHA) 120W(CHB)
3341G 24A 300V 300W
3342G 12A 500V 300W
3343G 24A 500V 300W
33401G 6A(CHA) 6A(CHB) 500V(CHA) 500V(CHB) 150W(CHA) 150W(CHB)
