2.14 Remote Controller Option
A wired remote controller (P/No: 9933) can be connected to the mainframe.
Fig 2-8 shows the remote controller socket which is located on the rear panel.
Fig 2-8 3302F Remote controller Connection
2.15 Remote Controller Connection

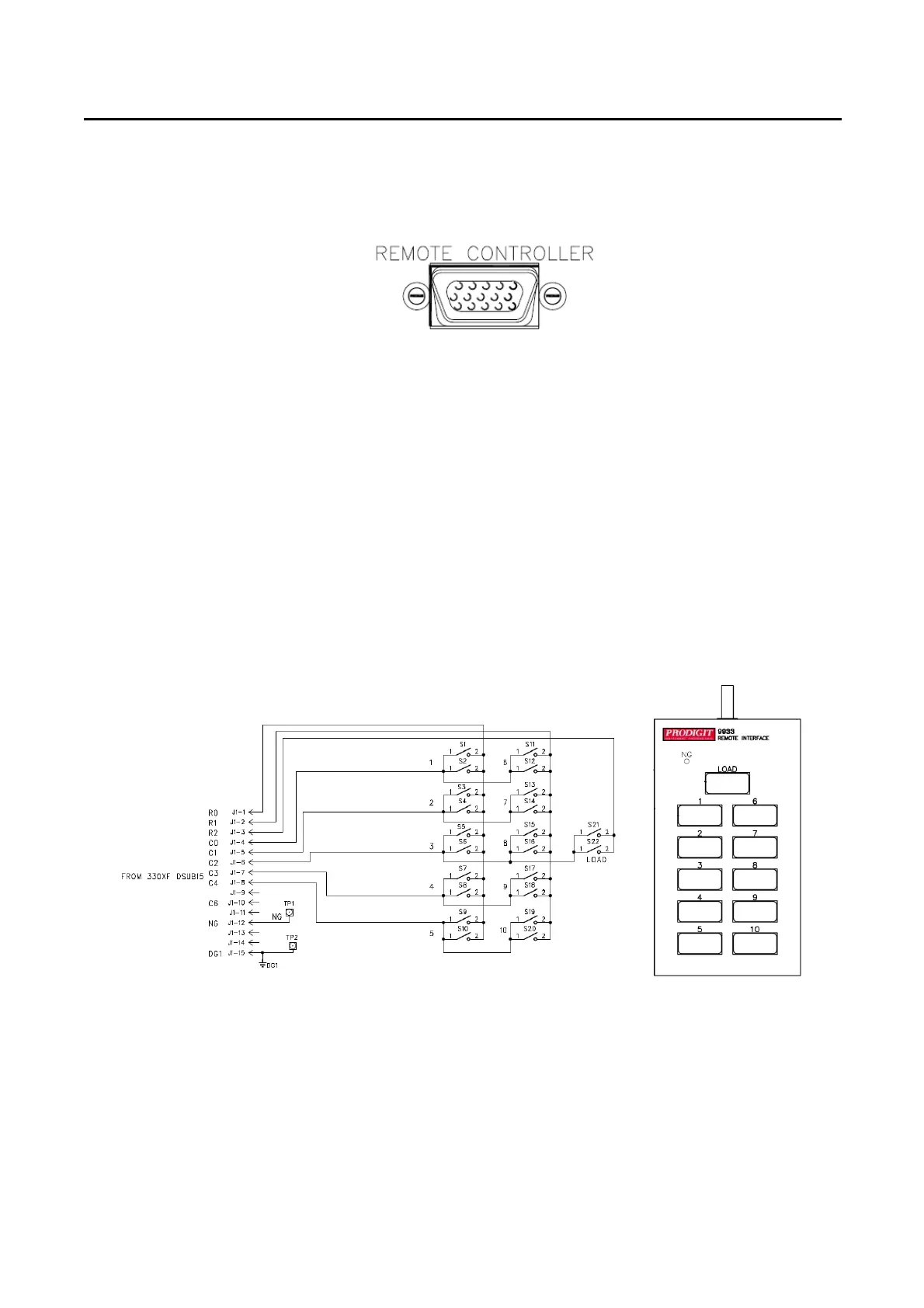

Fig 2-9 shows pin assignments for the DSUB-15 connector when the remote controller option
is fitted to the 3302F mainframe. The remote controller allows the first 10 memory locations to
be recalled. Set ups saved at these memory locations can include dynamic waveforms and
the load ON state.
Note 1: O/P as a set of NG TTL High level signal output.
Note 2: The Load button on the remote controller does not operate for
The 3302F/3305F mainframes, However the Load ON state can be saved as part of
The set up stored in one of the memory locations.
Fig 2-9 Model 9933 Remote controller Connection
