Page 10

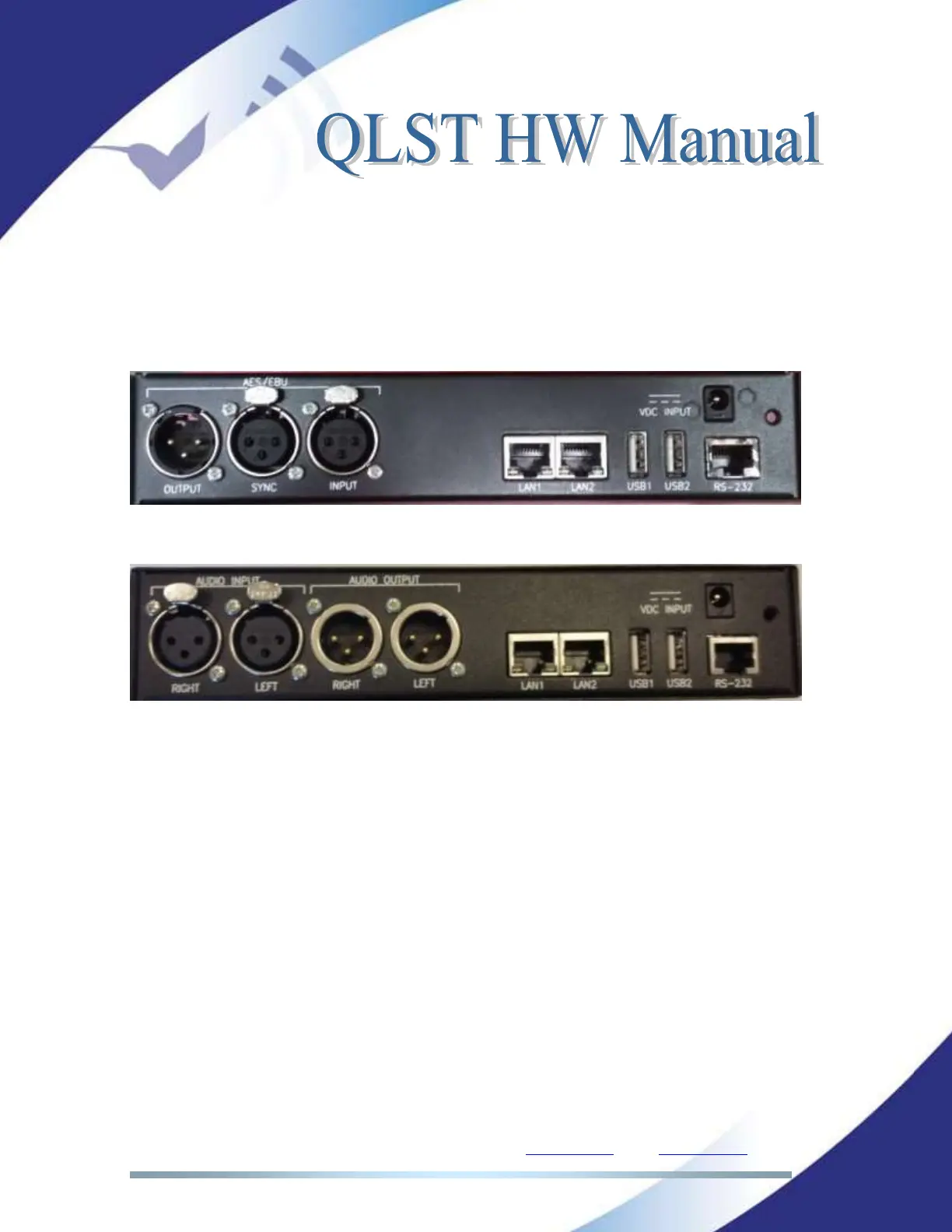

III.2 Rear Panels
There are two different rear panel configuration depending on the kind of
input/ouputs: analog or digital:
Picture 5. QLST rear panel (digital)
Picture 6. QLST rear panel (analog)
III.2.1 Power supply
QLST comes supplied with an AC/DC converter (12 volts output) to be connected
to the power connector <VDC INPUT> located at the rear panel. The power
converter works with an AC input range of 100 to 240 VAC, 50 to 60 Hz.
III.2.2 Audio interfaces
III.2.2.1. Digital audio AES/EBU STEREO input/output
An AES/EBU interface is available via three XLR connectors on the rear panel of
the unit. The central connector provides the option to connect an externally
synchronised signal. The user can select via software if the digital output is to
synchronise with the audio input or with an external sync signal. The connectors
are wired in the following way:
