Page 14

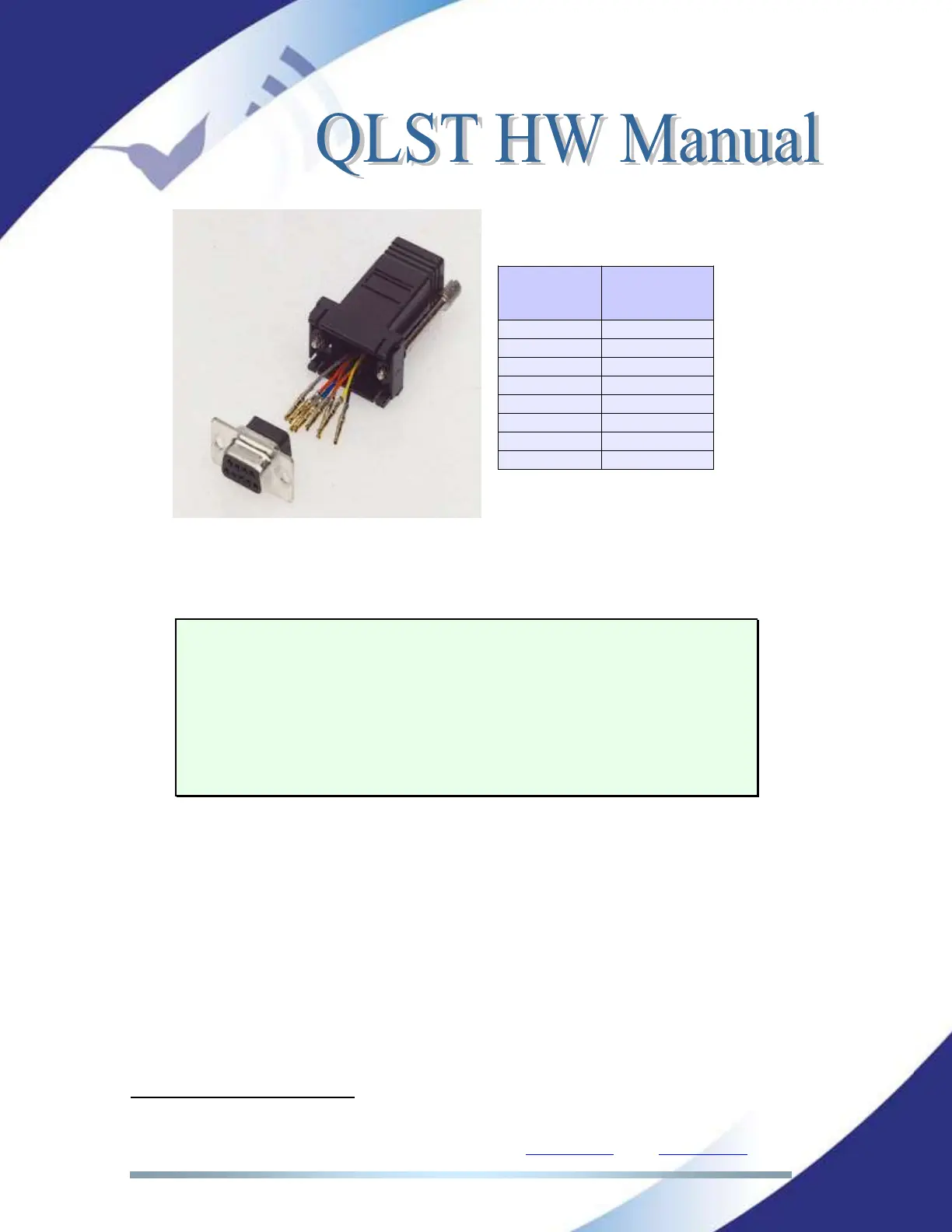

RJ45
Connector
9-pin female
D-sub
Connector
1 (NC)
1
2 (Rx)
3
3 (GND)
5
4 (NC)
4
5 (NC)
6
6 (GND)
7
7 (Tx)
2
8 (NC)
8
1,4,5,8 must be unconnected
The port is always set to 8 DATA bits, NO parity, 1 START bit and 1 STOP bit.
The bit rate can be adjusted to between 300 and 9600 bps via software.
Each QLST acts as a DCE device, therefore the connection to each of the
RS232 ports is wired in the following way:
QLST – Pin 7 connector RJ45.........................Pin 2 PC
QLST – Pin 2 connector RJ45.........................Pin 3 PC
QLST – Pin 3,6 connector RJ45.......................Pin 5 PC
Hardware handshaking signals are ignored.
III.2.4.2. Rear USB slots:
Two USB slots (Host 2.0) are available on the rear side for the connection of
memory storage devices or for future applications.
External storage should be formatted as FAT32
3
. Maximum addressed storage
capacity is 2 TB.
3
NTFS format is not supported
