Page 60
This window also offers the IMEI value of the modem, on the top part of the
window.

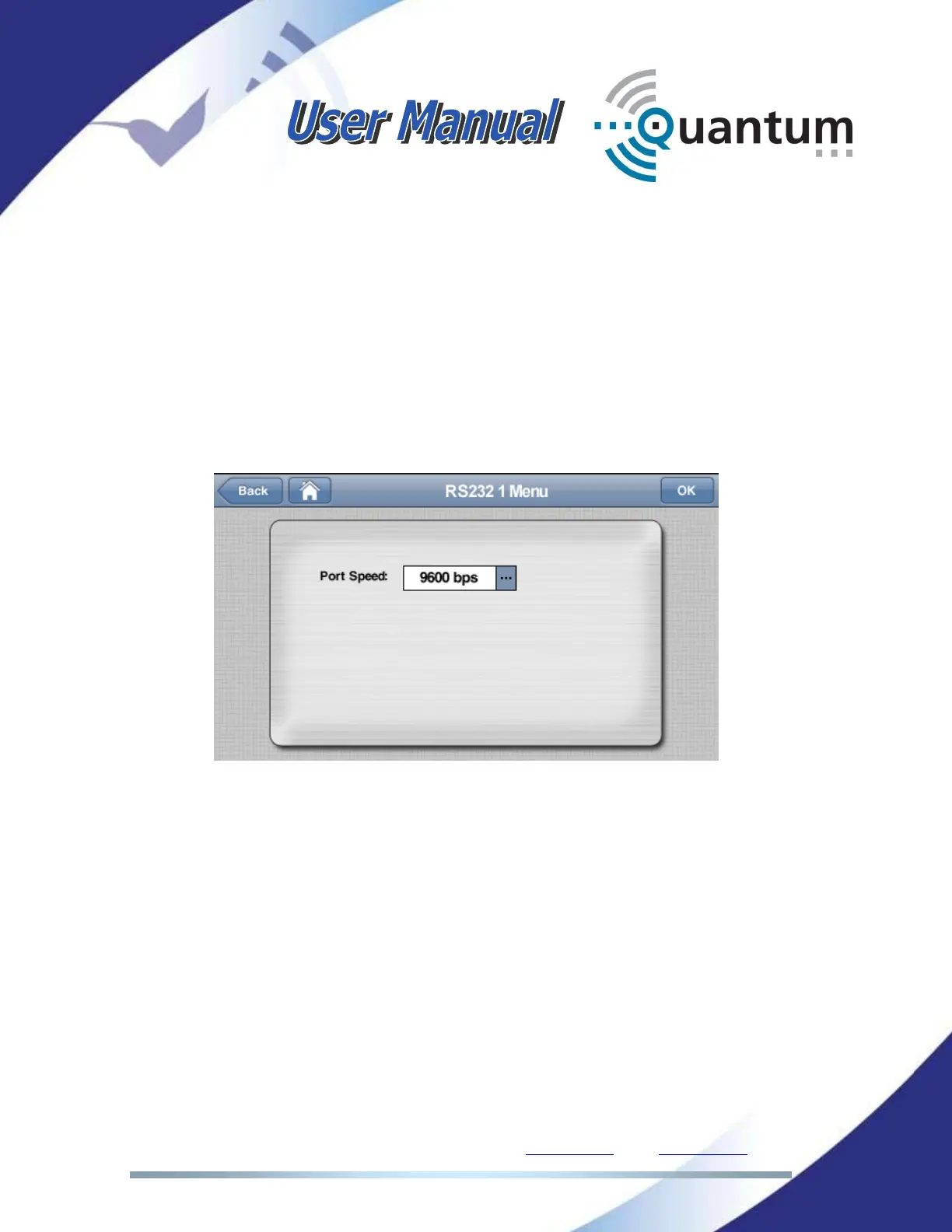

IV.2.2.6. RS232 configuration
An auxiliary serial data channel can be established using the RS232 interface.
The range of speeds ranges from 300 bps to 9600 bps. When the serial interface
is enabled, the user can embed auxiliary data coming from the serial interface
(RS232) into the audio stream. This data will be available at the output of the
serial port at the receiving end.
IV.2.2.7. GPIOs
From this menu the GPIO port is configured. The amount of GPIO available
might be different from one codec to another of Quantum Family, but the
different functions for the GPIO are shared among them.
It is possible to choose the polarity of the GPIs and GPOs. They can be active
Low or active High.
