DSO26 User Manual
19

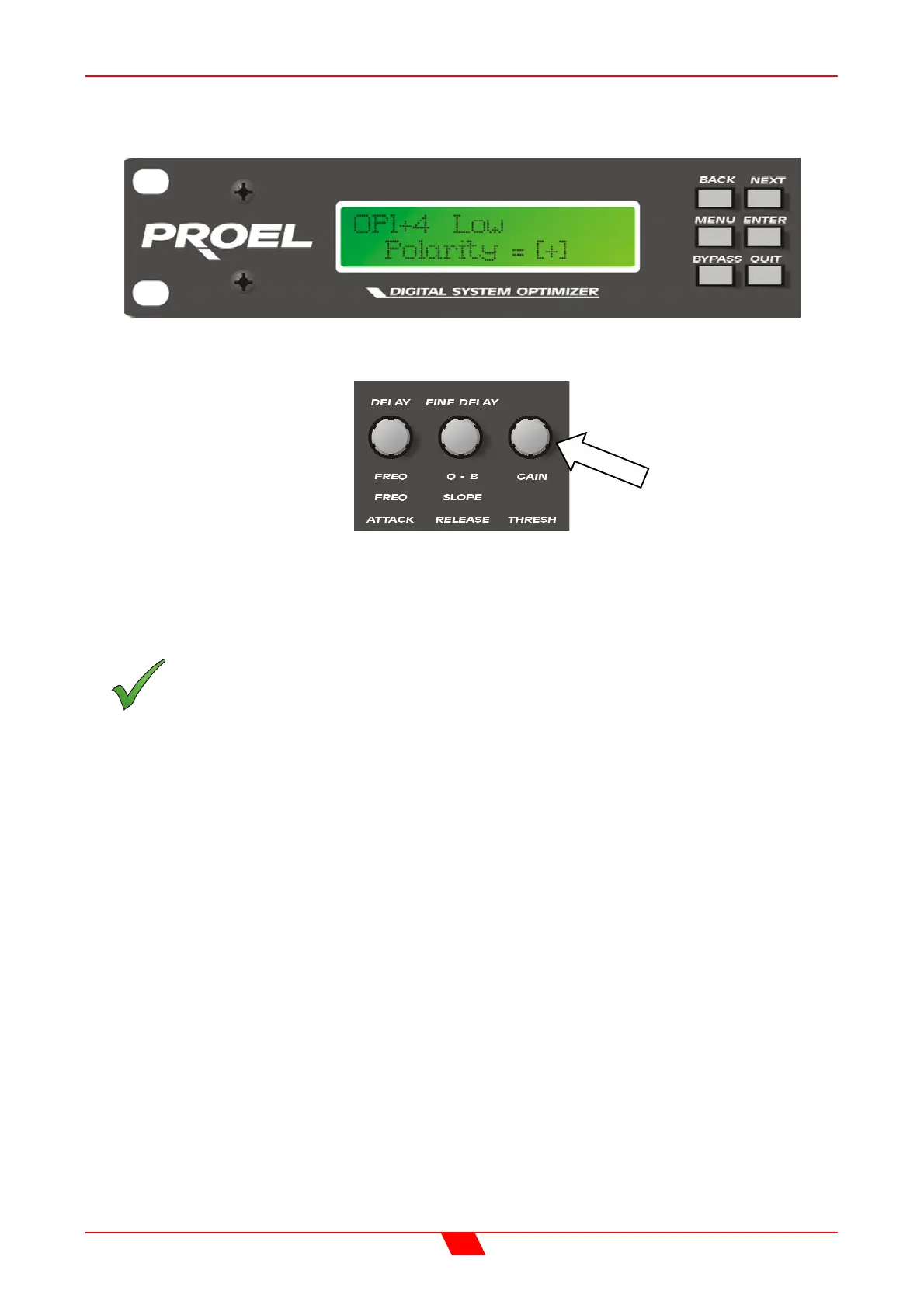

Polarity Screen
To adjust the polarity:
Use the ‘GAIN’ control to switch between + and -.
Each output has an independent polarity screen. This gives the flexibility to reverse (flip by
180°) the phase of individual outputs.
Note: When the outputs are ganged, the polarity screens remain individual.
