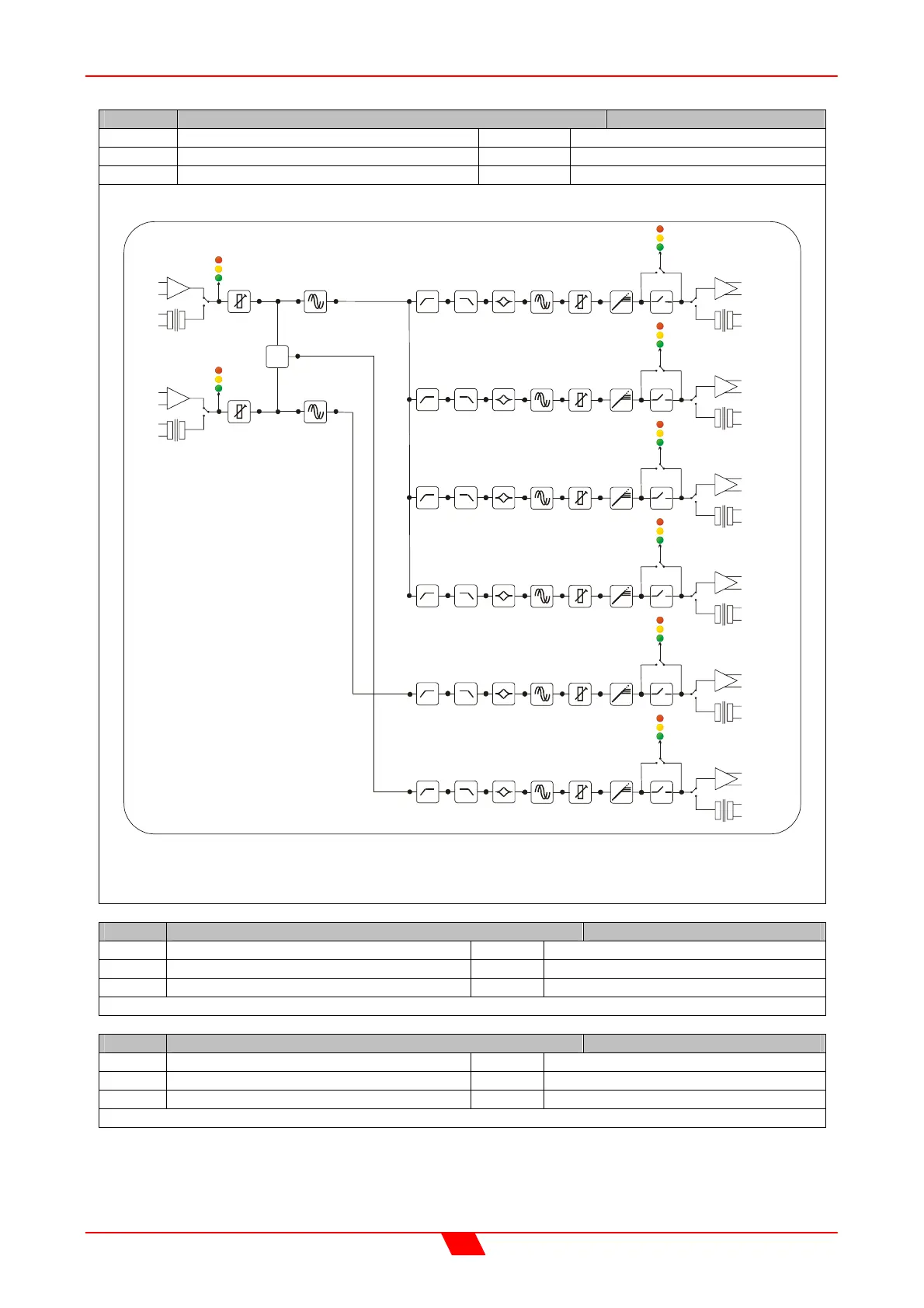

12 EDGE121+218+212A 4 way crossover plus 2 aux’s
Out 1 Low Out 4 Sub
Out 2 Mid Low Out 5 B2Sub
Out 3 Mid High Out 6 Aux
Allowed Sub, B2Sub gain trim and delay time; normal High shelving eq.
HPF LPF
PEQ x 5
DELAY
GAIN
LIMIT MUTE
SELECT
ANALOGUE
DIGITAL
HPF
LPF
PEQ x 5
DELAY GAIN LIMIT MUTE
SELECT
ANALOGUE
DIGITAL
HPF
LPF
PEQ x 5
DELAY GAIN LIMIT MUTE
SELECT
ANALOGUE
DIGITAL
HPF
LPF
PEQ x 5
DELAY GAIN LIMIT MUTE
SELECT
ANALOGUE
DIGITAL
HPF
LPF
PEQ x 5
DELAY GAIN LIMIT MUTE
SELECT
ANALOGUE
DIGITAL
OUTPUT 1
LOW
OUTPUT 2
MID LOW
OUTPUT 3
MID HIGH
OUTPUT 4
SUB
OUTPUT 5
B TO SUB
SELECT
ANALOGUE
DIGITAL
INPUT
A
GAIN
MAIN DELAY
SUM
Σ
GAIN
MAIN DELAY
SELECT
ANALOGUE
DIGITAL
INPUT
B
HPF LPF
PEQ x 5
DELAY GAIN LIMIT MUTE
SELECT
ANALOGUE
DIGITAL
OUTPUT 6
AUXILIARY
AES/EBU Digital input and output interfaces are available as an option (factory fitted only).
Input and output balancing transformers are also available as an option (factory fitted only).
13 EDGE121SP+212P B 2x3 way crossover
Out 1 Sub Out 4 Sub
Out 2 Mid Out 5 Mid
Out 3 High Out 6 High
Allowed Sub gain trim and delay time; increased High shelving eq.
14 EDGE218SP+212P B 2x3 way crossover
Out 1 Low Out 4 Low
Out 2 Mid Out 5 Mid
Out 3 High Out 6 High
Allowed Low gain trim and delay time; increased High shelving eq.
