PROEL Freepass6 - Connections (Fig.3); Configuration Example (Fig.4); Connessioni (Fig.3); Esempio Configurazione (Fig.4)

6
LINE IN
Jack (bilanciato)
LINE IN
Jack (balanced)
sleeve - ground
p - hot
ring - cold
MIC INPUT
XLR bilanciato maschio
MIC INPUT
Balanced male XLR
ground
hot
cold
INPUT B, REC OUTPUT
RCA (sbilanciato)
INPUT B, REC OUTPUT
RCA (unbalanced)
ground
hot
LINE IN, PRE OUT
Jack (sbilanciato)
LINE IN, PRE OUT
Jack (unbalanced)
USCITA ALTOPARLANTISPEAKER OUTPUT
note: use the power cable supplied nota: usare il cavo di potenza fornito
ground
p - hot
*nota: conneere insieme 2 e 3
per cavi da bilanciato a sbilanciato
*note: connect both 2 and 3 to
make cable from balanced to unbalanced

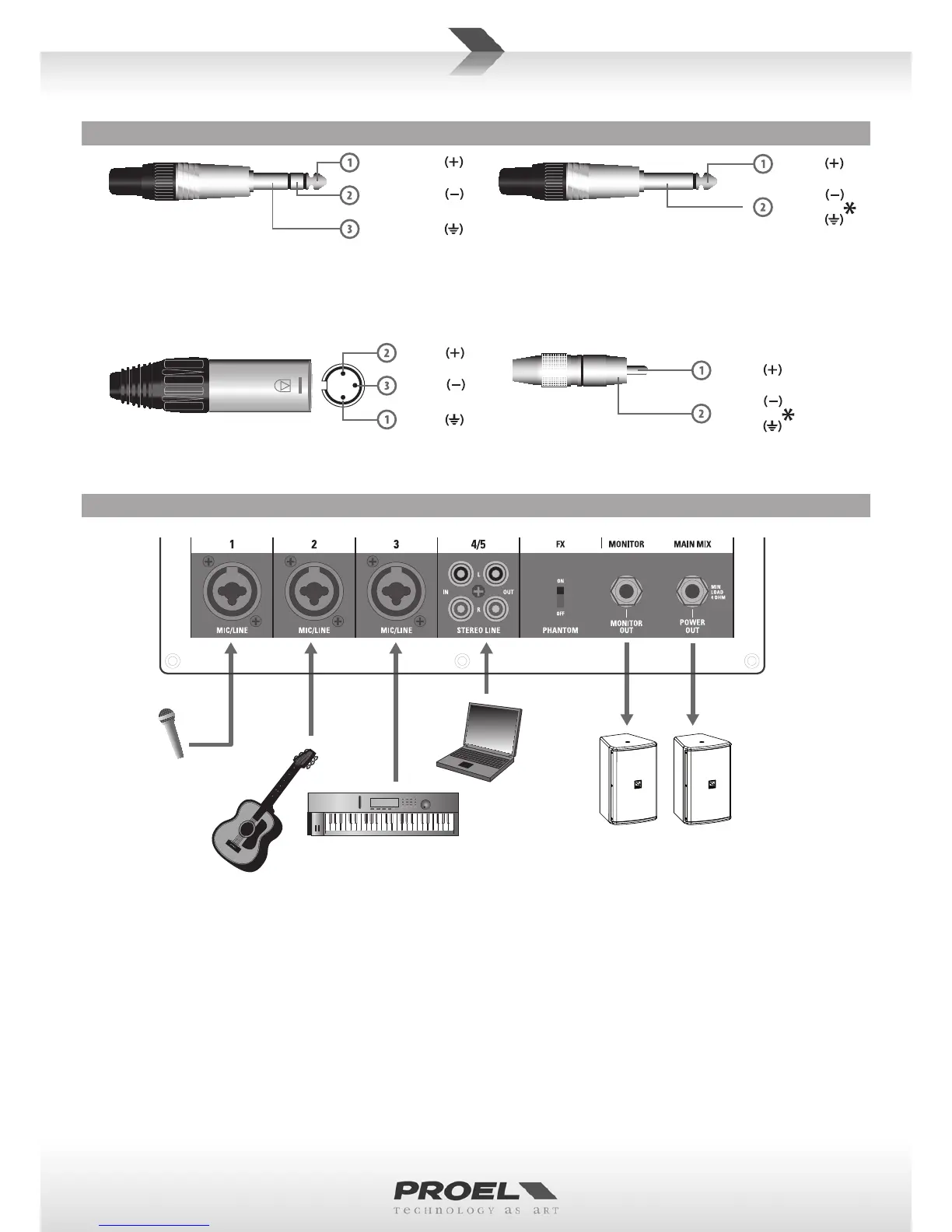

CONNECTIONS (FIG.3)
CONNESSIONI (FIG.3)
CONFIGURATION EXAMPLE (FIG.4) ESEMPIO CONFIGURAZIONE (FIG.4)
KEYBOARD
GUITAR
VOCAL MIC
PERSONAL
COMPUTER
LT6A or other
acve speaker
LT6P or other
passive speaker
(75W applicable power and
4 ohm minimum impedance)
