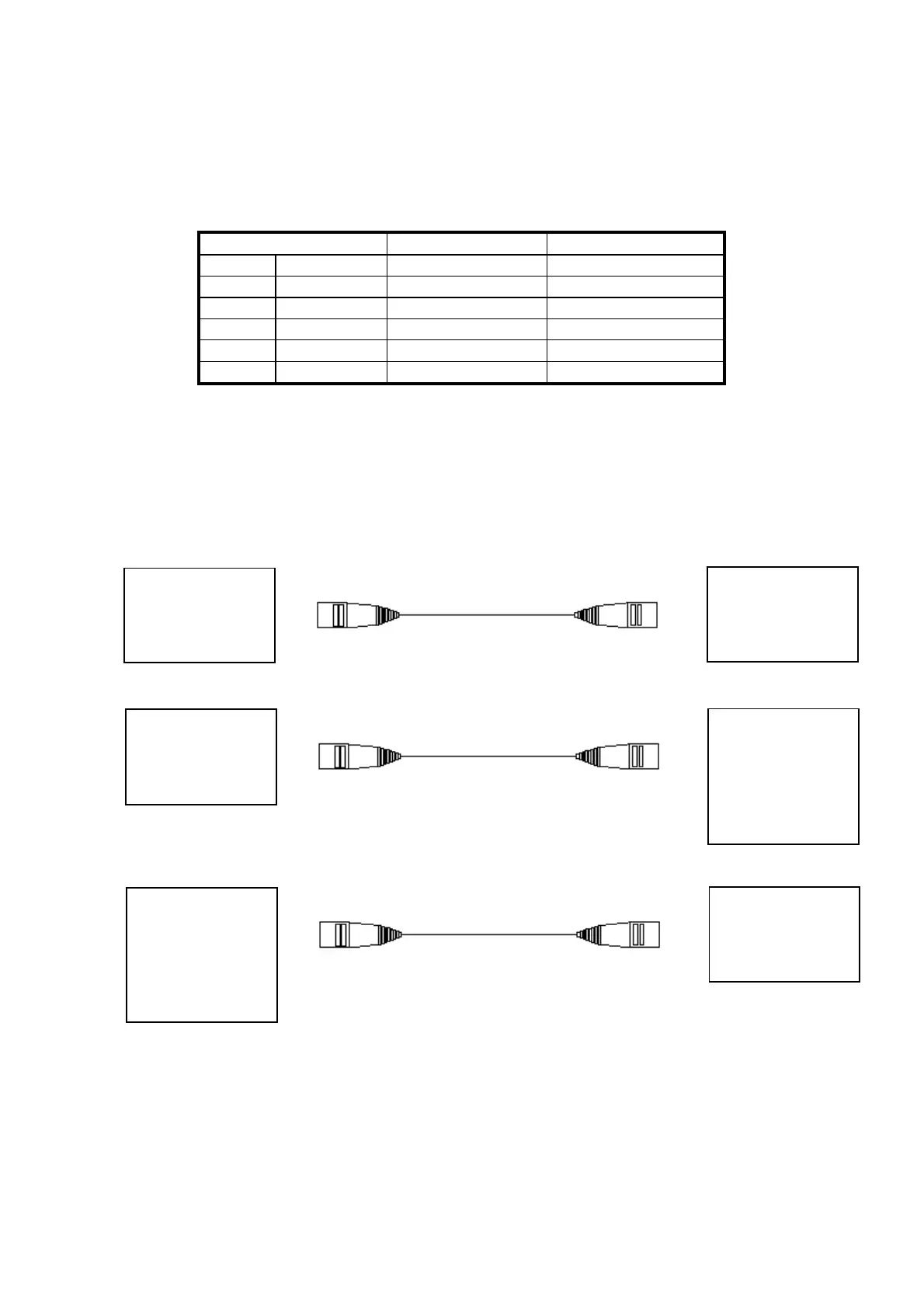

CONTROL CHANNELS
The BUG TUBE PAR64 moving head uses international standard DMX512 signal.
There are 6 control channels and the detailed information of control is as follow:
Channel
DMX value
Control
1
DIMMER
0 - 255
0 – 100%
2
STROBE
0 - 255
slow - fast
3
PAN
0 - 255
0 – 540°
4
TILT
0 - 255
0 – 180°
5
PAN fine
0 - 255
16 Bit
6
TILT fine
0 - 255
16 Bit
APPENDIX 1:
The transformation between 3 core and 5 core XLR plug
3 pin (male)
PIN1: GND
PIN2: Signal +
PIN3: Signal -
3 pin (female)
PIN1: GND
PIN2: Signal +
PIN3: Signal -
3 pin (male)
PIN1: GND
PIN2: Signal +
PIN3: Signal -
5 pin (female)
PIN1: GND
PIN2: Signal +
PIN3: Signal –
PIN4: ----
PIN5: ----
5 pin (male)
PIN1: GND
PIN2: Signal +
PIN3: Signal –
PIN4: ----
PIN5: ----
3 pin (female)
PIN1: GND
PIN2: Signal +
PIN3: Signal -
