ProFlo 500 - Pro Flo 500 Slpt

SYSTEM OWNER’S MANUAL
Inlet
20”
Pretreatment
Riser
Warning Light
397 Gal.
Pretreatment
4”
Pretreatment
Outlet Baffle
620 Gal.
Aeration Chamber
Air Diffuser
45°
Slope
219 Gal.
Clarifier
Mute Switch
768 Gal.
Pump Tank
Clarifier Access
Aerator Cover
Aerator
Outlet
Baffle
#/4” PVC
Pipe
Control
Panel
Pro Flo 500 SLPT
2
4
Pro Flo 500 SLPT
2

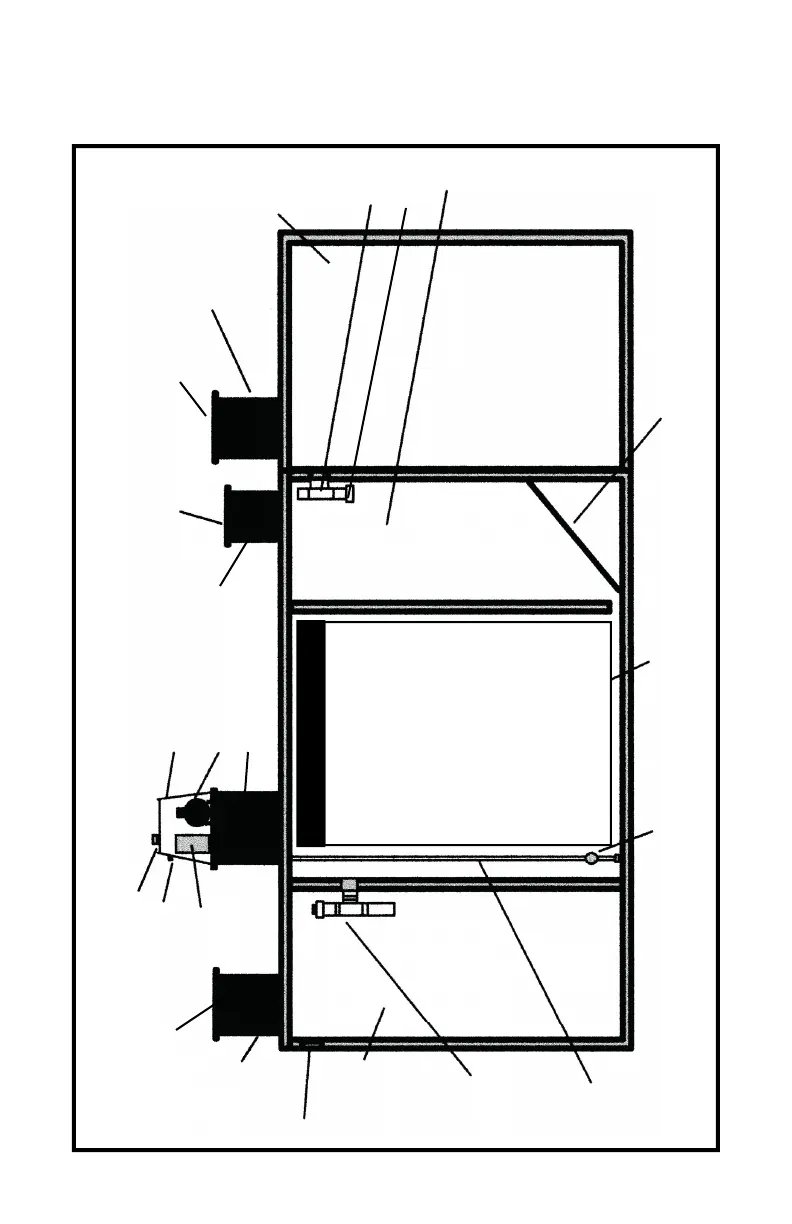

System Diagram
20” Pump Tank
Riser
SPECIFICATIONS
Overall Length ....................... 159”(t) - 155”(b)
Overall Width ............................ 68”(t) - 64”(b)
Height without Risers ............................... 71”
Exter ior Wall Thickness .............................. 3”
Interior Wall Thickness ................... 2”(t) - 3”(b)
Top Thic kness .. ... ... .... ... .... ... .... .... ... .... ... .... 5”
Bottom Thickness ...................................... 3”
Pretreatment Length ............ 29!/4”(t) - 26#/4”(b)
Aeration Length ........................ 44”(t) - 43”(b)
Clarifier Length .................... 18!/2”(t) - 17!/2”(b)
Pump Tank .......................... 55!/4”(t) - 52#/4”(b)
Water Level ............................................. 55”
Air Diffuser ............................................... 27”
Bottom of Inlet to Bottom of Tank ............ 60!/2”
Total Tank Weight (Empty) ............ 17,710* lbs
(t) = Top Dimension - (b) = Bottom Dimension
*Actual Scaled Weight
Drawing Not to Scale
NOTE: Unit tested did not have affixed pump tank All Gallonage Approximate
Pump Tank Access
Configurations may var y.
Pro Flo 500 SLPT
2
GPD Unit
NOTE: If the wall between the Clarifier and Aeration
Chamber is a drop-in wall, the thickness shall be 2!/2”
20” Aeration Riser
Solids
Deflector
Pretreatment
Access
16” Clarifier
Riser
