ProFlo 500 - Pro Flo 800 Ptsl Treatment System Diagram

SYSTEM OWNER’S MANUAL
Inlet
Warning Light
768 Gal.
Pretreatment
Chamber
913 Gal.
Aeration Chamber
Air Diffuser
45°
Slope
304 Gal.
Clarifier
Mute Switch
Outlet
16” Clarifier
Riser
Aerator Cover
Aerator
Outlet
Baffle
#/4” PVC Pipe
Control
Panel
Pro Flo 800 PTSL
SPECIFICATIONS
9

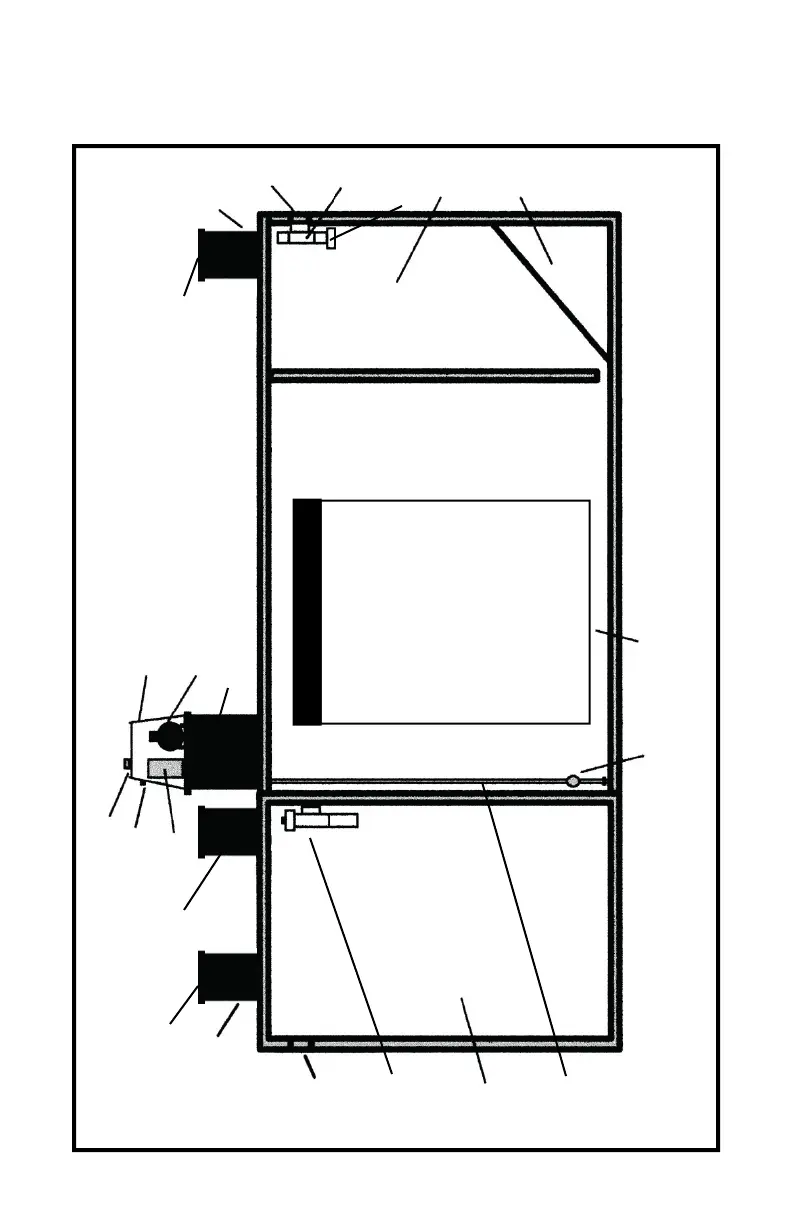

Pro Flo 800 PTSL System Diagram
Overall Length................ 159”(t) - 155”(b)
Overall Width ...................... 68”(t) - 64”(b)
Height without Risers ......................... 71”
Exterior Wall Thickness ........................ 3”
Interior Wall Thickness ........... 2”(t) - 3”(b)
Top Thickness ...................................... 5”
Bottom Thickness ................................. 3”
Pretreatment Length .... 55 !/4”(t) - 52#/4”(b)
Aeration Length............ 64!/2”(t) - 63!/2”(b)
Clarifier Length ............ 29 !/4”(t) - 26#/4”(b)
Water Level ........................................ 55”
Air Diffuser ......................................... 27”
Bottom of Inlet to Bottom of Tank .... 60!/2”
Total Tank Weight (Empty) .... 18,300* lbs
(t) = Top Dimension - (b) = Bottom Dimension
4”
Pretreatment
Outlet
Baffle
*Actual Scaled Weight
Pump Tank Sold Separately (Not Shown)
Drawing Not to Scale All Gallonage Approximate
16” Pretreatment
Riser
16” Riser
Configurations may vary.
Pro Flo 800 PTSL GPD Unit
NOTE: If the wall between the Clarifier and Aeration
Chamber is a drop-in wall, the thickness shall be 2!/2”
Clarifier
Access
Pretreatment
Access
20” Aeration Riser
Solids
Deflector
