ProFlo 500 - Pro Flo Wastewater Treatment System Diagrams; General System Diagram and Model Overview

SYSTEM OWNER’S MANUAL

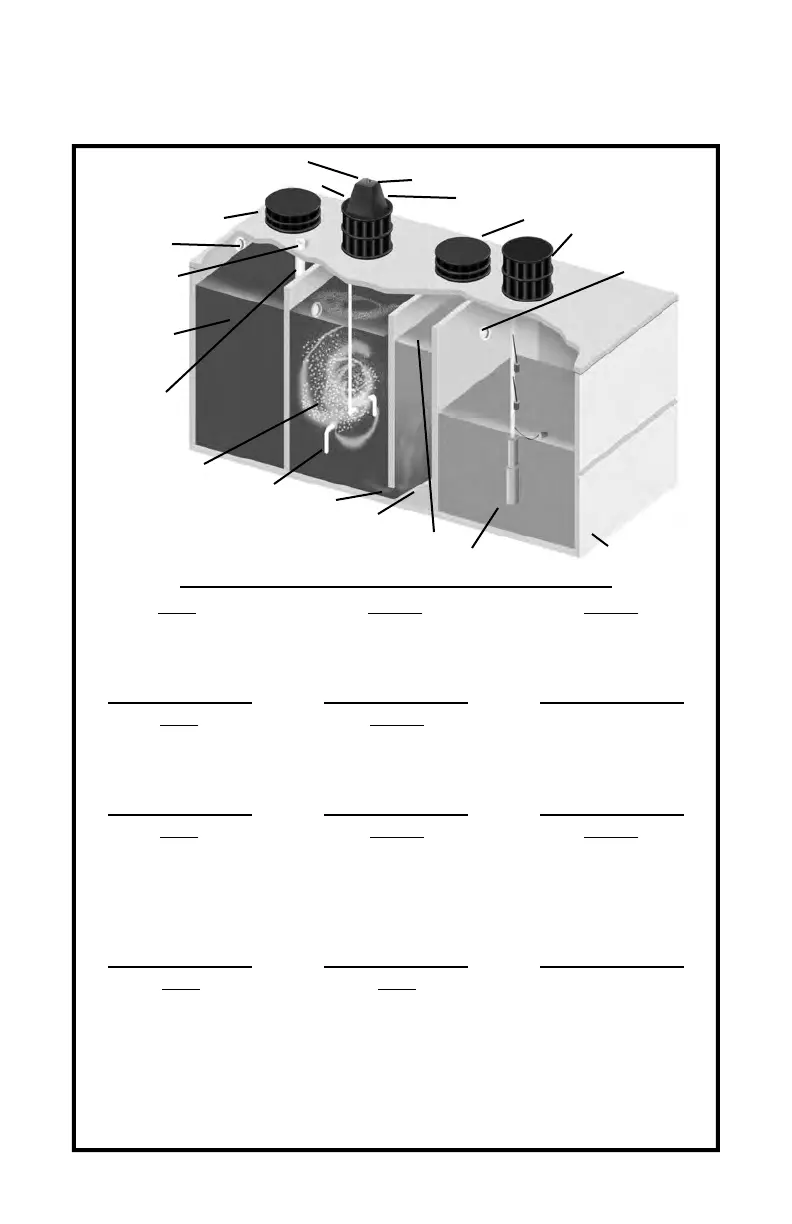

Pro Flo Treatment System Diagram
2
Drawing Not to Scale All Gallonage Approximate
Configurations may vary.
Inspection Cap
Inlet
Pretreatment Access
Warning Light
Pretreatment
Chamber
4”
Pretreatment
Outlet Baffle
Aeration
Chamber
Air Diffuser
45° Slope
4” Gap
Clarifier
Mute Switch
Pump Tank
Outlet
Pump Tank Riser
& Access
Clarifier Access
Aeration Access
Aerator Cover
Submersible Pump
Model of:
500 SLPT
2
This Model has affixed
768 gallon pump tank
(optional)
(NOTE: SYSTEM TESTED DID NOT
HAVE AFFIXED PUMP TANK.)
500 SL
2
397 – Gallon Pretreatment Tank
620 – Gallon Aeration Chamber
219 – Gallon Clarifier Chamber
*Pump Tank Sold Separately
600 SL
447 – Gallon Pretreatment Tank
748 – Gallon Aeration Chamber
268 – Gallon Clarifier Chamber
*Pump Tank Sold Separately
800 SL
*Pretreatment Tank Sold Separately
(Pro Flo recommends the pretreatment
tank be no smaller than 550 gallons)
913 – Gallon Aeration Chamber
304 – Gallon Clarifier Chamber
*Pump Tank Sold Separately
1000 S
*Pretreatment Tank Sold Separately
(Pro Flo recommends the pretreatment
tank be no smaller than 800 gallons)
1109 – Gallon Aeration Chamber
371 – Gallon Clarifier Chamber
* Pump Tank Sold Separately
500 SLPT
5
396 – Gallon Pretreatment Tank
620 – Gallon Aeration Chamber
224 – Gallon Clarifier Chamber
503 – Gallon Pump Tank
600 SLPT
447 – Gallon Pretreatment Tank
748 – Gallon Aeration Chamber
268 – Gallon Clarifier Chamber
796 – Gallon Pump Tank
800 PTSL
5
503 Gallon Pretreatment Tank affixed
911 – Gallon Aeration Chamber
317 – Gallon Clarifier Chamber
*Pump Tank Sold Separately
*Pump Tank Sold Separately
500 SLPT
2
397 – Gallon Pretreatment Tank
620 – Gallon Aeration Chamber
219 – Gallon Clarifier Chamber
768 – Gallon Pump Tank
600 SLPT
447 – Gallon Pretreatment Tank
748 – Gallon Aeration Chamber
268 – Gallon Clarifier Chamber
796 – Gallon Pump Tank
800 PTSL
768 Gallon Pretreatment Tank affixed
913 – Gallon Aeration Chamber
304 – Gallon Clarifier Chamber
*Pump Tank Sold Separately
*Pump Tank Sold Separately
1500 S
*Pretreatment Tank Sold Separately
(Pro Flo recommends the pretreatment
tank be no smaller than 1125 gallons)
1657 – Gallon Aeration Chamber
540 – Gallon Clarifier Chamber
* Pump Tank Sold Separately
