ProFlo 500 - Specific Model Diagrams and Specifications

SYSTEM OWNER’S MANUAL
Inlet
Pretreatment
Access
Warning Light
397 Gal.
Pretreatment
4”
Pretreatment
Outlet Baffle
620 Gal.
Aeration Chamber
Air Diffuser
45°
Slope
219 Gal.
Clarifier
Mute Switch
Outlet
Clarifier Access
Aerator
Cover
Aerator
Outlet
Baffle
#/4” PVC
Pipe
Control
Panel
Pro Flo 500 SL
2
SPECIFICATIONS
3
Pro Flo 500 SL
2

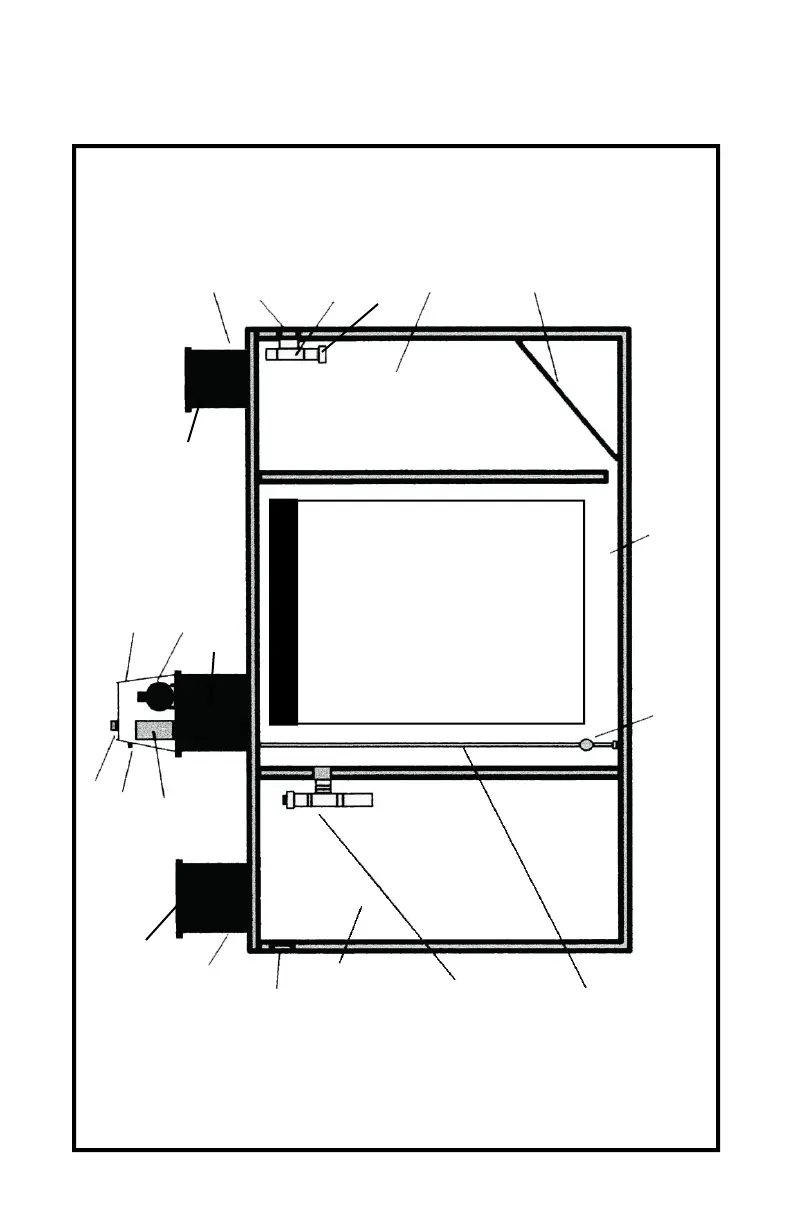

System Diagram
Overall Length............ 101 #/4”(t) - 99!/4”(b)
Overall Width ...................... 68”(t) - 64”(b)
Height without Risers ......................... 71”
Exterior Wall Thickness ........................ 3”
Interior Wall Thickness ........... 2”(t) - 3”(b)
Top Thickness ...................................... 5”
Bottom Thickness ................................. 3”
Pretreatment Length .... 29 !/4”(t) - 26#/4”(b)
Aeration Length.................. 44”(t) - 43”(b)
Clarifier Length ............ 18!/2”(t) - 17!/2”(b)
Water Level ........................................ 55”
Air Diffuser ......................................... 27”
Bottom of Inlet to Bottom of Tank .... 60!/2”
Total Tank Weight (Empty) .... 12,040* lbs
(t) = Top Dimension - (b) = Bottom Dimension
*Actual Scaled Weight
Pump Tank Sold Separately (Not Shown)
Dra wing Not to Scale All Gallonage Approximate
20” Pretreatment
Riser
16” Clarifier
Riser
Configurations may var y.
Pro Flo 500 SL
2
GPD Unit
NOTE: If the wall between the Clarifier and Aeration
Chamber is a drop-in wall, the thickness shall be 2!/2”
20” Aeration Riser
Solids
Deflector
