ProFlo 500 - Pro Flo 600 Sl Treatment System Diagram

SYSTEM OWNER’S MANUAL
Inlet
20”
Pretreatment
Riser
Warning Light
447 Gal.
Pretreatment
4”
Pretreatment
Outlet Baffle
748 Gal.
Aeration Chamber
Air Diffuser
45°
Slope
268 Gal.
Clarifier
Mute Switch
Outlet
Clarifier Access
Aerator
Cover
Aerator
Outlet
Baffle
#/4” PVC
Pipe
Control
Panel
SPECIFICATIONS
6

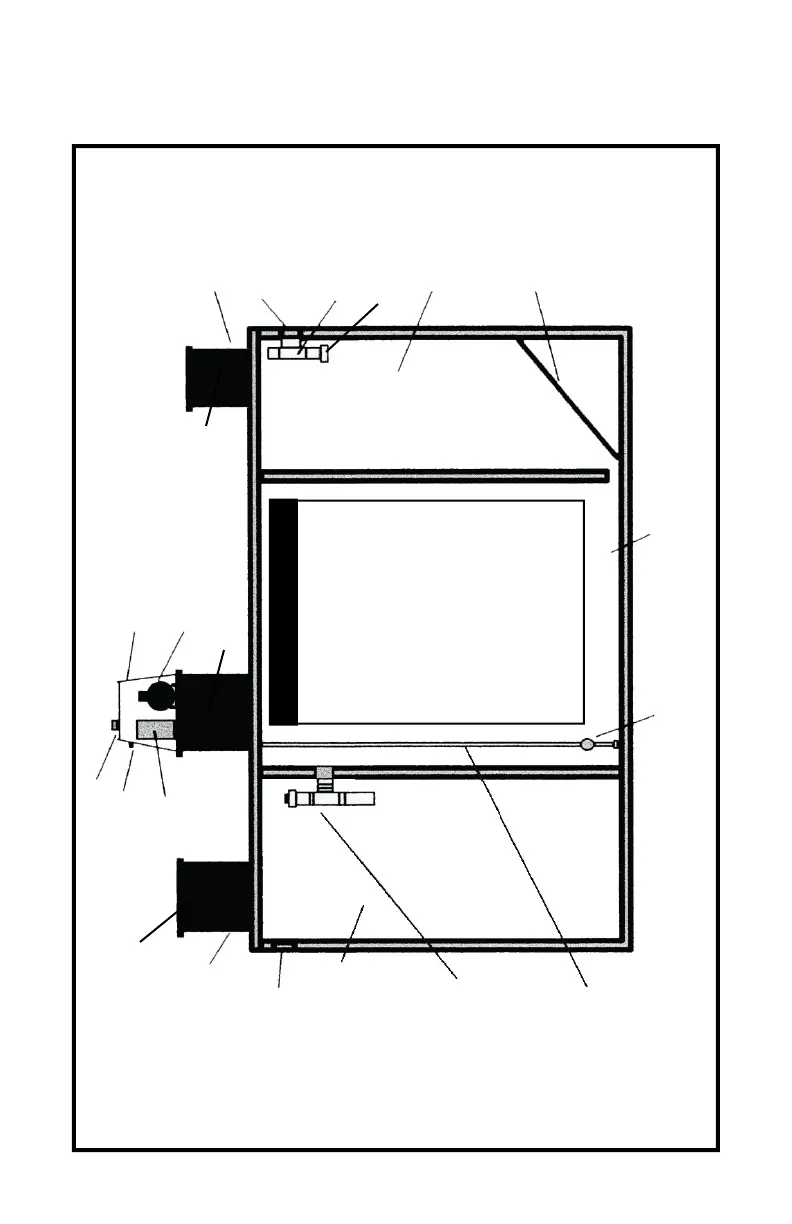

Pro Flo 600 SL System Diagram
Pretreatment
Access
Overall Length............ 119#/4”(t) - 117!/4”(b)
Overall Width ....................... 68”(t) - 64”(b)
Height without Risers ........................... 72”
Exterior Wall Thickness .......................... 3”
Interior Wall Thickness ............ 2”(t) - 3”(b)
Top Thickness ........................................ 5”
Bottom Thickness ................................... 3”
Pretreatment Length ...... 32#/4 ”(t) - 30!/4”(b)
Aeration Length................... 53”(t) - 52”(b)
Clarifier Length ................... 24”(t) - 23”(b)
Water Level .......................................... 55”
Air Diffuser ........................................... 27”
Bottom of Inlet to Bottom of Tank ......... 61”
Total Tank Weight (Empty) ...... 13,130* lbs
(t) = Top Dimension - (b) = Bottom Dimension
*Actual Scaled Weight
Pump Tank Sold Separately (Not Shown)
Dra wing Not to Scale All Gallonage Approximate
Pro Flo 600 SL
20” Aeration Riser
Solids
Deflector
16” Clarifier Riser
Configurations may var y.
Pro Flo 600 SL GPD Unit
NOTE: If the wall between the Clarifier and Aeration
Chamber is a drop-in wall, the thickness shall be 2!/2”
