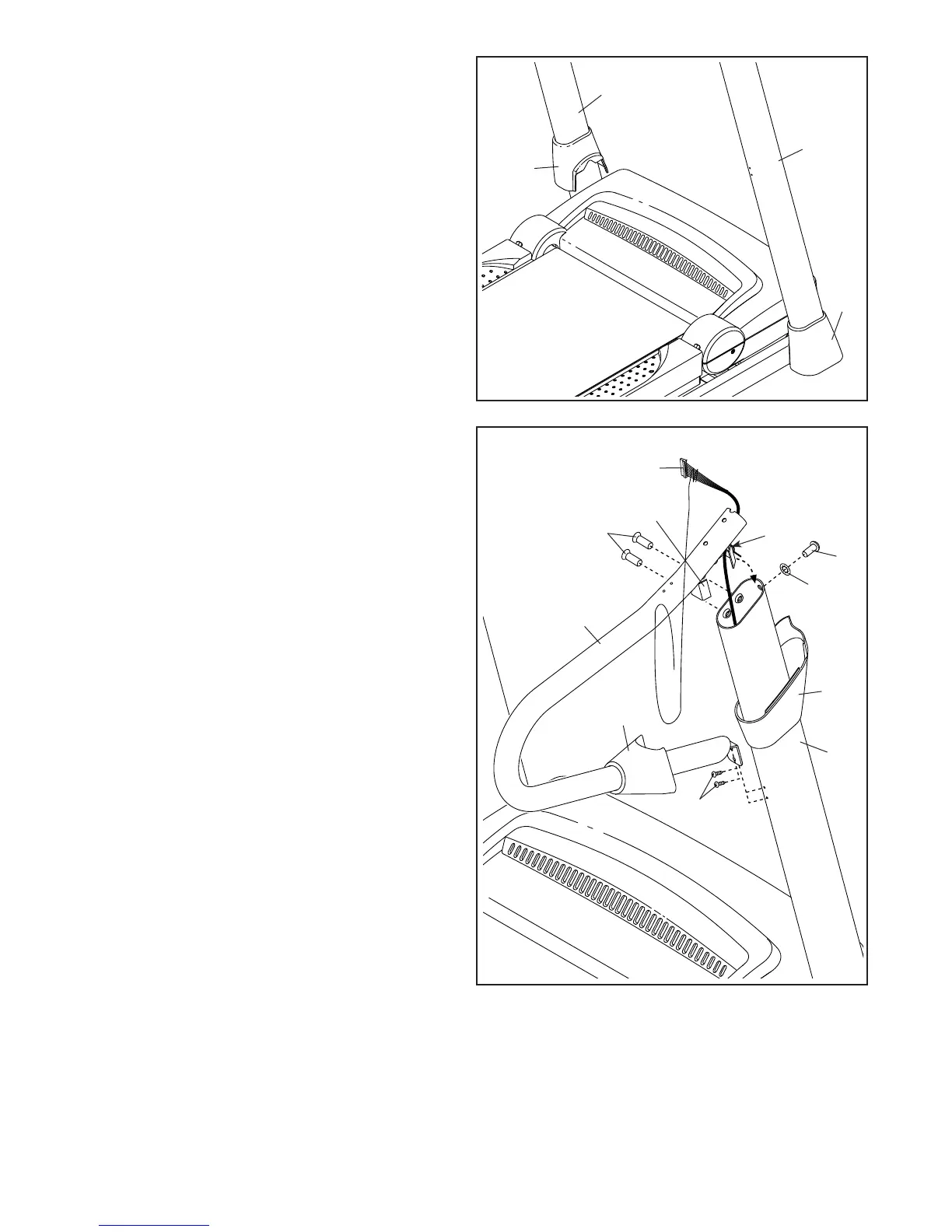

9. Remove the tie from the indicated bracket on the
Right Handrail (83). If necessary, press the 5/16"
Cage Nut (38) back into place.
Orient the Right Upright Cover (86) as shown,
and slide it onto the Right Upright (85). Next,
orient a Handrail Cap (81) as shown, and slide it
onto the Right Handrail (83).
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87) through
the indicated bracket on the Right Handrail.
Pull the Upright Wire out of the end of the Right
Handrail.
Position the Right Upright Cover (86) as
shown. Attach the Right Handrail (83) to the
Right Upright (85) with two 5/16" x 1" Flat Head
Screws (3), a 5/16" x 1" Bolt (4) with a 5/16" Star
Washer (13), and two #8 x 3/4" Screws (1). Do
not tighten the Bolt or the Screws yet.
Attach the Left Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
38
83
Bracket
3
4
13
86
85
1
81
87
9
8. Identify the Left Base Cover (88) and the Right
Base Cover (91). Slide the Left Base Cover onto
the Left Upright (84). Slide the Right Base Cover
onto the Right Upright (85).
91
85
84
88
8
To Next Page
