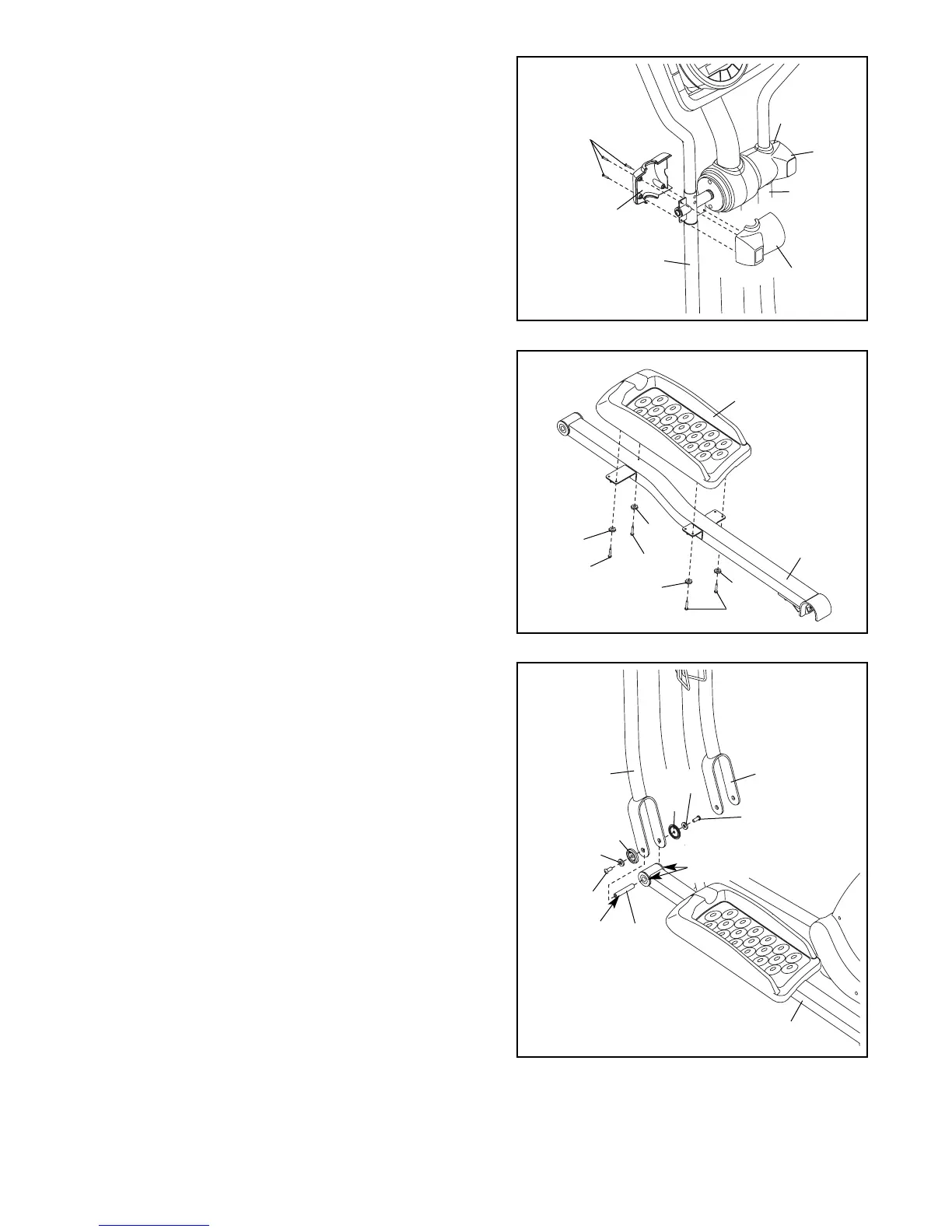

10
11. Hold the Left Front Handlebar Cover (18) and the Left
Rear Handlebar Cover (19) around the Left Upper
Body Arm (11). Attach the Handlebar Covers with
three M4 x 32mm Round Head Screws (105).
Attach the Right Front Handlebar Cover (20) and
the Right Rear Handlebar Cover (21) around the
Right Upper Body Arm (12) in the same way.
20
21
105
12
19
11
18
11
12. Identify the Left Pedal (13) and the Left Pedal Leg
(14), which are marked with stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
with an M4 x 45mm Screw (108), three M4 x 14mm
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right
Pedal Leg (not shown) in the same way.
13
14
104
104
112
112
112
112
108
12
13. Apply a thin film of grease to one of the Pedal Leg
Axles (32) and to the faces of the two Pedal Leg
Bushings (33) in the Left Pedal Leg (14).
Next, slide an M8 Washer (88) and a Pedal Leg
Cover (31) onto an M8 x 23mm Shoulder Screw
(115), and turn the Shoulder Screw a few turns into
the Pedal Leg Axle (32).
While another person holds the front end of the Left
Pedal Leg (14) inside of the bracket on the Left Upper
Body Arm (11), insert the Pedal Leg Axle (32) into
both parts. Next, slide an M8 Washer (88) and a
Pedal Leg Cover (31) onto another M8 x 23mm
Shoulder Screw (115), and turn the Shoulder Screw a
few turns into the Pedal Leg Axle. Tighten both
Shoulder Screws.
Repeat this step to attach the Right Pedal Leg (not
shown) to the Right Upper Body Arm (12).
Grease
13
115
32
88
31
12
11
31
14
88
33
Grease
115
To Next Page
