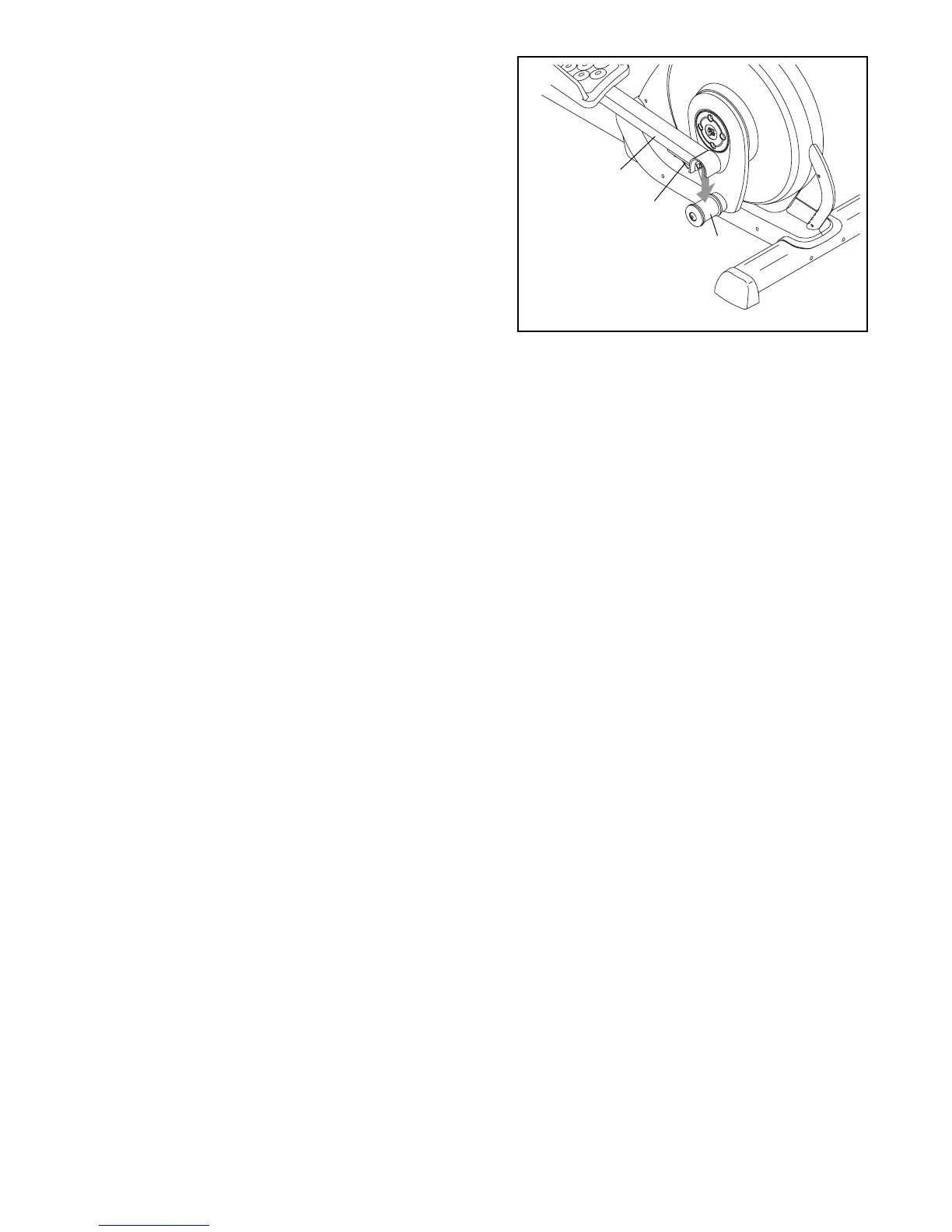

14. Lift the latch on the underside of the Left Pedal Leg
(14), and set the Left Pedal Leg on the left Crank
Bushing Sleeve (43). Release the lever, and make
sure that the Left Pedal Leg is securely connected to
the Crank Bushing Sleeve.
Connect the Right Pedal Leg (not shown) in the
same way.
See step 5. Tighten the M8 x 69mm Button Bolt
(80) and the two M8 x 23mm Button Screws (84).
15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Latch
14
43
14
To Next Page
