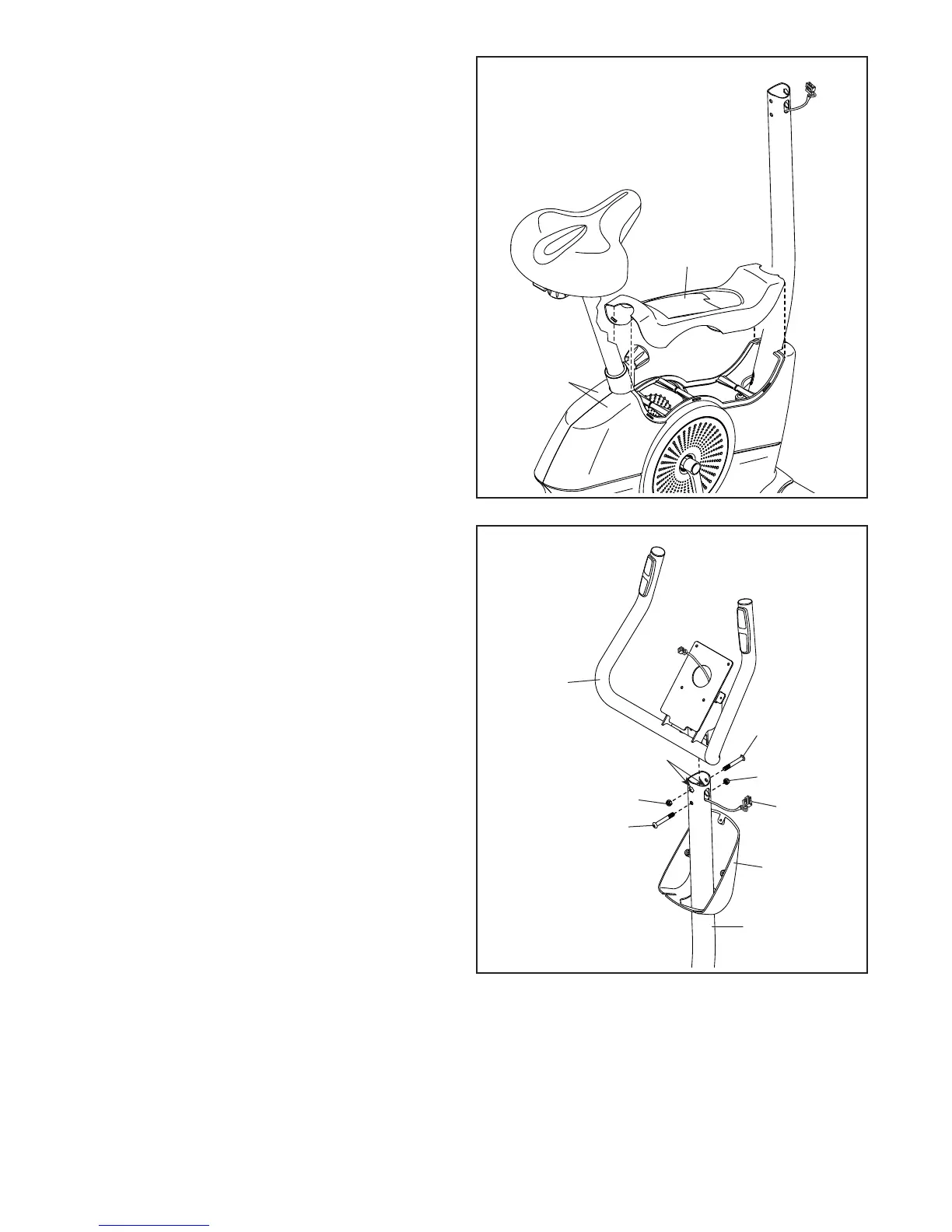

9. Orient the Console Cover (3) as shown, and
slide it onto the Upright (27).
Tip: Avoid pinching the Main Wire (25). Insert
the Handlebar (4) into the Upright (27).
Attach the Handlebar (4) with two M8 x 58mm
Bolts (24) and two M8 Locknuts (17). Make
sure that the Locknuts are in the hexagonal
holes (G).
8. Orient the Shield Cover (26) as shown, and
press it onto the Left and Right Shields (37, 58).
24
24
17
17
25
G
3
27
4
Avoid pinching
the Main Wire (25)
