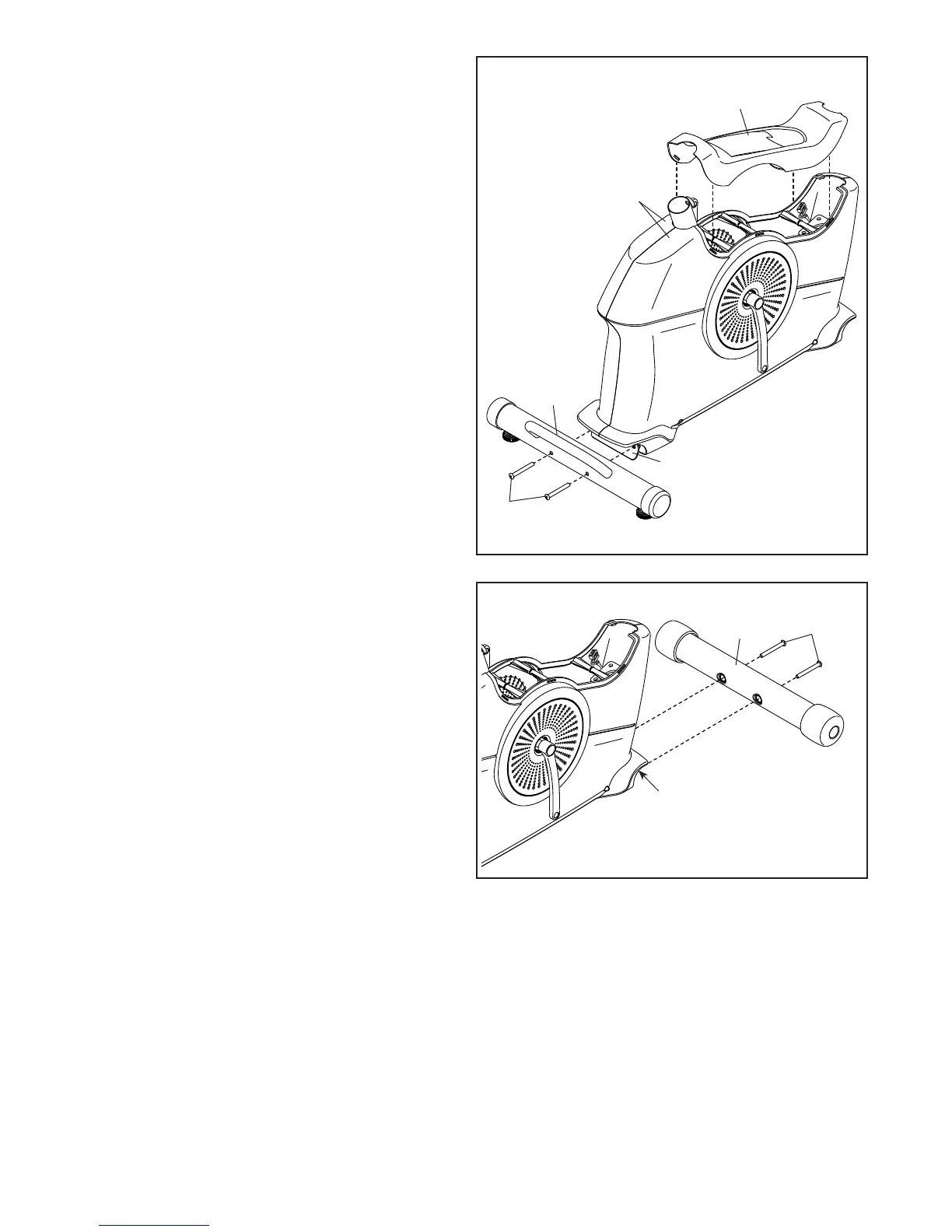

2. Using a standard screwdriver, remove the Shield
Cover (26) from the Left and Right Shields
(37, 58).
If there is a shipping tube (not shown) on the
rear of the Frame (50), remove the screws from
the shipping tube and discard the screws and
the shipping tube.
Set a sturdy piece of packing material under the
rear of the Frame (50). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Identify the Rear Stabilizer (44), which has a
handle.
Attach the Rear Stabilizer (44) to the Frame (50)
with two M8 x 70mm Screws (46).
Then, remove the packing material from under
the rear of the Frame (50).
2
44
26
37, 58
46
50
3. If there is a shipping tube (not shown) on the
front of the Frame (50), remove the screws from
the shipping tube and discard the screws and
the shipping tube.
Set a sturdy piece of packing material under the
front of the Frame (50).
Attach the Front Stabilizer (63) to the Frame (50)
with two M8 x 70mm Screws (46).
Then, remove the packing material from under
the front of the Frame (50).
3
63
46
50
