. Attach a Wheel (86) to the Base (85) with an
M10 x 50mm Bolt (27) and an M10 Nut (33). Do
n
ot overtighten the Nut; the Wheel must turn
freely.
27
33
3
86
85

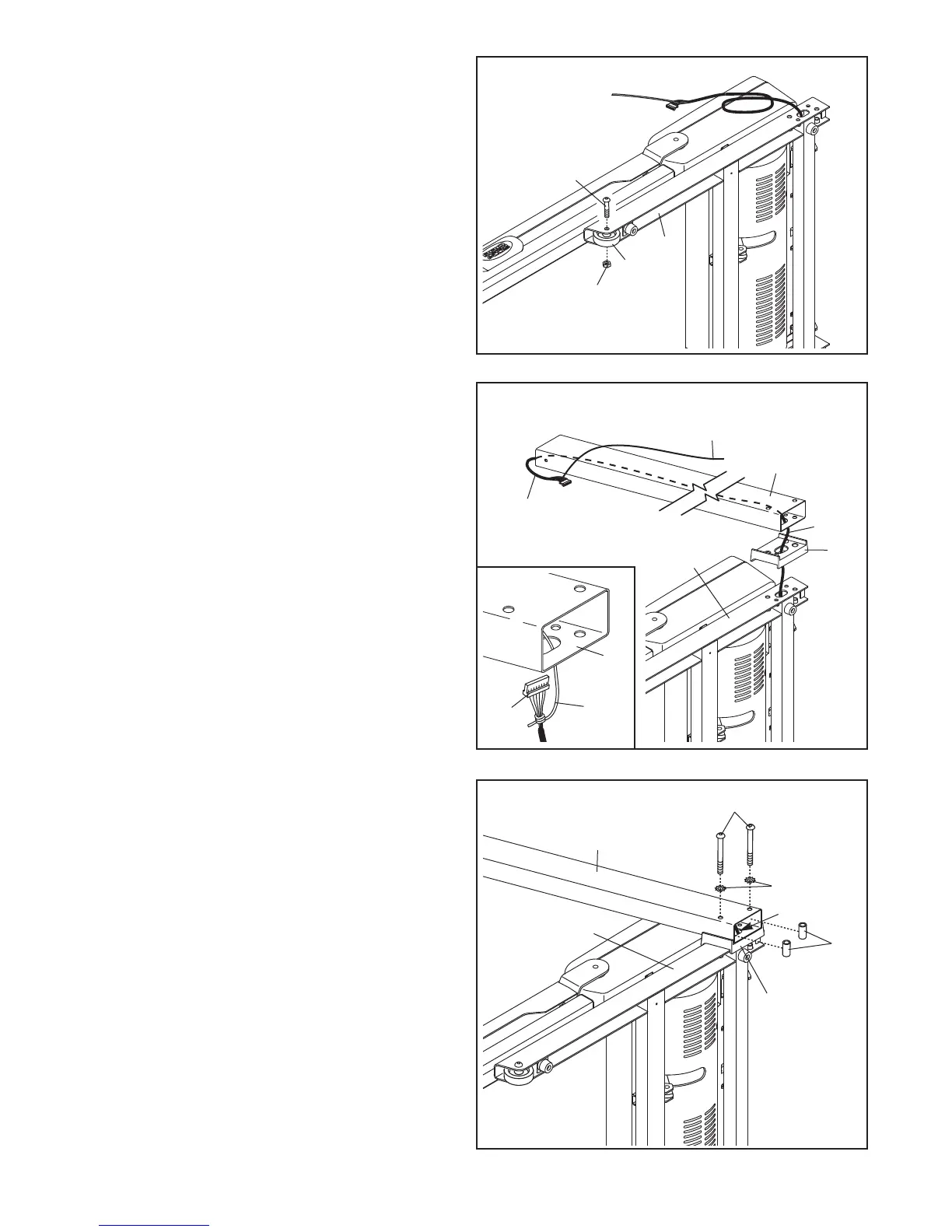

4. Identify the Right Upright (78) and the Right
Upright Spacer (80), which are marked with
stickers.
Insert the Wire Harness (77) through the Right
Upright Spacer (80) as shown. Then, set the
Right Upright Spacer on the Base (85).
Have a second person hold the Right Upright
(78) near the Base (85). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Wire Harness (77). Then,
pull the other end of the wire tie until the Wire
Harness is routed completely through the Right
Upright.
4
Wire
Tie
78
77
85
77
78
80
77
Wire
Tie
5. Hold a Bolt Spacer (79) inside the lower end of
the Right Upright (78). Insert an M10 x 96mm
Bolt (5) with an M10 Star Washer (8) into the
Right Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (79), M10 x
96mm Bolt (5), and M10 Star Washer (8).
Have the other person hold the Right Upright
(78) against the Right Upright Spacer (80) and
the Base (85). Be careful not to pinch the
Wire Harness (77). Tighten the M10 x 96mm
Bolts (5) until the heads of the Bolts touch the
Right Upright; do not fully tighten the Bolts
yet.
80
78
77
8
79
5
5
85
