7
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
s
mall amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , rubber
mallet , and adjustable spanner .

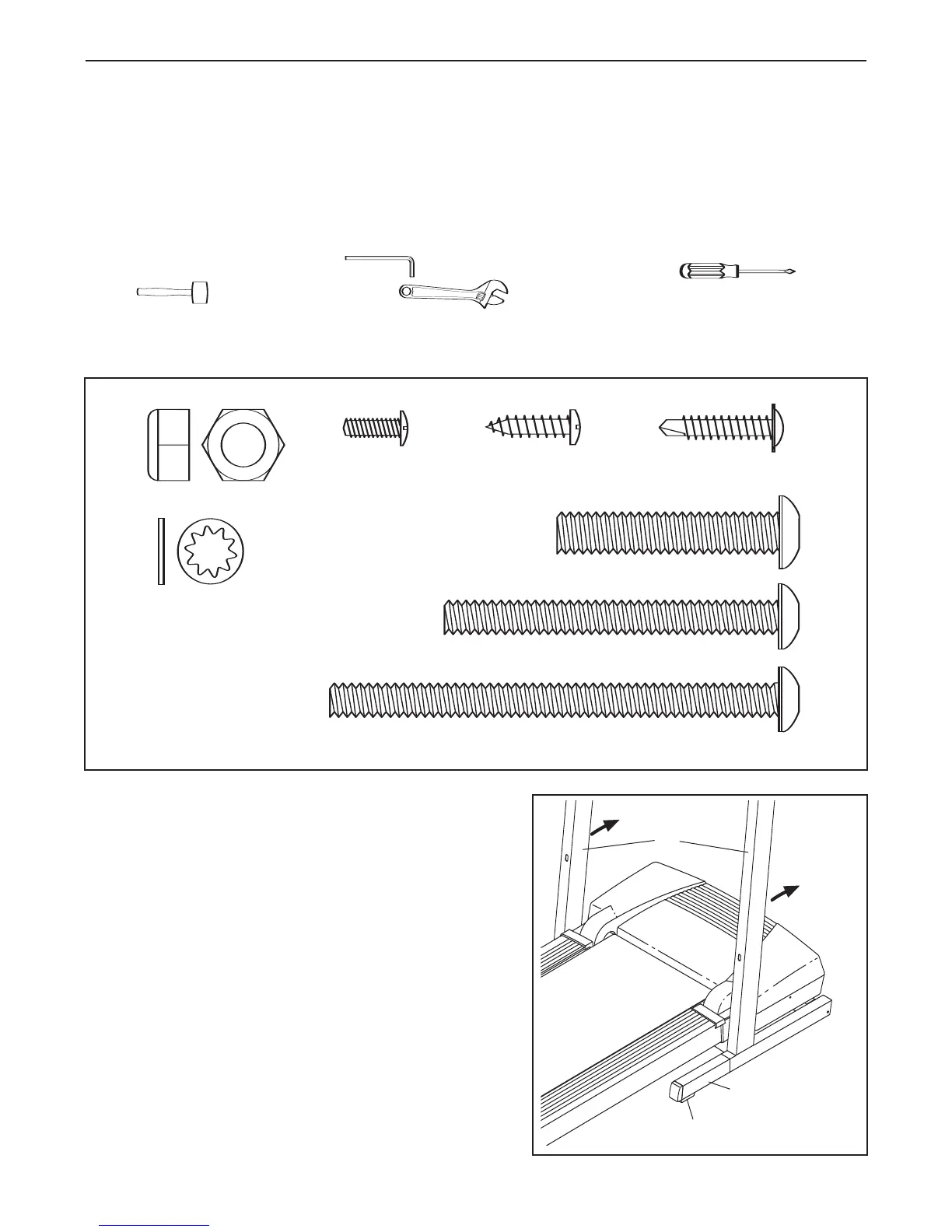

For help identifying assembly hardware, see the drawings below. If a part is not in the parts bag, first check
to see if it has been preassembled.
1. Make sure that the power cord is unplugged.
With the help of another person, carefully raise the
Uprights (69) to the vertical position. Insert one of the
Extension Legs (63) into the treadmill as shown. (Note: It
may be helpful to tip the Uprights as you insert the
Extension Leg.) Make sure that the Base Pad (61) is
under the Extension Leg.
Insert the other Extension Leg (63) in the same way.
1/2” Screw (119)–1
1
3/4” Screw (2)–9
Wheel Nut (32)–2
3
/4” Tek Screw (58)–8
1
2” Bolt (64)–2
Silver Ground
Screw (75)–1
1” Tek
Screw (39)–6
3” Bolt (37)–2
3
1/2” Screw (48)–6
5/16” Star
Washer (97)–2
4” Bolt (98)–2
3
69
63
61
1
To Next Page
