12
14. Lift the latch on the underside of the Left
Pedal Arm (14), and set the Left Pedal Arm
on the left Crank Bushing Sleeve (43).
Release the lever, and make sure that the
Left Pedal Arm (14) is securely connected
to the Crank Bushing Sleeve (43).
Connect the Right Pedal Arm (not
shown) in the same way.
See step 5. Tighten the M8 x 69mm Button
Bolt (80) and the two M8 x 23mm Button
Screws (84).
15. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
Latch
43
14
Grease
13
115
32
88
31
12
1
1
14
88
115

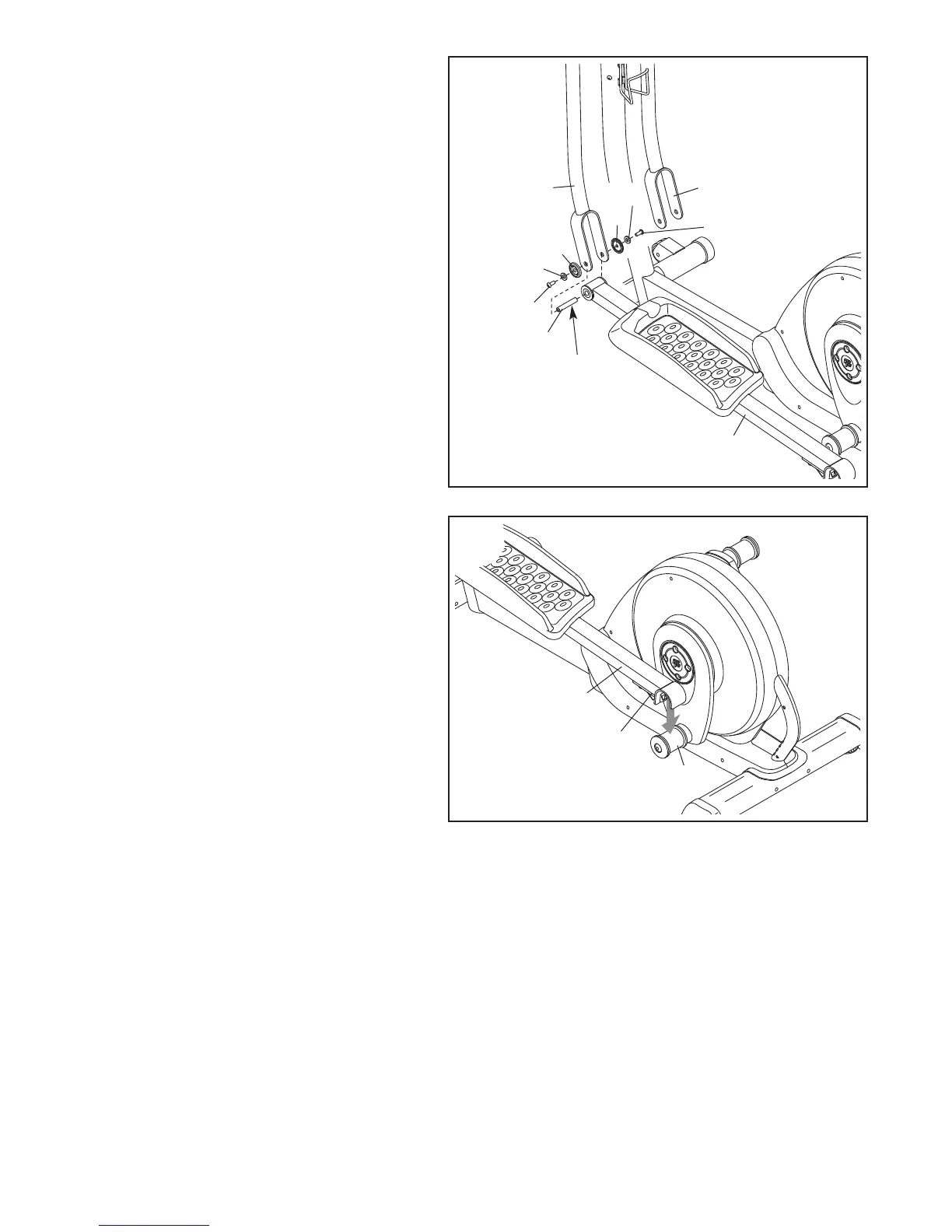

13. Apply a small amount of grease to one of
the Pedal Arm Axles (32).
N
ext, slide an M8 Washer (88) and a Pedal
Arm Cover (31) onto an M8 x 23mm
S
houlder Screw (115), and turn the
Shoulder Screw a few turns into the Pedal
Arm Axle (32).
While another person holds the front end of
the Left Pedal Arm (14) inside the bracket
on the Left Upper Body Leg (11), insert the
Pedal Arm Axle (32) into both parts.
Slide an M8 Washer (88) and a Pedal Arm
Cover (31) onto another M8 x 23mm
Shoulder Screw (115), and turn the
Shoulder Screw a few turns into the Pedal
Arm Axle. Tighten both Shoulder Screws.
Repeat this step to attach the Right
Pedal Arm (not shown) to the Right
Upper Body Leg (12).
31
14
To Next Page
