8

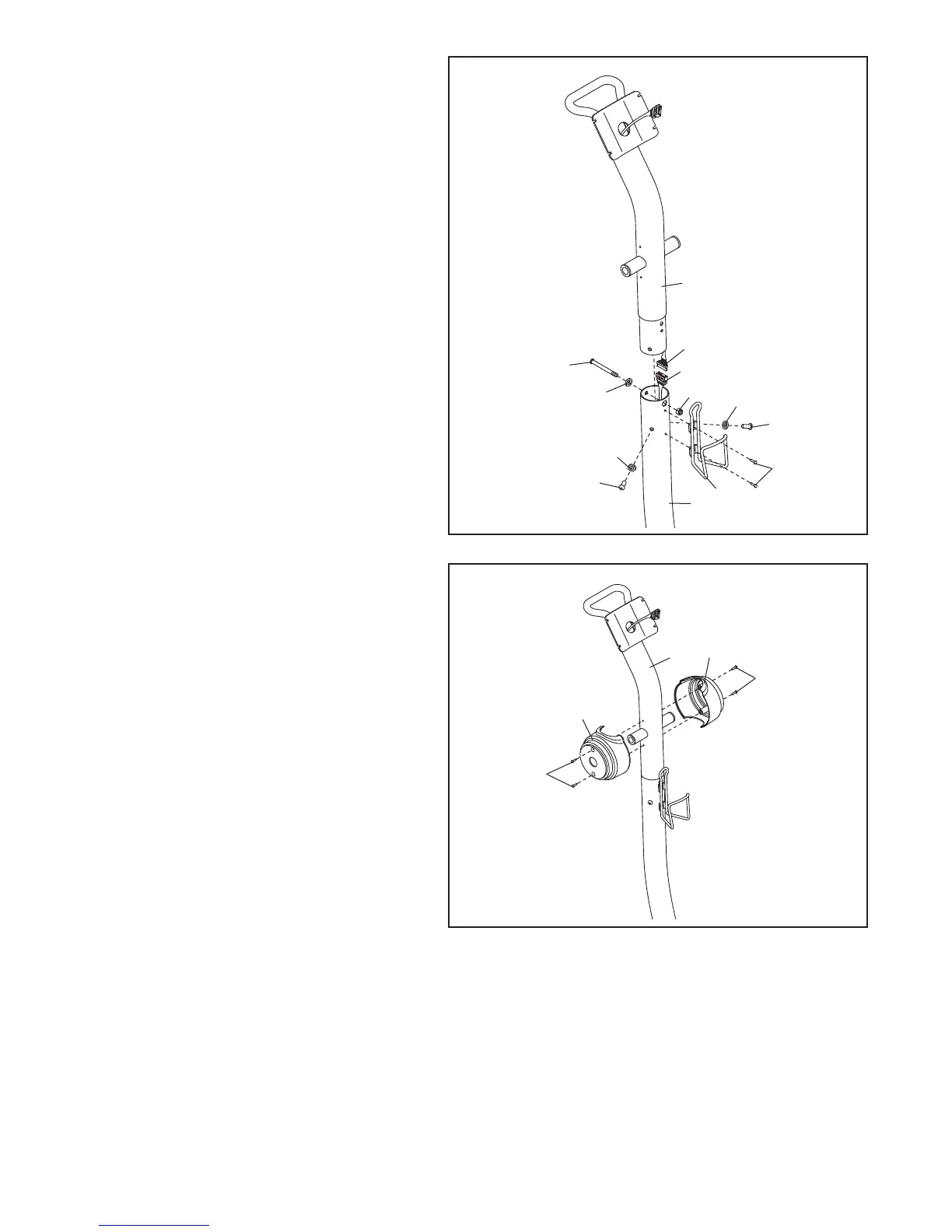

6. Identify the Left Upright Cover (17), which is
marked with a “Left” sticker, and hold it
against the left side of the Upright (3).
Attach the Left Upright Cover (17) with two
M4 x 16mm Round Head Screws (101).
Attach the Right Upright Cover (39) in
the same way.
5. While another person holds the Upright (3)
near the Base (1), connect the Upper Wire
Harness (48) to the Lower Wire Harness
(
49).
T
ip: Avoid pinching the wires. Insert the
Upright (3) into the Base (1). Attach the
Upright with an M8 x 69mm Button Bolt
(80), an M8 Split Washer (90), and an M8
Jam Nut (79). Do not tighten the Button
Bolt yet; make sure that the Jam Nut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button
Screws (84) and two M8 Split Washers (90)
into the Base (1). Do not tighten the
Button Screws yet.
Attach the Water Bottle Holder (22) to the
Base (1) with two M4 x 16mm Blunt Screws
(104).
6
17
39
3
101
101
3
80
48
49
22
84
84
90
90
90
104
Avoid pinching
the wires
79
1
5
