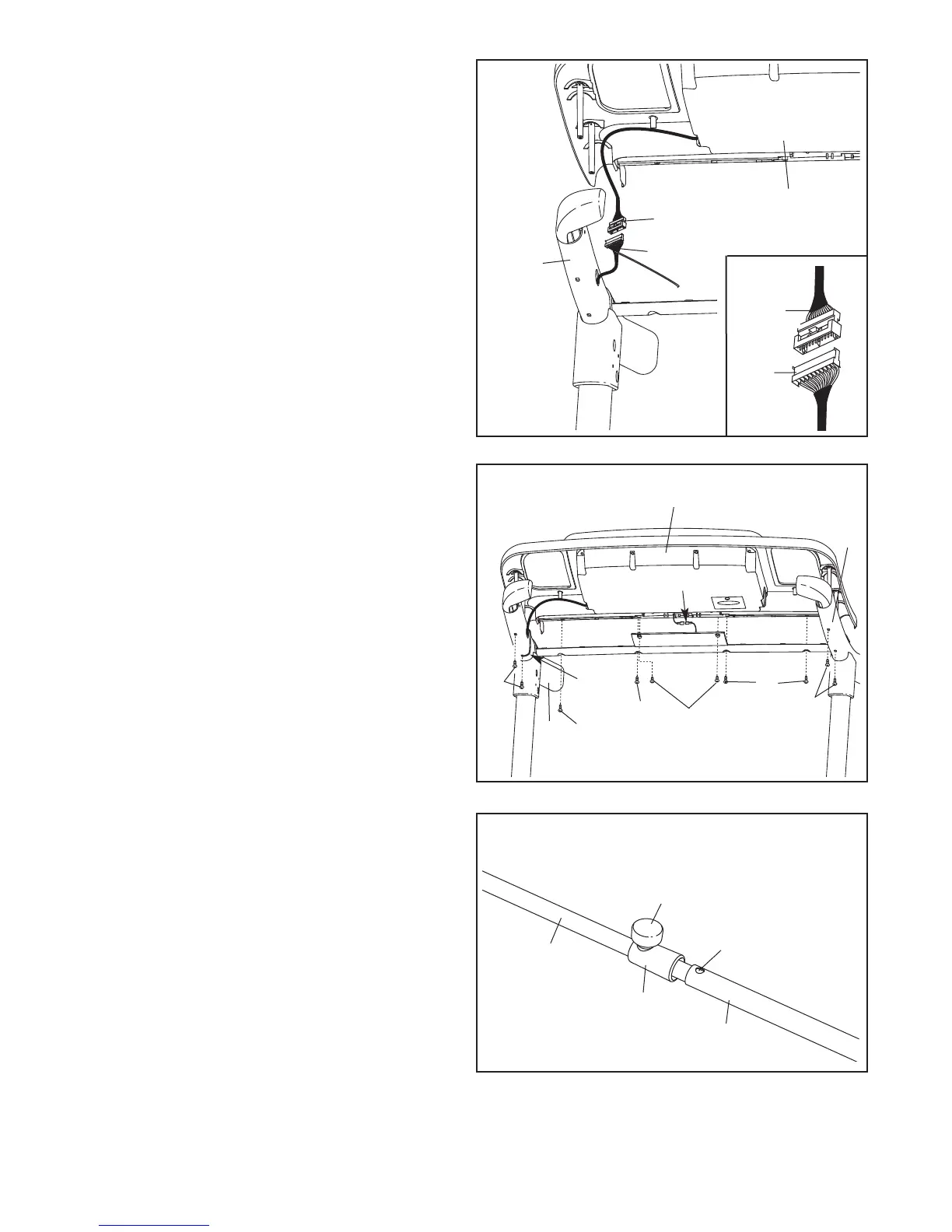

12. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the hole.
Pull on the sleeve to make sure that it is
locked into place.
54
Sleeve
Hole
Tube
53
12
10. With the help of a second person, hold the con-
sole assembly near the Right Handrail (34) and
the Left Handrail (not shown).
Connect the Upright Wire (38) to the console
w
ire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN YOU TURN ON THE
POWER. Insert the connectors and the excess
wire into the Right Handrail (34).
Console
Assembly
10
11. Connect the console ground wire to the handrail
ground wire.
Set the console assembly on the Right Handrail
(34) and the Left Handrail (33). Make sure that
the wire harnesses and ground wires are not
pinched. Attach the console assembly with ten
#8 x 3/4" Screws (12). Start all the Screws be-
fore tightening any of them.
Cut the plastic tie off the Right Handrail (34).
See steps 4 and 6. Firmly tighten the four 3/8" x
4" Bolts (6).
Console Assembly
Ground Wires
11
Console
Wire
Console
Wire
38
38
34
12
12
Plastic
Tie
12
12
12
12
33
34
To Next Page
