14
13

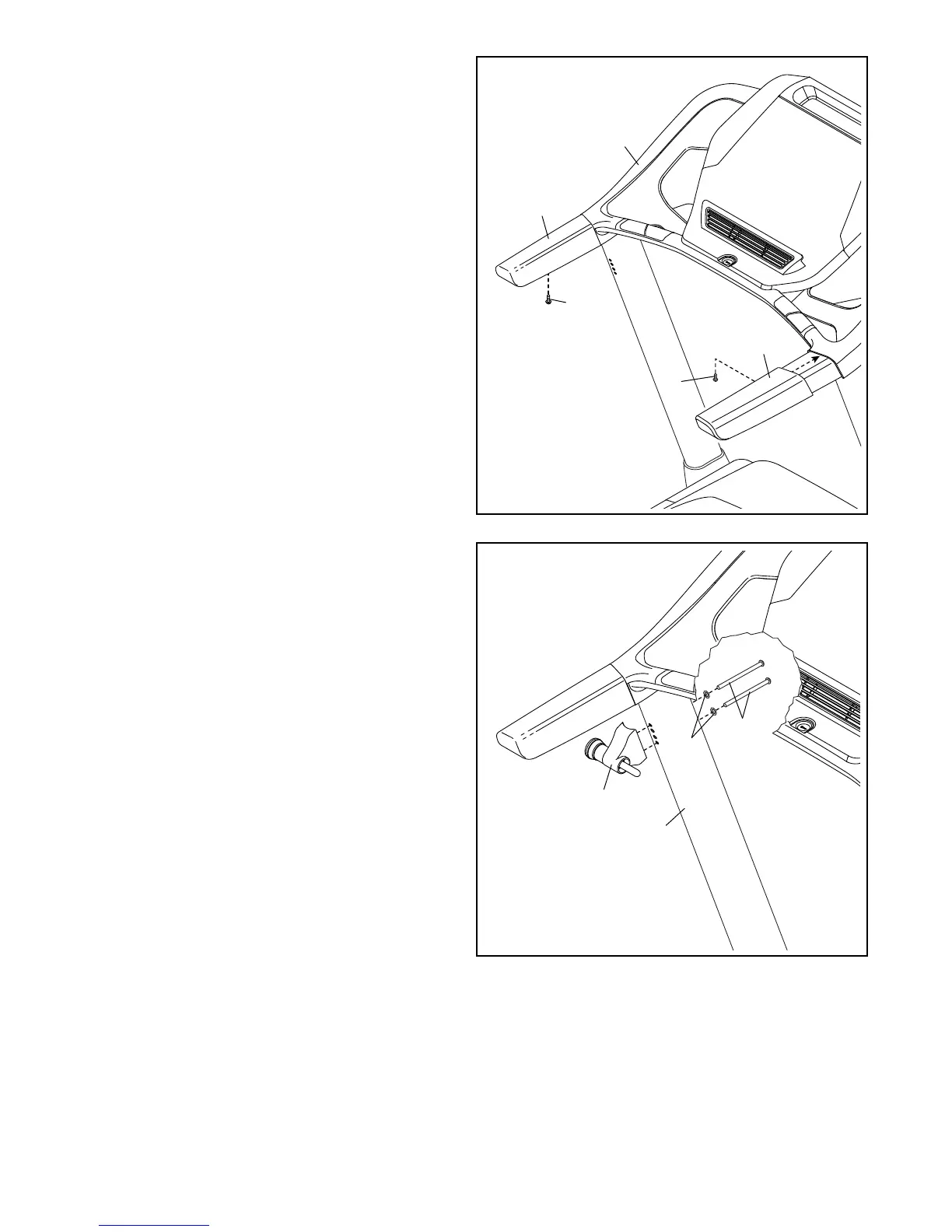

13. Orient the Latch Pin Assembly (62) as shown.
Attach the Latch Pin Assembly to the Left Upright
(89) with two 1/4" x 4 1/2" Screws (6) and two
1/4" Star Washers (26); start both Screws, and
then tighten them.
62
89
6
26
12. Identify the Left and Right Handrail Covers
(87, 8).
Slide the Left Handrail Cover (87) up against the
console assembly and tighten a #8 x 3/4" Screw
(4) into the bottom of the Left Handrail Cover. Be
careful not to overtighten the Screw.
Attach the Right Handrail Cover (8) in the
same way.
12
4
4
8
87
Console
Assembly
To Next Page
