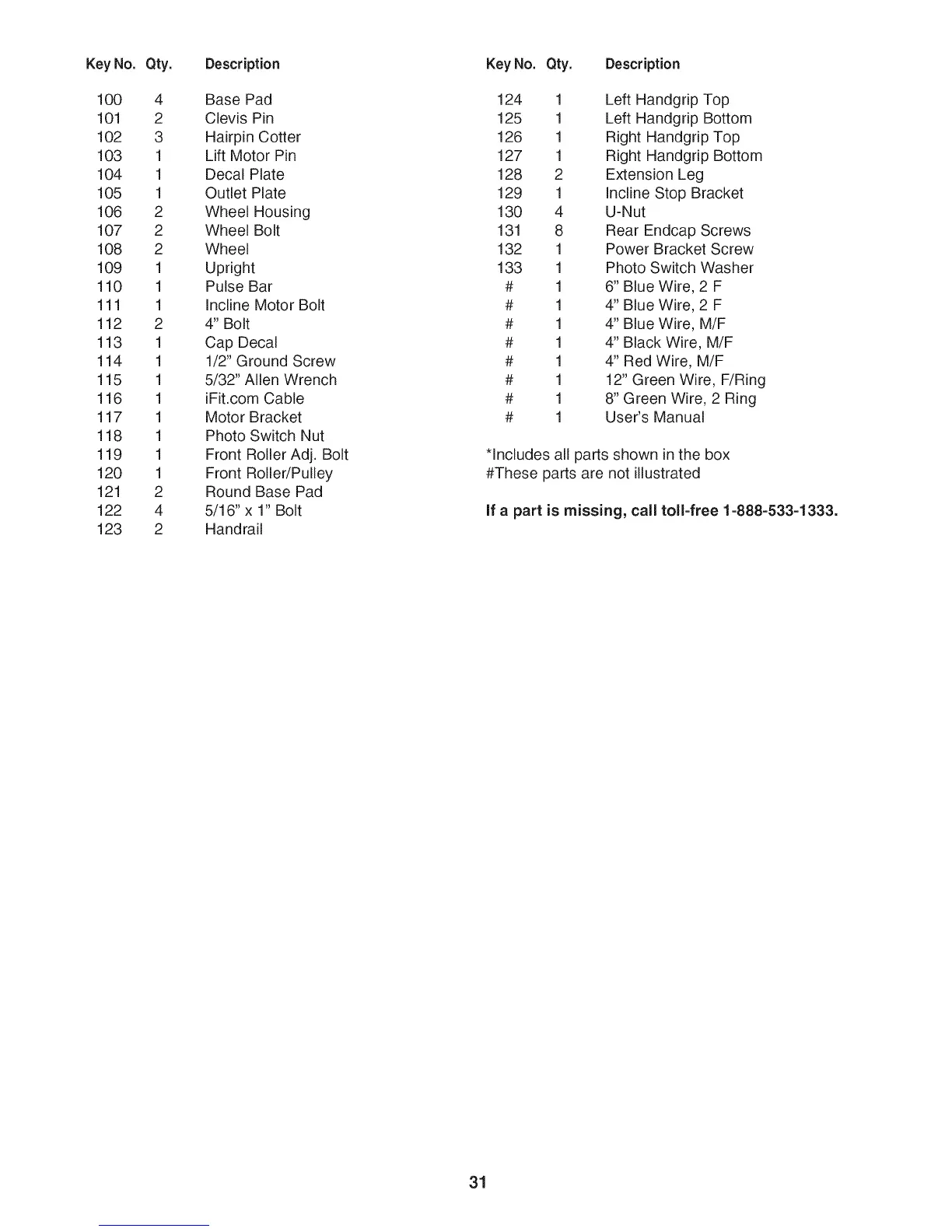

ProForm 540s - Page 31

Key No. Qty. Description Key No. Qty. Description
IO0 4
101 2
102 3
103 1
104 1
105 1
106 2
107 2
108 2
109 1
110 1
111 1
112 2
113 1
114 1
115 1
116 1
117 1
118 1
119 1
120 1
121 2
122 4
123 2
Base Pad
Clevis Pin
Hairpin Cotter
Lift Motor Pin
Decal Plate
Outlet Plate
Wheel Housing
Wheel Bolt
Wheel
Upright
Pulse Bar
Incline Motor Bolt
4" Bolt
Cap Decal
1/2" Ground Screw
5/32" Allen Wrench
iFit.com Cable
Motor Bracket
Photo Switch Nut
Front Roller Adj. Bolt
Front Roller/Pulley
Round Base Pad
5/16"x 1" Bolt
Handrail
124 1 Left Handgrip Top
125 1 Left Handgrip Bottom
126 1 Right Handgrip Top
127 1 Right Handgrip Bottom
128 2 Extension Leg
129 1 Incline Stop Bracket
130 4 U-Nut
131 8 Rear Endcap Screws
132 1 Power Bracket Screw
133 1 Photo Switch Washer
# 1 6" Blue Wire, 2 F
# 1 4" Blue Wire, 2 F
# 1 4" Blue Wire, M/F
# 1 4" Black Wire, M/F
# 1 4" Red Wire, M/F
# 1 12" Green Wire, F/Ring
# 1 8" Green Wire, 2 Ring
# 1 User's Manual
*Includes all parts shown in the box
#These parts are not illustrated
If a part is missing, call toll=free 1=888=533=1333.
31
