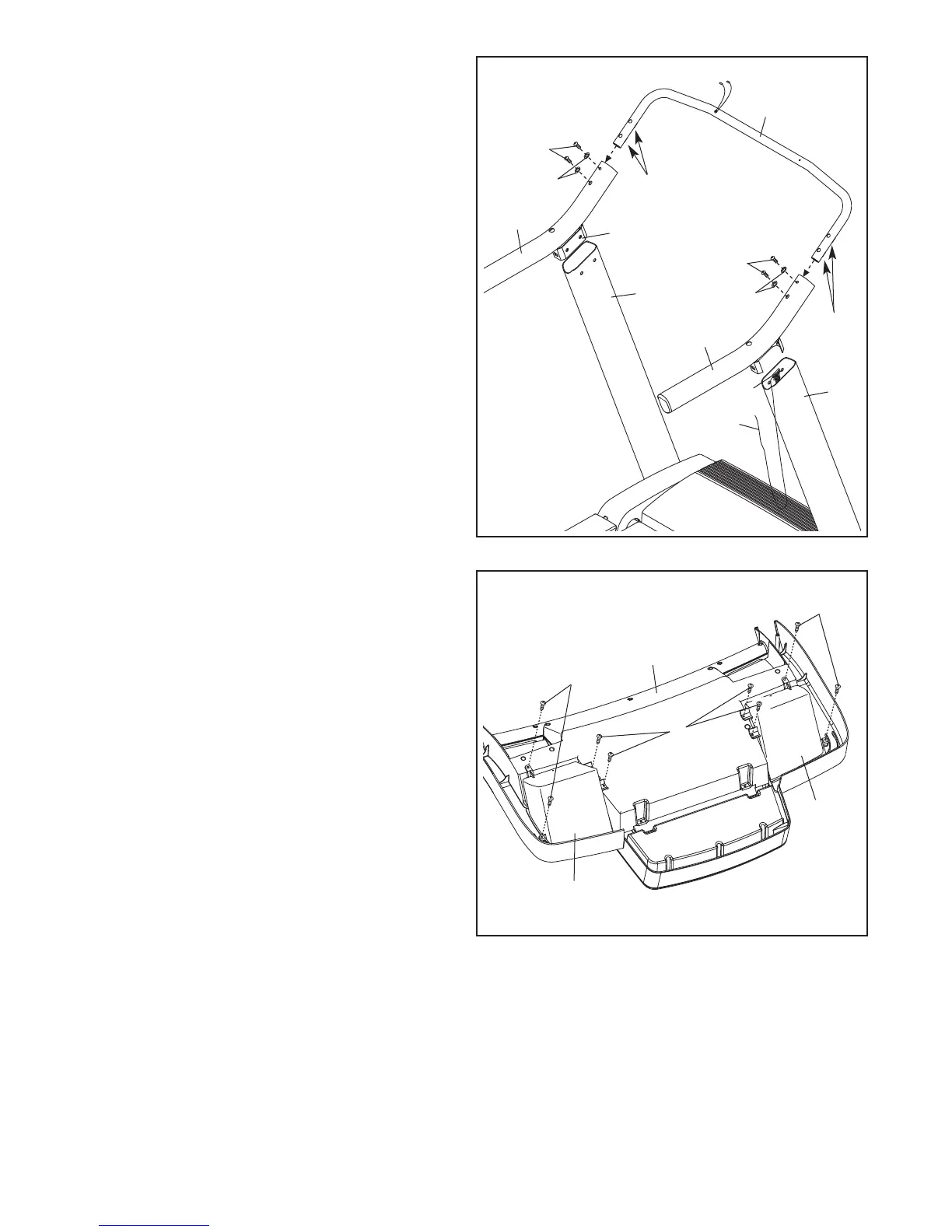

7. Insert the bracket on the Left Handrail (82) into
the Left Upright (84).
I
nsert the Upright Wire (87) several inches
downward into the Right Upright (85); make
s
ure that the wire tie does not fall into the
Right Upright. Then, insert the Right Handrail
(83) into the Right Upright. Be careful not to
pinch the Upright Wire.
Orient the Console Frame (102) as shown, with
the welded nuts on the bottom. Insert the ends
of the Console Frame into the Left and Right
Handrails (82, 83). Attach the Console Frame
with four 1/4" x 1 1/4" Patch Bolts (9) and four
1/4" Star Washers (12). Start all four Patch
Bolts, and then tighten all of them.
Lift the Console Frame (102) and the Handrails
(82, 83) off the Uprights (84, 85). Then, pull the
Upright Wire (87) out of the Right Upright.
102
9
84
Bracket
12
Welded
Nuts
Wire
Tie
Welded
Nuts
9
12
85
83
87
82
7
8. Set the console assembly (A) face-down on a
soft surface to avoid scratching the console.
Attach the Left Accessory Tray (103) with four
#8 x 1/2" Screws (3). Start all four Screws,
and then tighten all of them.
Attach the Right Accessory Tray (104) in the
same way.
8
A
3
3
103
3
104
To Next Page
