11

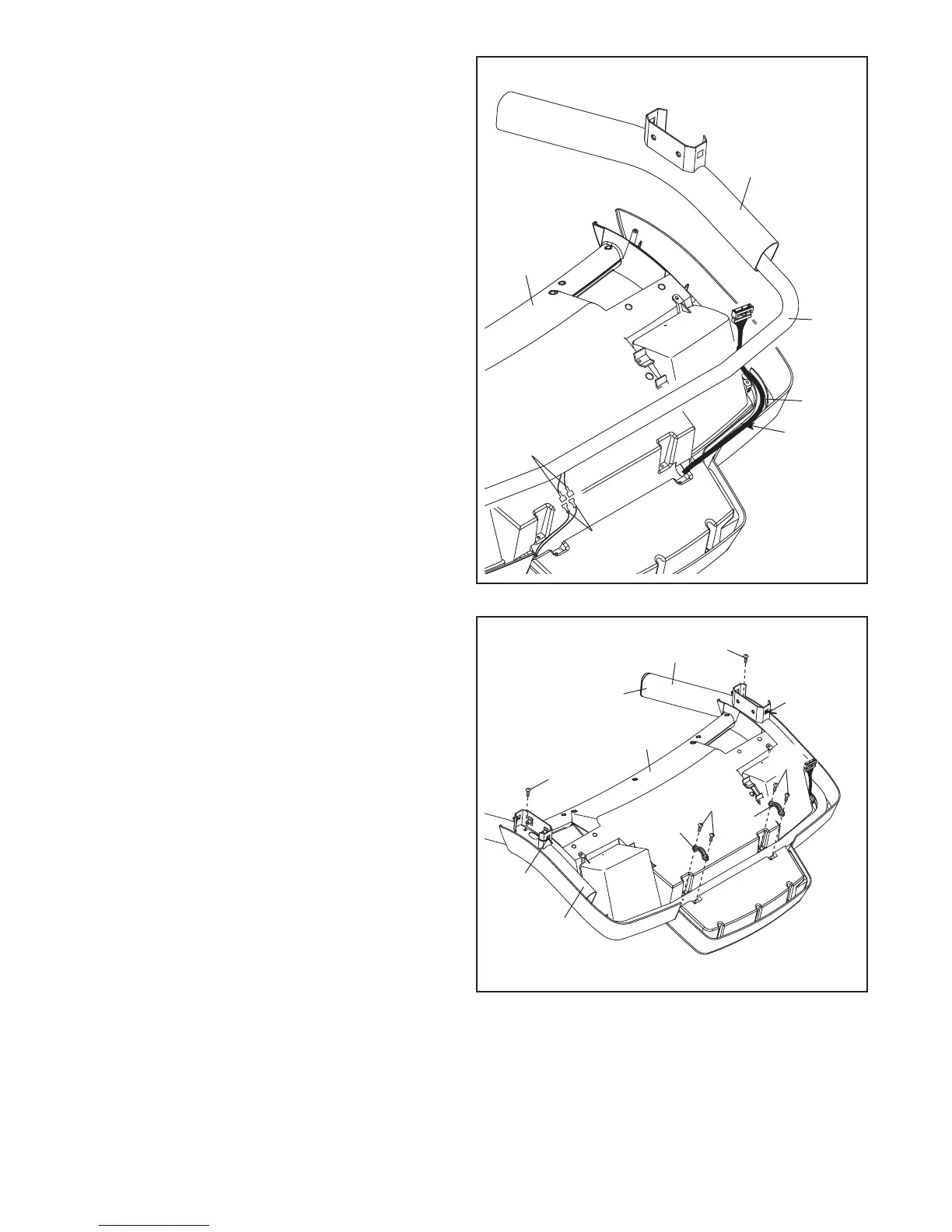

9. With the help of a second person, hold the
handrail assembly (B) upside-down near the
console assembly (A). Connect the Console
Ground Wires (6) in the handrail assembly to
t
he ground wires in the console assembly.
Insert the console wire (C) into the track in the
console assembly (A).
Insert the Console Ground Wires (6) into the
hole in the console assembly (A) as you set the
handrail assembly (B) in the console assembly.
Make sure that the console wire (C) stays in
the track. Be careful not to pinch any wires.
9
Ground
Wires
Track
C
102
A
B
6
10. Attach the handrail assembly (B) to the console
assembly (A) with two #8 x 3/4" Washer Head
Screws (2). Start both Washer Head Screws,
and then tighten both of them. Be careful not
to overtighten the Washer Head Screws.
Attach a Console Clamp (105) to the console
assembly (A) with two #8 x 1" Screws (52).
Start both Screws, and then tighten both of
them. Be careful not to overtighten the
Screws. Attach the other Console Clamp (105)
in the same way.
Remove the wire ties from the Handrails (82,
83). Press the 5/16" Cage Nuts (38) back into
place, if necessary.
A
105
105
83
82
2
2
10
52
52
38
38
B
To Next Page
