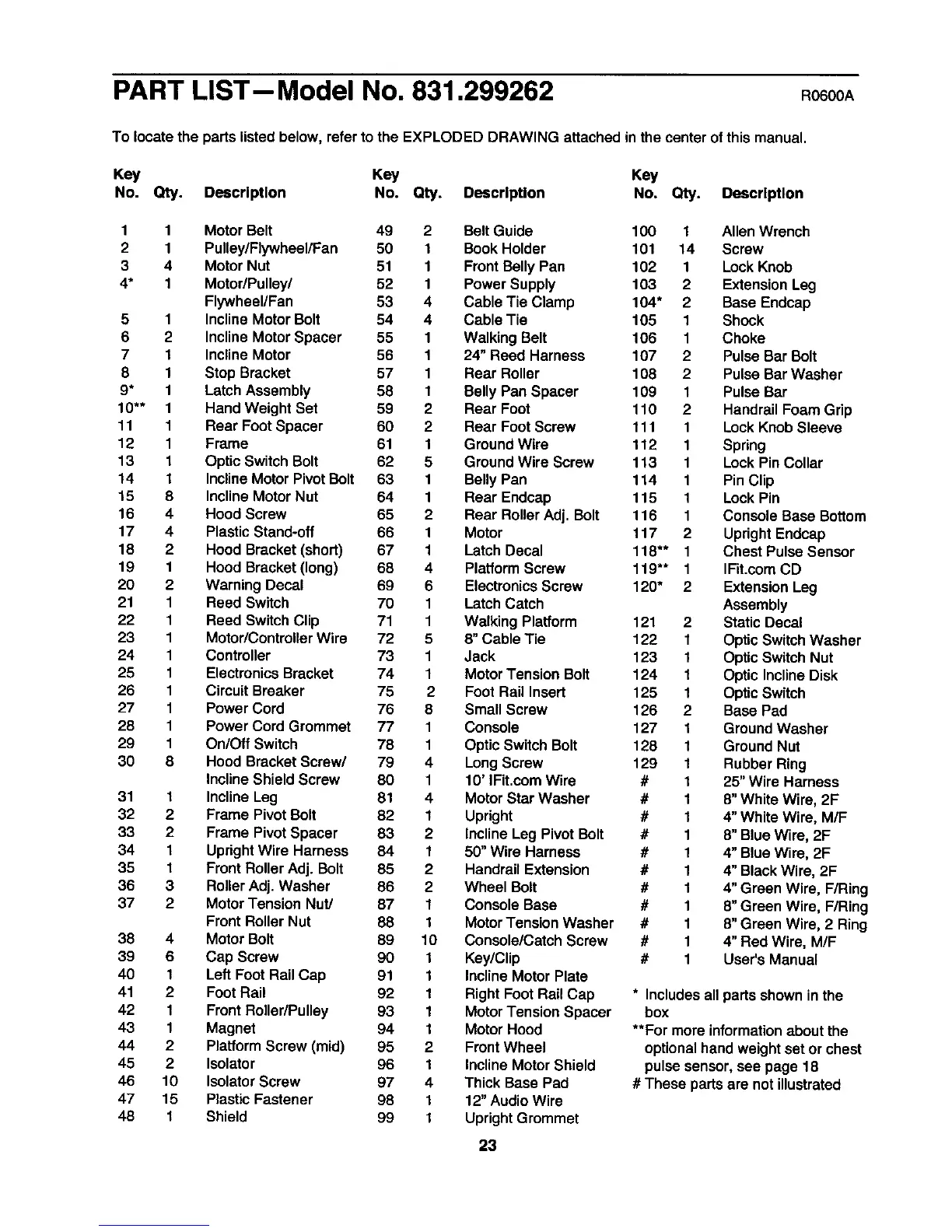

PART LIST--Model No. 831.299262 R0800A
To locate the parts listed below, referto the EXPLODED DRAWING attached in the center of this manual.
Key Key Key
No. Qty. Description No. Qty. Description No. Qty. Description
1 1 Motor Belt 49 2 Belt Guide
2 1 Pulley/Flywheel/Fan 50 1 Book Holder
3 4 Motor Nut 51 1 FrontBelly Pan
4* 1 Motor/Pulley/ 52 1 Power Supply
Flywheel/Fan 53 4 Cable Tie Clamp
5 1 Incline Motor Bolt 54 4 Cable Tie
6 2 InclineMotor Spacer 55 1 Walking Belt
7 1 Incline Motor 56 1 24" Reed Harness
8 1 Stop Bracket 57 1 Rear Roller
9* 1 Latch Assembly 58 1 Belly Pan Spacer
10"* 1 Hand Weight Set 59 2 Rear Foot
11 1 Rear Foot Spacer 60 2 Rear Foot Screw
12 1 Frame 61 1 Ground Wire
13 1 Optic Switch Bolt 62 5 Ground Wire Screw
14 1 InclineMotorPivot Bolt 63 1 Belly Pan
15 8 Incline Motor Nut 64 1 Rear Endcap
16 4 Hood Screw 65 2 Rear Roller Adj. Bolt
17 4 Plastic Stand-oft 66 1 Motor
18 2 Hood Bracket (short) 67 1 Latch Decal
19 1 Hood Bracket (long) 68 4 Platform Screw
20 2 Warning Decal 69 6 ElectronicsScrew
21 1 Reed Switch 70 1 Latch Catch
22 1 Reed SwitchClip 71 1 Walking Platform
23 1 Motor/Controller Wire 72 5 8" Cable Tie
24 1 Controller 73 1 Jack
25 1 Electronics Bracket 74 1 Motor Tension Bolt
26 1 Circuit Breaker 75 2 Foot Rail Insert
27 1 Power Cord 76 8 Small Screw
28 1 Power Cord Grommet 77 1 Console
29 1 On/Off Switch 78 1 Optic Switch Bolt
30 8 Hood Bracket Screw/ 79 4 Long Screw
Incline Shield Screw 80 1 10' IFit.comWire
31 1 Incline Leg 81 4 Motor Star Washer
32 2 Frame Pivot Bolt 82 1 Upright
33 2 Frame Pivot Spacer 83 2 Incline Leg Pivot Bolt
34 1 Upright Wire Harness 84 1 50" Wire Harness
35 1 Front Roller Adj. Bolt 85 2 Handrail Extension
36 3 Roller Adj. Washer 86 2 Wheel Bolt
87 2 Motor Tension Nut/ 87 1 Console Base
Front Roller Nut 88 1 Motor Tension Washer
38 4 Motor Bolt 89 10 Console/Catch Screw
39 6 Cap Screw 90 1 Key/Clip
40 1 Left Foot Rail Cap 91 1 Incline Motor Plate
41 2 Foot Rail 92 1 Right Foot Rail Cap
42 1 Front Roller/Pulley 93 1 Motor Tension Spacer
43 1 Magnet 94 1 Motor Hood
44 2 Platform Screw (mid) 95 2 Front Wheel
45 2 Isolator 96 1 Incline Motor Shield
46 10 Isolator Screw 97 4 Thick Base Pad
47 15 Plastic Fastener 98 1 12" Audio Wire
48 1 Shield 99 1 Upright Grommet
100 1 Allen Wrench
101 14 Screw
102 1 LockKnob
103 2 ExtensionLeg
104" 2 Base Endcap
105 1 Shock
106 1 Choke
107 2 Pulse Bar Bolt
108 2 Pulse Bar Washer
109 1 Pulse Bar
110 2 Handrail Foam Grip
111 1 LockKnob Sleeve
112 1 Spring
113 1 Lock Pin Collar
114 1 Pin Clip
115 1 Lock Pin
116 1 Console Base Bottom
117 2 UprightEndcap
118"* 1 Chest Pulse Sensor
119"* 1 IFit.comCD
120" 2 ExtensionLeg
Assembly
121 2 Static Decal
122 1 OpticSwitch Washer
123 1 OpticSwitch Nut
124 1 Optic Incline Disk
125 1 OpticSwitch
126 2 Base Pad
127 GroundWasher
128 GroundNut
129 Rubber Ring
# 25" Wire Harness
# 8" White Wire, 2F
# 4" White Wire, M/F
# 8" Blue Wire, 2F
# 4" Blue Wire, 2F
# 4" BlackWire, 2F
# 4" Green Wire, F/Ring
# 8" Green Wire, FIRing
# 8" Green Wire, 2 Ring
# 4" Red Wire, M/F
# User's Manual
* Includes all partsshown in the
box
**For more information about the
optional hand weight set or chest
pulse sensor, see page 18
# These parts are not illustrated
23
