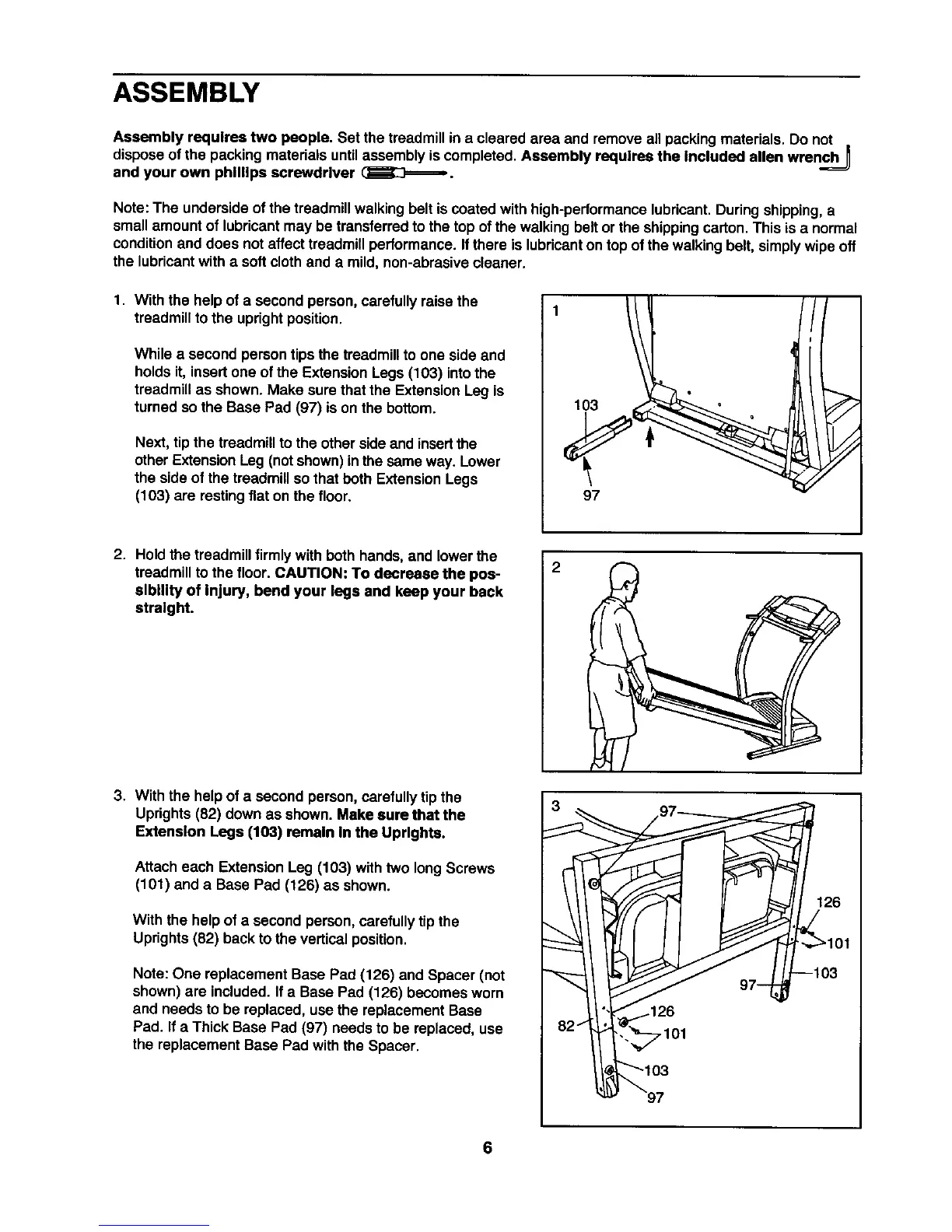

ASSEMBLY
Assembly requlrea two people. Set the treadmillin a cleared area and remove all packingmaterials. Do not
dispose of the packing materials untilassembly iscompleted.Assembly requires the Included allen wrenc._
and your own phillips screwdriver (_B_ ===_=..
Note: The undersideof the treadmill walkingbelt is coated withhigh-performance lubricant. During shipping,a
small amount of lubricantmay be transferredtothe top ofthe walking beltor the shippingcarton.This is a normal
condition and does not affect treadmill performance.Ifthere is lubricanton top of the walking belt,simplywipe off
the lubricantwith a softclothand a mild, non-abrasivecleaner.
1. With the help of a secondperson,carefully raisethe
treadmilltothe uprightposition.
While a second persontips the treadmillto one side and
holds it, insert one ofthe ExtensionLegs (103) intothe
treadmillas shown. Make sure that the ExtensionLeg is
turned so the Base Pad (97) is onthe bottom.
Next, tip the treadmill to the other sideand insertthe
otherExtensionLeg (notshown) in the same way.Lower
the side of the treadmillso that both ExtensionLegs
(103) are restingflat on the floor.
97
o
2. Holdthe treadmillfirmly with both hands, and lower the
treadmilltothe floor. CAUTION: To decrease the pos-
sibility o1Injury, bend your legs and keep your back
straight.
3. With the help of a second person,carefullytip the
Uprights(82) down as shown. Make sure that the
Extension Legs (103) remain In the Uprights.
Attach each ExtensionLeg (103) withtwo long Screws
(101) and a Base Pad (126) as shown.
With the helpof a second person, carefullytipthe
Uprights(82) back to the verticalposition.
Note: One replacement Base Pad (126) and Spacer (not
shown)are included. If a Base Pad (126) becomesworn
and needs to be replaced, usethe replacementBase
Pad. Ifa Thick Base Pad (97) needs to be replaced, use
the replacement Base Pad withthe Spacer.
2
,101
97
6
