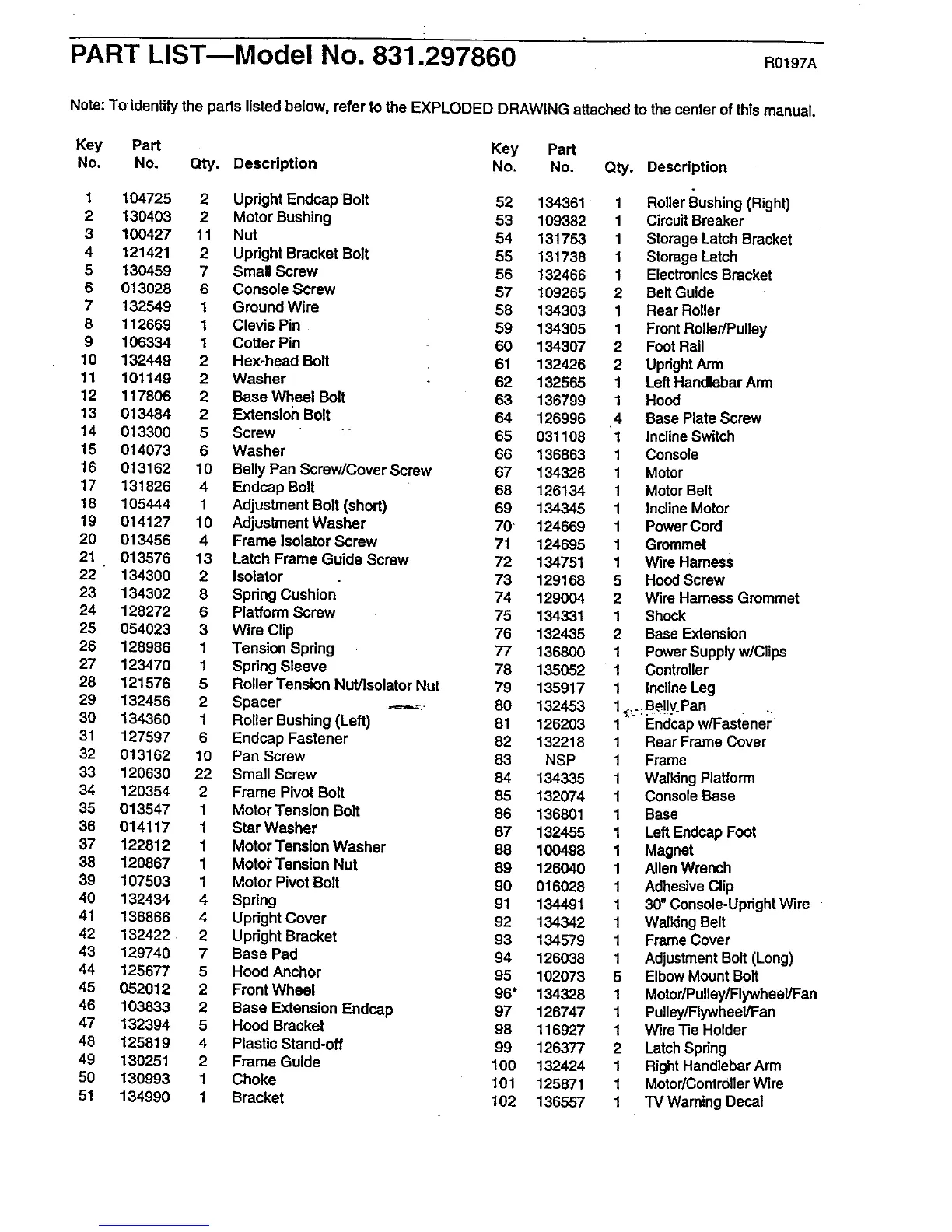

PART LIST--Model No. 831.297860 Ro197A
Note: To identify the parts listed below, refer to the EXPLODED DRAWING attached to the center of this manual.
Key Part Key Part
No. No. Qty. Description No. No. Qty. Description
1 104725 2 Upright Endcap Bolt 52 134361 1 Roller 13ushing (Right)
2 130403 2 Motor Bushing 53 109382 1 Circuit Breaker
3 100427 11 Nut 54 131753 1 Storage Latch Bracket
4 121421 2 Upright Bracket Bolt 55 131738 1 Storage Latch
5 130459 7 Small Screw 56 132466 1 Electronics Bracket
6 013028 6 Console Screw 57 109265 2 Belt Guide
7 132549 1 Ground Wire 58 134303 1 Rear Roller
8 112669 1 Clevis Pin 59 134305 1 Front Roller/Pulley
9 106334 1 Cotter Pin 60 134307 2 Foot Rail
10 132449 2 Hex-head Bolt 61 132426 2 Upright Arm
11 101149 2 Washer 62 132565 1 Left Handlebar Arm
12 117806 2 Base Wheel Bolt 63 136799 1 Hood
13 013484 2 Extension Bolt 64 126996 4 Base Plate Screw
14 013300 5 Screw ""
65 031108 1 Incline Switch
15 014073 6 Washer 66 136863 1 Console
16 013162 10 Belly Pan Screw/Cover Screw 67 134326 1 Motor
17 131826 4 Endcap Bolt 68 126134 1 Motor Belt
18 105444 1 Adjustment Bolt (short) 69 134345 1 Incline Motor
19 014127 10 Adjustment Washer 70- 124669 1 PowerCord
20 013456 4 Frame Isolator Screw 71 124695 1 Grommet
21 016576 13 Latch Frame Guide Screw 72 134751 1 Wire Harness
22 " 134300 2 Isolator 73 129168 5 Hood Screw
23 134302 8 Spring Cushion" 74 129004 2 Wire Harness Grommet
24 128272 6 Platform Screw 75 134331 1 Shock
25 054023 3 Wire Clip 76 132435 2 Base Extension
26 128986 1 Tension Spring 77 136800 1 Power Supply w/Clips
27 123470 1 Spring Sleeve 78 135052 1 Controller
28 121576 5 Roller Tension Nut]Isolator Nut 79 135917 1 Incline Leg
29 132456 2 Spacer -_,_-. 80 132453 1_:._e!!v Pan
30 134360 1 Roller Bushing (Left) 81 126203 1 Endcap w/Fastener
31 127597 6 Endcap Fastener 82 132218 1 Rear Frame Cover
32 013162 10 Pan Screw 83 NSP 1 Frame
33 120630 22 Small Screw 84 134335 1 Walking Platform
34 120354 2 Frame Pivot Bolt 85 132074 1 Console Base
35 013547 1 Motor Tension Bolt 86 136801 1 Base
36 014117 1 Star Washer 87 132455 1 Left Endcap Foot
87 122812 1 Motor Tension Washer 88 100498 1 Magnet
38 120867 1 Motor Tension Nut 89 126040 1 Allan Wrench
39 107503 1 Motor Pivot Bolt 90 016028 1 Adhesive Clip
40 132434 4 Spring 91 134491 1 30" Console-Upright Wire
41 136866 4 Upright Cover 92 134342 1 Walking Belt
42 132422 2 Upright Bracket 93 134579 1 Frame Cover
43 129740 7 Base Pad 94 126038 1 Adjustment Bolt (Long)
44 125677 5 Hood Anchor 95 102073 5 Elbow Mount Bolt
45 052012 2 Front Wheel 96" 134328 1 Motor/Pulley/Flywheel/Fan
46 103833 2 Base Extension Endcap 97 126747 1 Pulley/Flywheel/Fan
47 132394 5 Hood Bracket 98 116927 1 Wire Tie Holder
48 125819 4 Plastic Stand-off 99 126377 2 Latch Spring
49 130251 2 Frame Guide 100 132424 1 Right Handlebar Arm
50 130993 1 Choke 101 125871 1 Motor/Controller wire
51 134990 1 Bracket 102 136557 1 TV Warning Decal
