9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
8
20
15
38
14
13

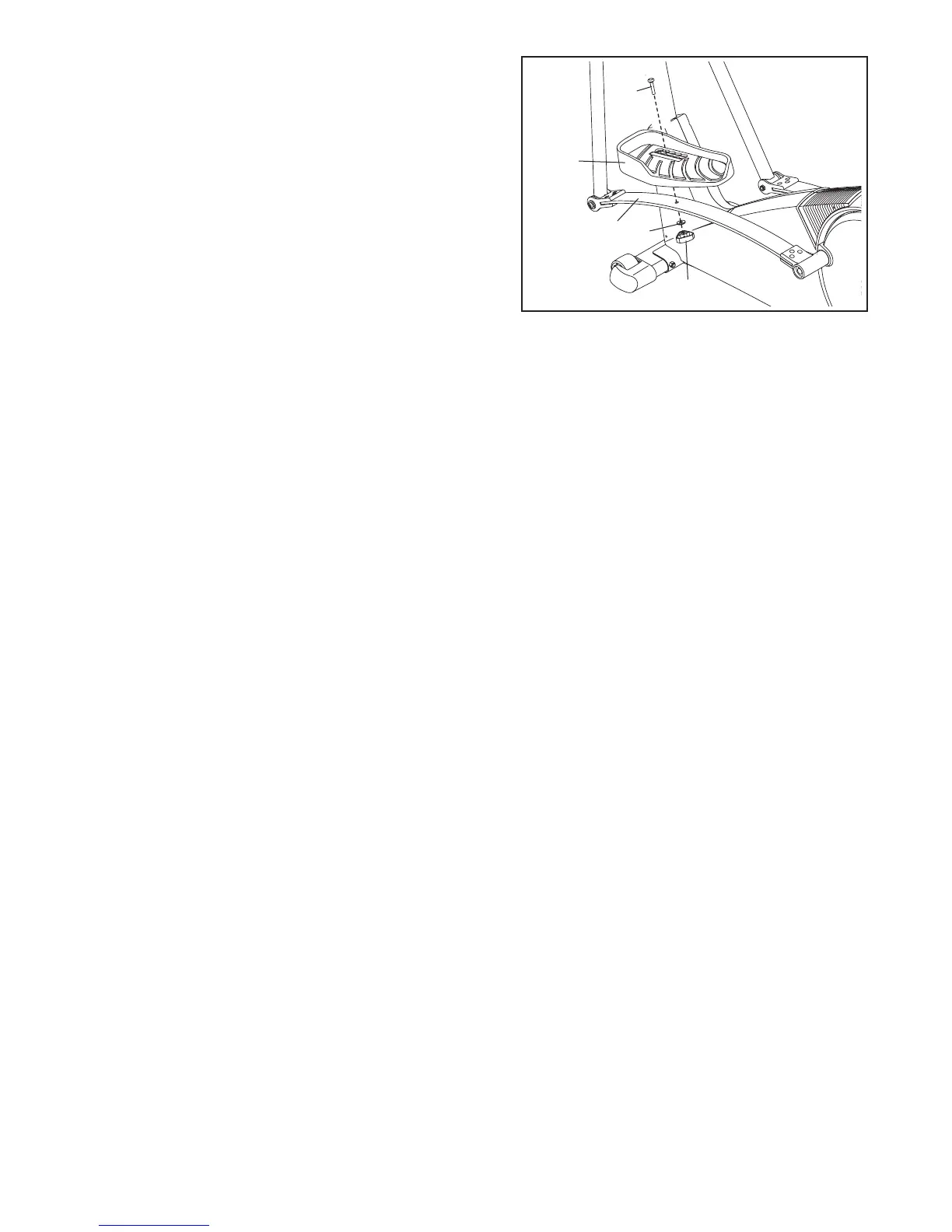

8. Identify the Left Pedal (13). Attach the Left Pedal to the
left Flex Bar (14) with an M10 x 33mm Carriage Bolt
(20), an M10 Washer (38), and a Pedal Knob (15) as
shown. Note: The Left Pedal can be attached in any of
five positions (see HOW TO ADJUST THE PEDALS on
page 9).
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
