10
11. Orient an Inner Handlebar Cover (18) and an
Outer Handlebar Cover (19) around the Right
Handlebar (9) as shown.
Attach the Outer Handlebar Cover (19) with an
M4 x 16mm Flange Screw (84). Then, attach the
Inner Handlebar Cover (18) with two M4 x 16mm
Self-tapping Screws (79).
Repeat this step for the Left Handlebar (not
shown).
11
19
18
79
84
9

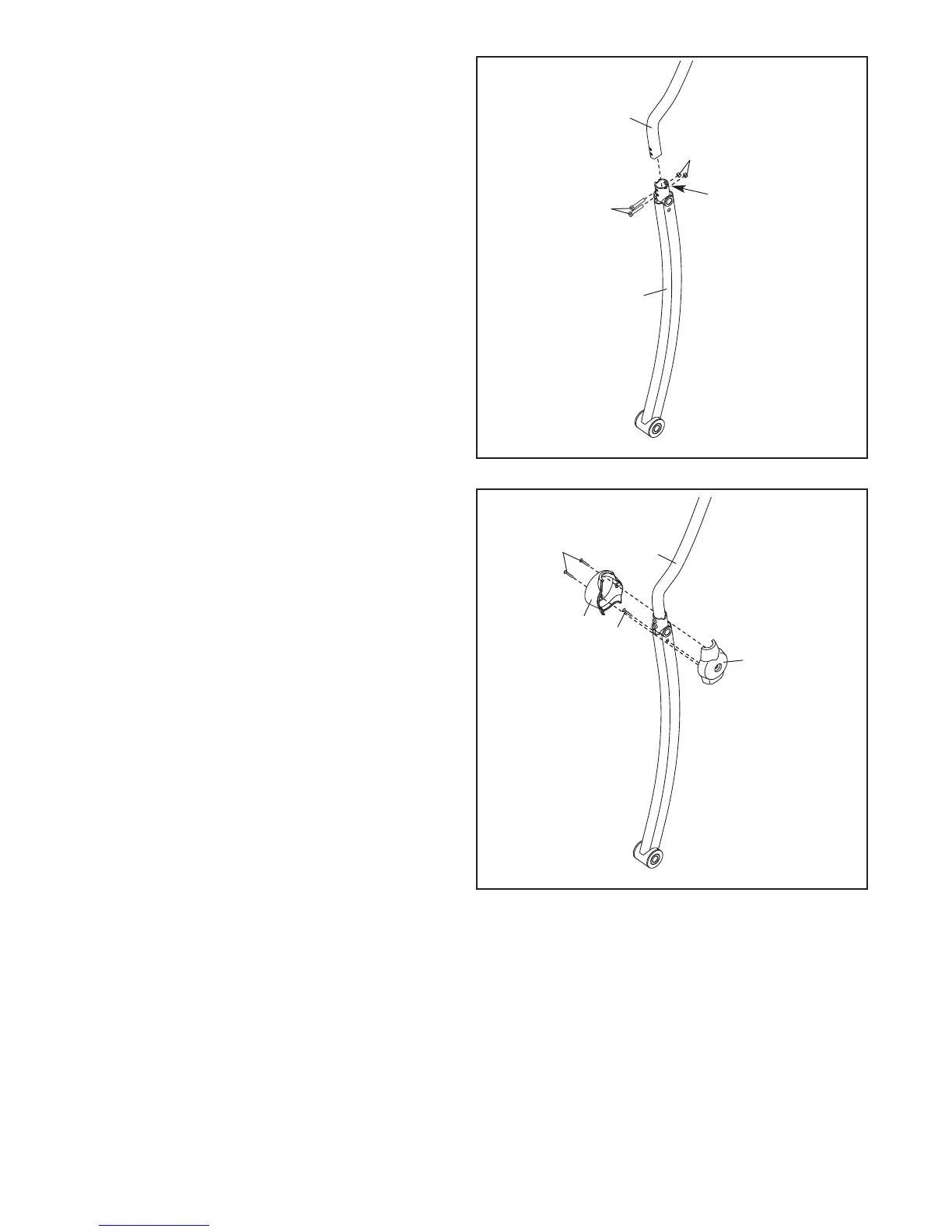

10. Identify the Right Handlebar (9), which is
m
arked with an “R” sticker. Insert the Right
Handlebar into one of the Handlebar Legs (11)
as shown.
Attach the Right Handlebar (9) with two M8 x
42mm Button Bolts (71) and two M8 Nylon
L
ocknuts (96). Make sure that the Nylon
Locknuts are inside the hexagonal holes.
Repeat this step for the Left Handlebar (not
shown) and the other Handlebar Leg (not
shown).
10
9
9
6
71
11
Hexagonal
Holes
