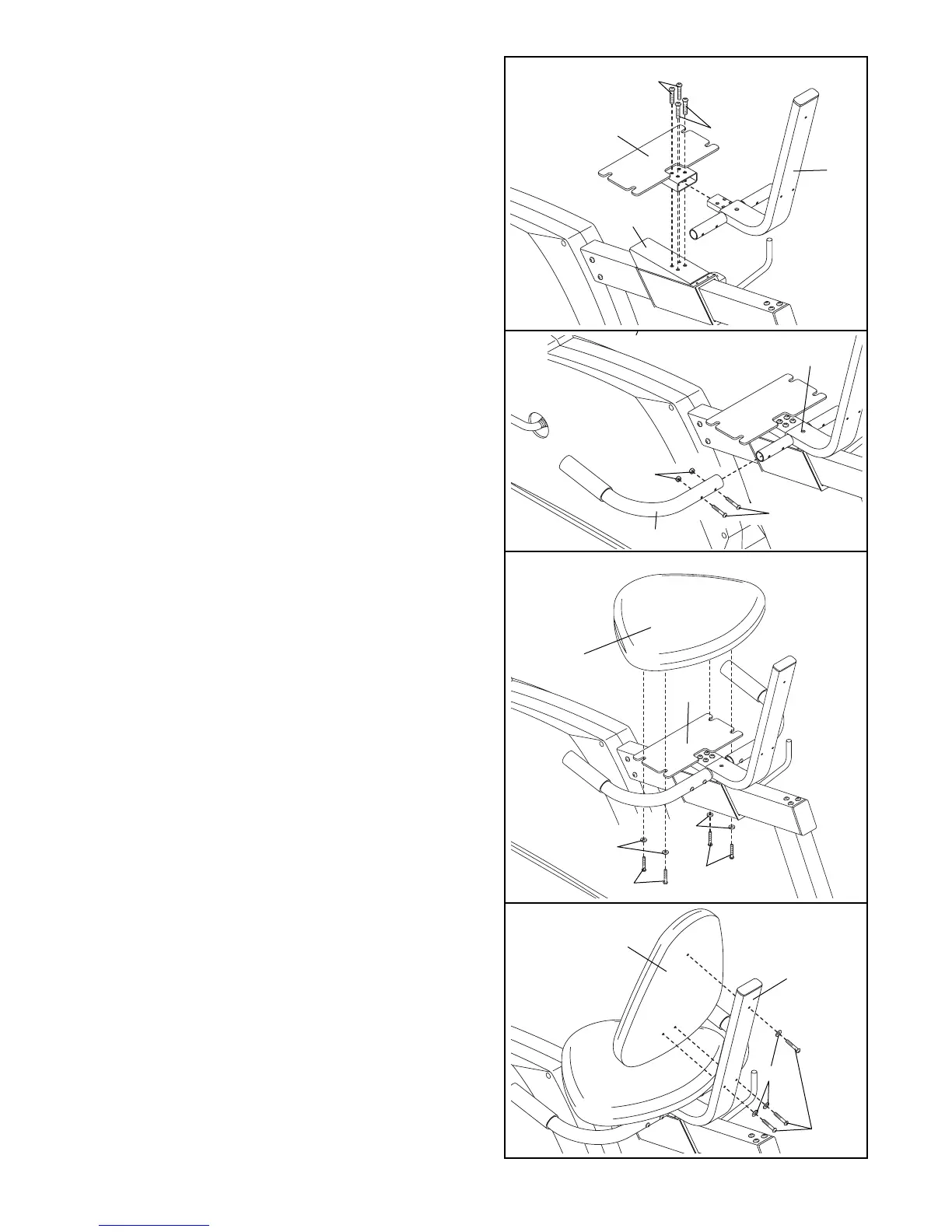

4. Insert the lower end of the Backrest Frame (8) into
the Seat Frame (27). Attach the Seat Frame and the
Backrest Frame to the Seat Carriage (11) with four
M8 x 38mm Button Bolts (24).
5. Slide a Seat Handle (61) onto one side of the
Backrest Frame (8). Attach the Seat Handle with
two M6 x 38mm Button Bolts (14) and two M6 Nylon
Locknuts (15).
Attach the other Seat Handle (not shown) to the
other side of the Backrest Frame (8).
14
13
8
91
4
7
8
24
24
27
11
90
90
12
27
61
8
29
29
15
6
14
7. Attach the Backrest (13) to the Backrest Frame (8)
with three M6 x 38mm Button Bolts (14) and three
M6 Washers (91).
6. Attach the Seat (12) to the Seat Frame (27) with
four M6 x 22mm Button Screws (29) and four M8
Washers (90).
