10

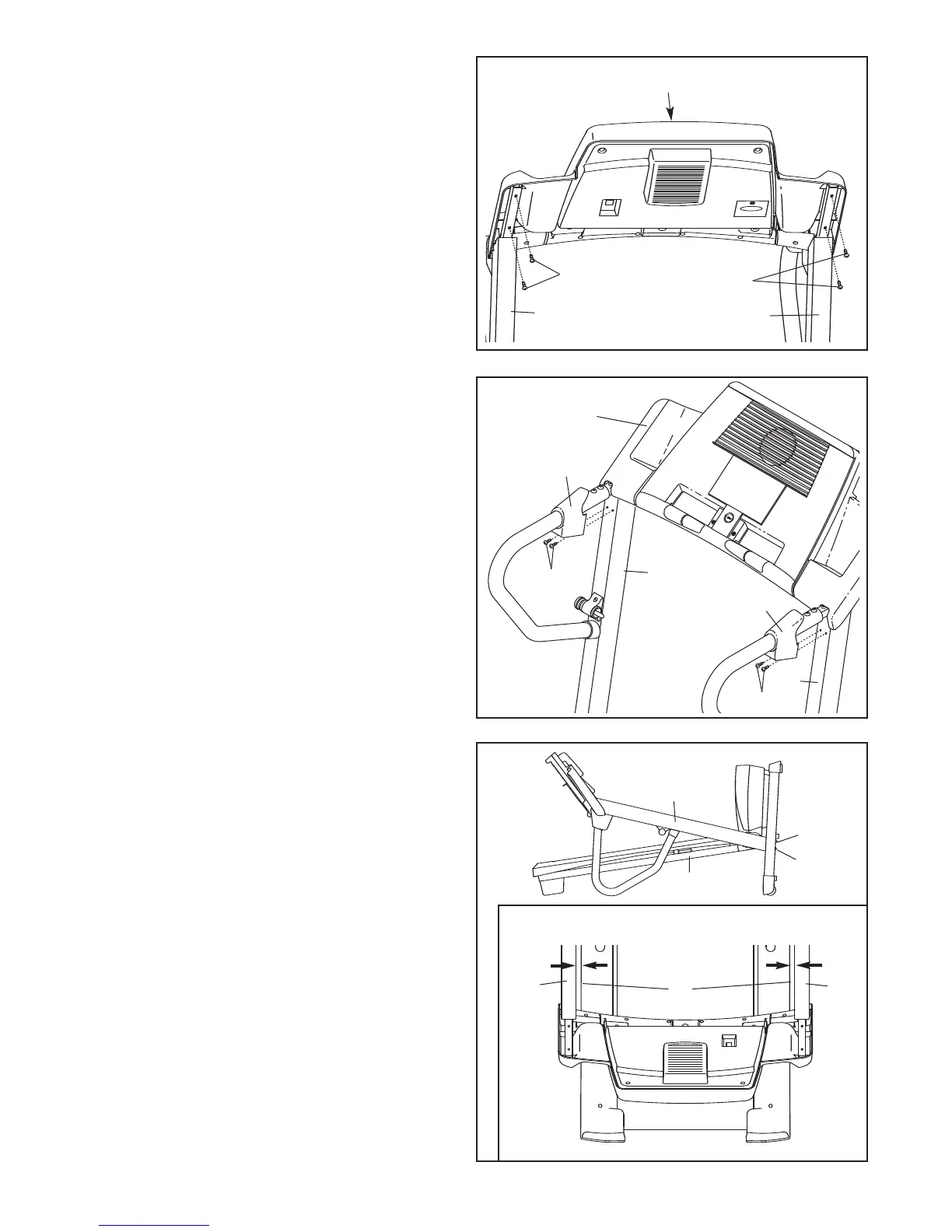

11.Tighten four Console Screws (67) into the Left
and Right Uprights (70, 76) and the console as-
s
embly. S
tart all four Screws, before tighten-
ing them; do not overtighten the Console
S
crews.
Tighten all six 3/4” Screws (23) used in step
10; do not overtighten the Screws.
Console Assembly
67
76
70
67
1
1
12.Slide the Left Handrail Cover (68) up against the
console assembly. Tighten two Cover Screws
(52) into the Left Handrail Cover and the Left
Upright (70);
be careful not to overtighten the
Cover Screws.
Slide the Right Handrail Cover (74) up against
the console assembly. Tighten two Cover Screws
(52) into the Right Handrail Cover and the Right
Upright (76); be careful not to overtighten the
Cover Screws.
Console
Assembly
52
68
70
76
74
52
12
13. Lower the Uprights (70, 76) as shown.
See the inset drawing. Push the Uprights (70,
76) sideways so that the treadmill Frame (26) is
centered between the Uprights.
Firmly tighten the Upright Bolts (84, 85) on each
side of the treadmill.
76
70, 76
26
26
70
View From Above
Side View
13
85
84
To Next Page
