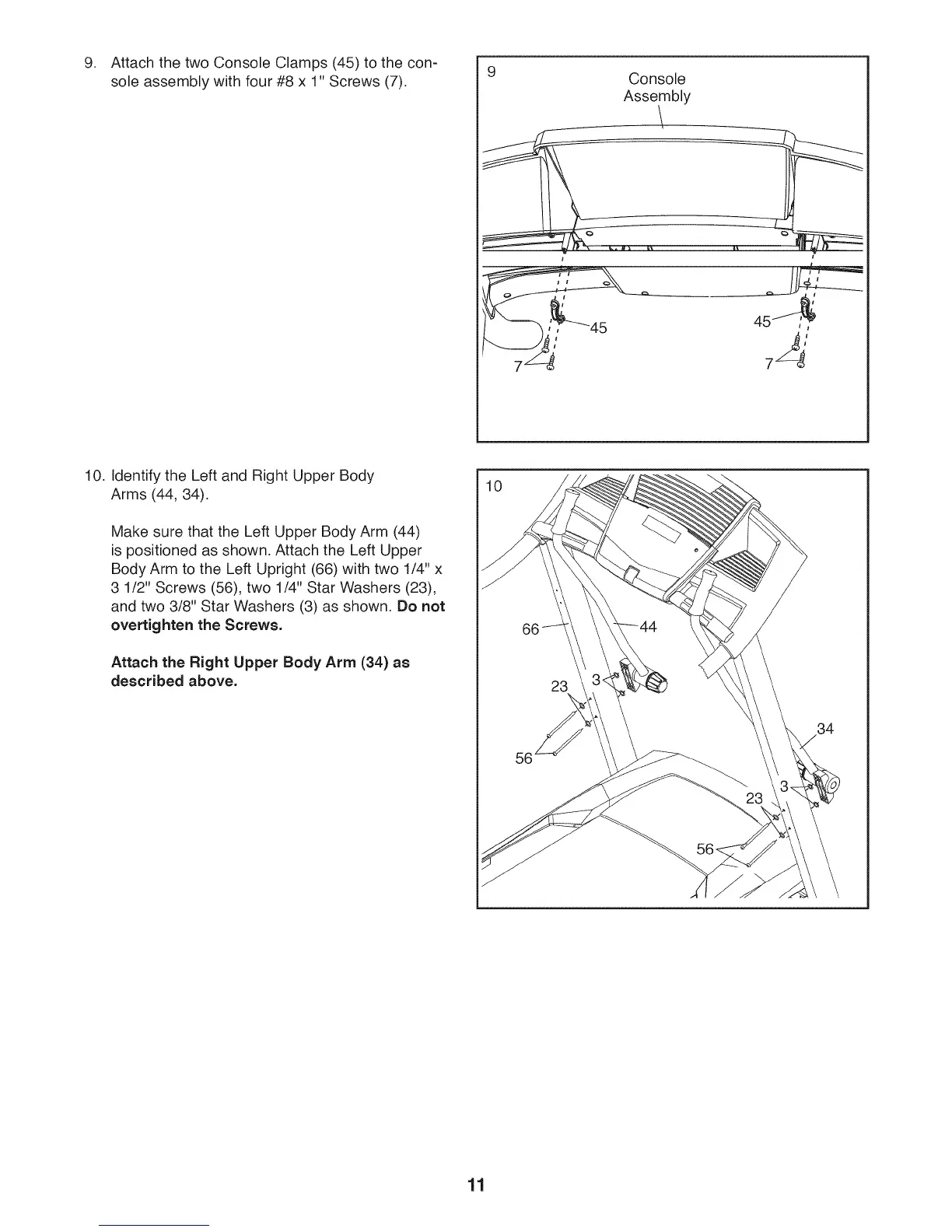

Attach the two Console Clamps (45) to the con-
sole assembly with four #8 x 1" Screws (7).
9 Console
Assembly
10. Identify the Left and Right Upper Body
Arms (44, 34).
Make sure that the Left Upper Body Arm (44)
is positioned as shown. Attach the Left Upper
Body Arm to the Left Upright (66) with two 1/4" x
3 1/2" Screws (56), two 1/4" Star Washers (23),
and two 3/8" Star Washers (3) as shown. Do not
overtighten the Screws.
Attach the Right Upper Body Arm (34) as
described above.
10
56
23
34
11
