14
15. Attach the Left Handrail Cover (79) and the Right
Handrail Cover (92) to the Handrails (86, 87) with
three #8 x 1/2" Screws (1) each. Do not over-
tighten the Screws.
1
92
79
1
86
1
87
1
15

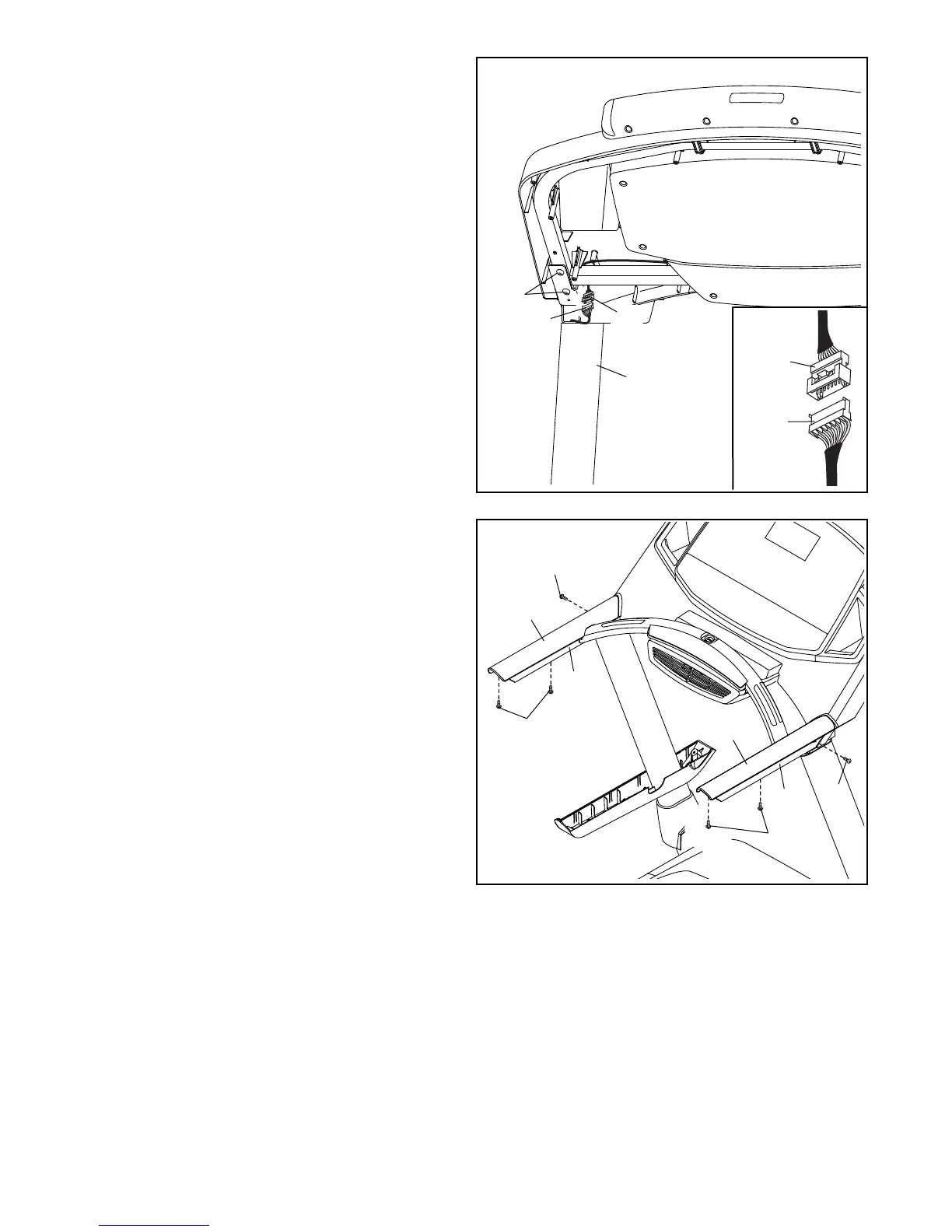

14. See the inset drawing. Connect the Upright
Wire (81) to the console wire (D). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT THE
CONNECTORS PROPERLY, THE CONSOLE
MAY BECOME DAMAGED WHEN YOU TURN
ON THE POWER.
Insert the excess wires (D, 81) into the Right
Upright (90).
Firmly tighten the four 5/16" x 1/2" Screws (4)
(only two are shown).
81
81
D
14
4
90
D
