13

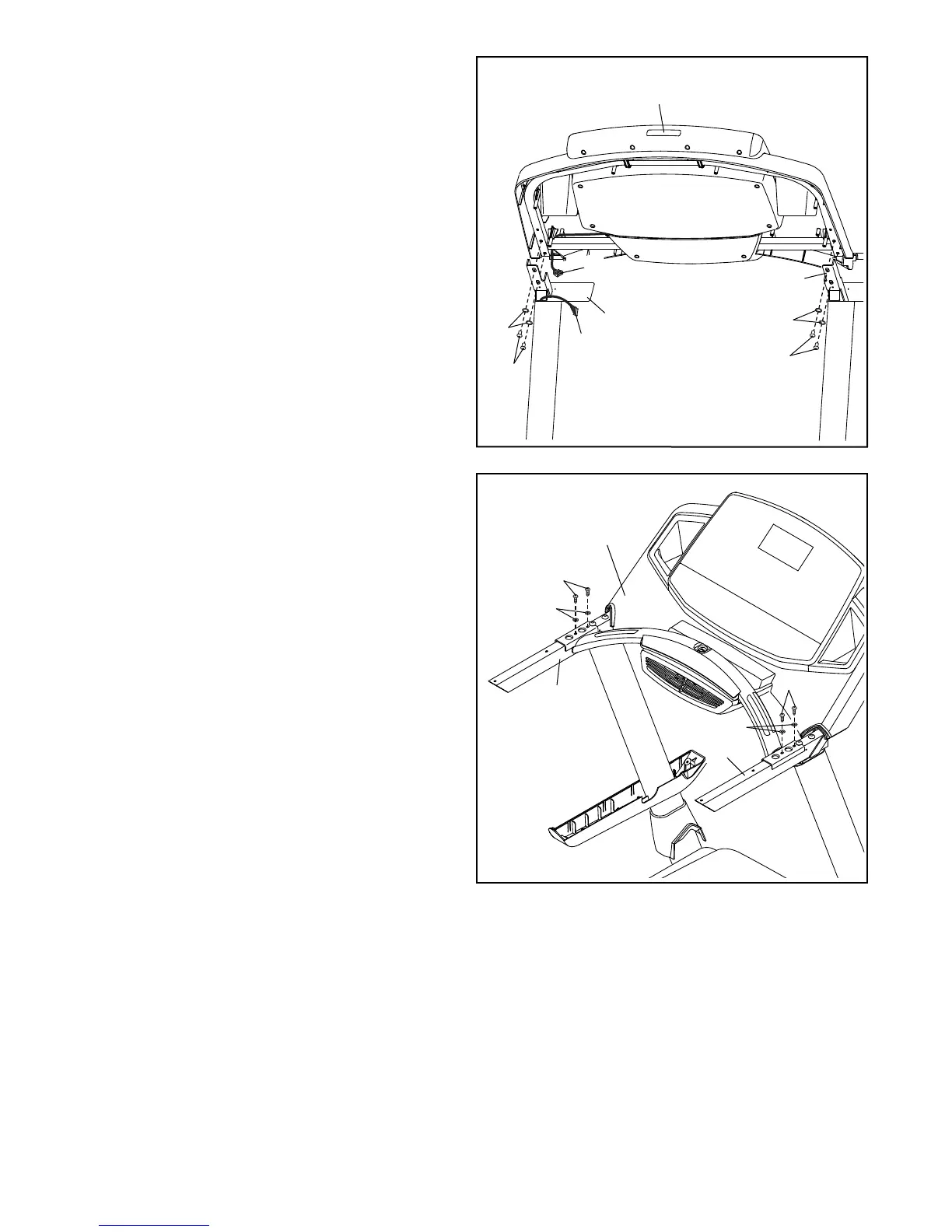

13. Attach the console assembly to the Handrails
(86, 87) with four #10 x 3/4" Screws (9) and four
#10 Star Washers (5) as shown. Start all four
Screws, and then tighten them.
5
13
5
9
86
87
9
Console
Assembly
12. Set the console assembly on the Left Handrail
(86) and the Right Handrail (87). Make sure not
to pinch any wires (D, 81).
Attach the console assembly with four 5/16" x
1/2" Screws (4) and four 5/16" Star Washers
(11). Do not tighten the Screws yet.
12
Console
Assembly
87
86
4
11
4
11
81
D
To Next Page
