14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 26 and 27).

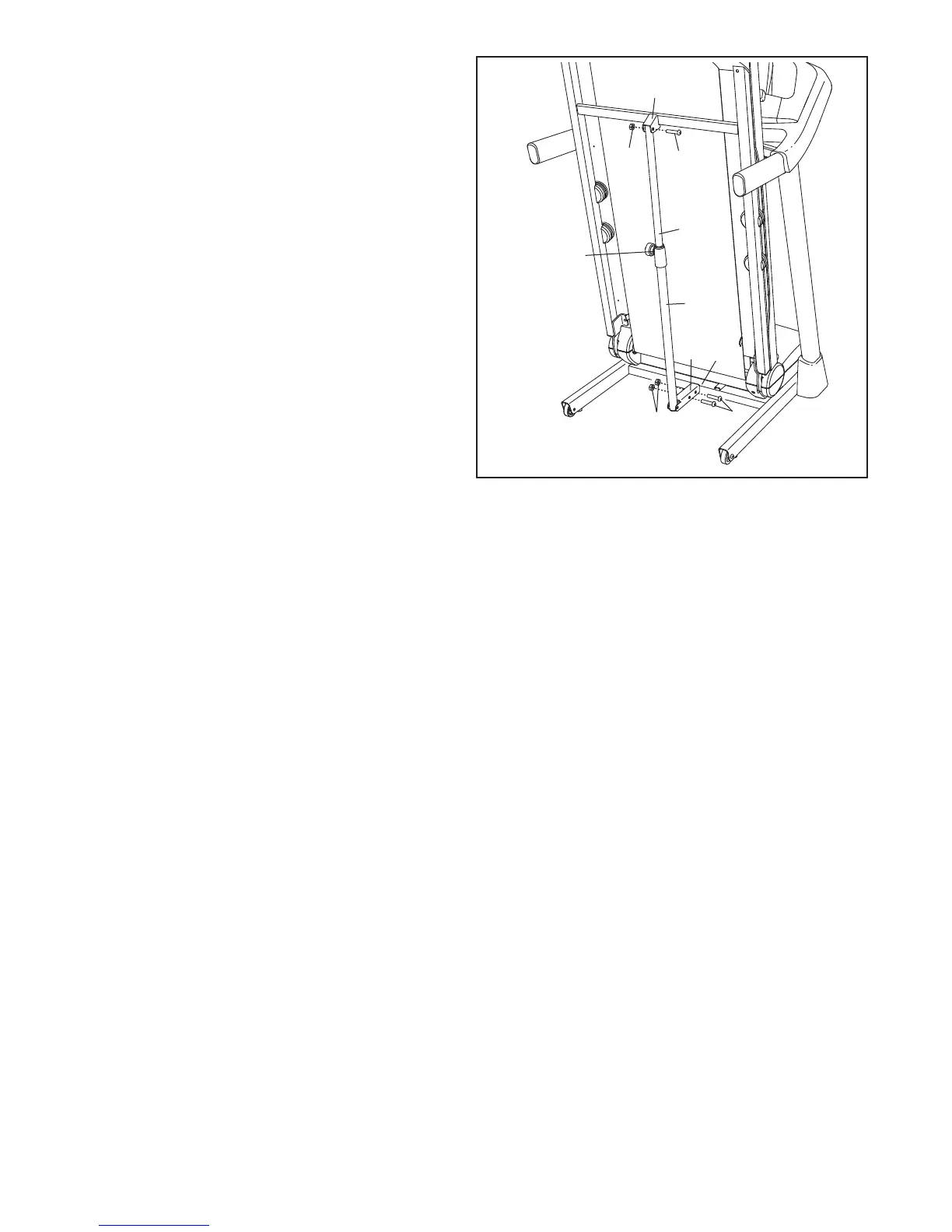

13. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
O
rient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the Latch Bracket (6) and Storage Latch
(
51) to the Base (95) with two 3/8" x 2" Bolts (8)
and two 3/8" Nuts (10).
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10). Note: It may be
necessary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 24).
13
51
95
10
Large
Barrel
8
55
10
6
8
Latch Knob
To Next Page
