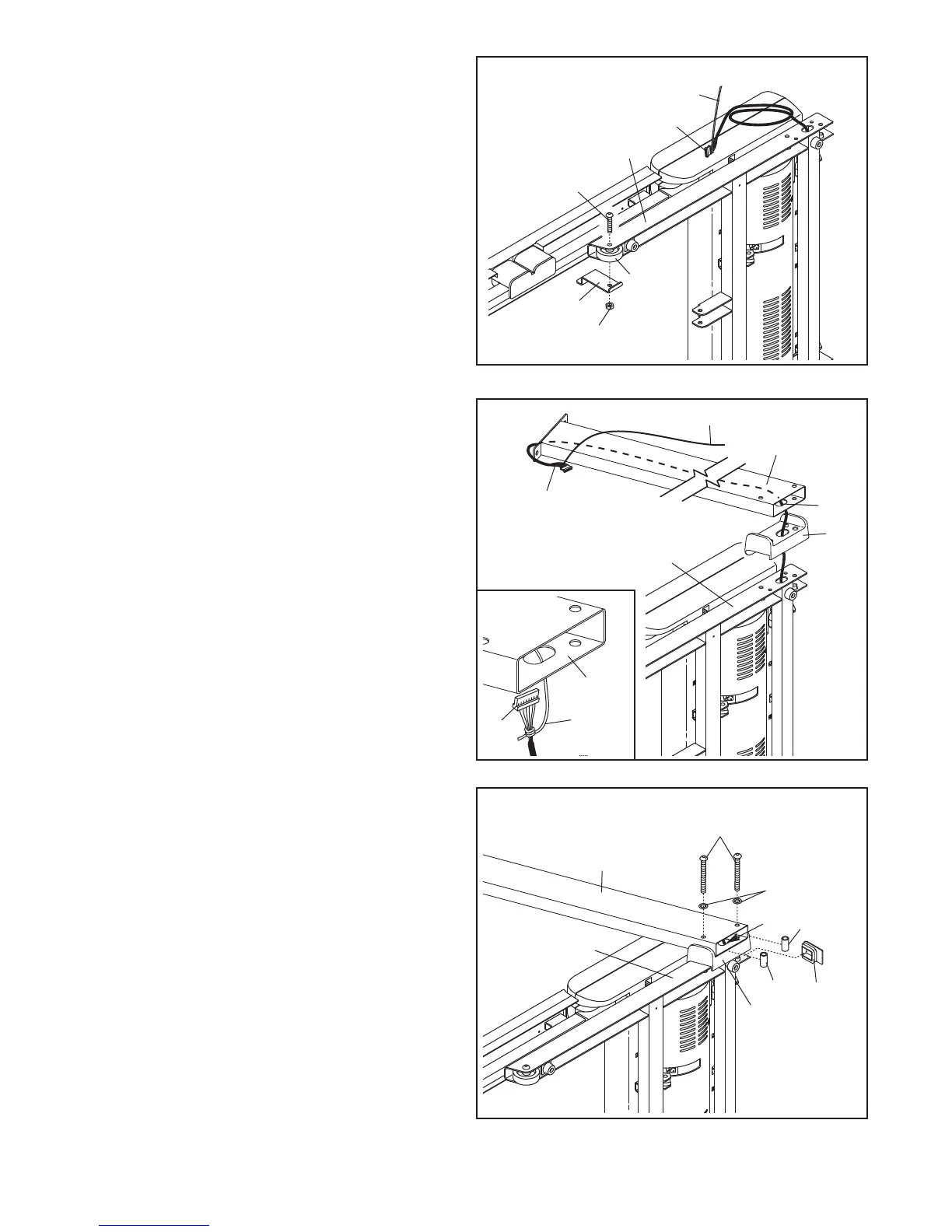

4. Hold a Bolt Spacer (3) inside the lower end of
the Right Upright (72). Insert a 3/8" x 4" Bolt (6)
with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (3), 3/8" x 4" Bolt (6),
and Star Washer (9).
Hold the Right Upright Spacer (74) and the
Right Upright (72) against the Base (80).
Be
careful not to pinch the Upright Wire (78).
Finger tighten the 3/8" x 4" Bolt (6); do not fully
tighten the Bolts yet.
Press a Base Endcap (75) into the Base (80).
3. Identify the Right Upright (72) and the Right
Upright Spacer (74), which are marked with
stickers. Insert the Upright Wire (78) through the
Right Upright Spacer as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (72) securely around the end of
the Upright Wire (78). With the help of a second
person, hold the Right Upright near the Base
(80). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Right Upright.
2
. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (80).
Attach a Base Wheel (81) with the Bolt and the
Nut that you just removed. Do not overtighten
the Nut; the Wheel must turn freely.
Discard
the shipping bracket.
Cut the tie off the Upright Wire (78).
8
0
78
T
ie
4
C
8
2
81
80
78
72
74
78
3
Wire
Tie
72
78
74
72
78
9
75
3
3
6
4
80
Tie
To Next Page
