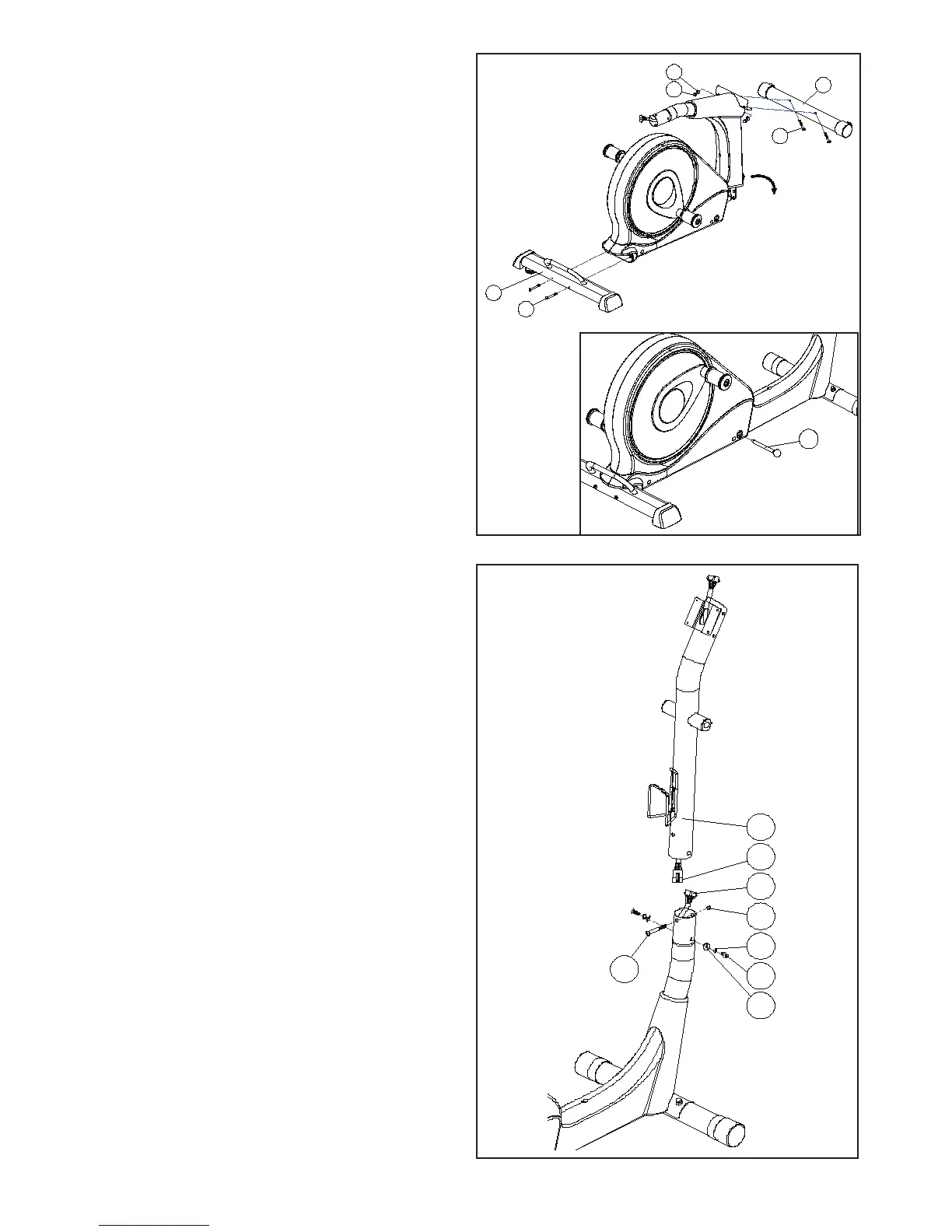

STEP 1
Fasten front stabilizer (35) with 2 carriage bolts
(36) from the underside of stabilizer. Secure with 2
curved washers (13), 2 cap nuts (40). Fasten Rear
stabilizer (101) with 2 allen bolts (100).
Remove the Front main frame welding(33),keep
the entire main frame horizontally.
Using Bolt (95) into the busing ,to keep the main
frame assemble tightly.
Attention: Before insert the bolt,Pls to adjust the
Knob under the bottom tube to keep it in Horizontal
In this way make the bolt inserted smoothly
STEP 2
Carefully lift the Handlebar Post (26) until it is verti-
cal.Connect the Upper Computer Cable (31) and
the Connecting Wire (32).
Remove the loosely tted Allen bolts (15),spring
(14) and curved washers (13) from the Main Frame
and the Handlebar Post (26) into position. Loosely
re-t the 2x M8 Allen Bolt (15), 2 Spring (14) and
2 Curved Washers (13),M8 Allen Bolt(30),M8 Nut
(22) and align the Handlebar Post so it is straight
then tighten the Allen bolts fully.
101
100
36
35
13
40
14
15
13
22
30
32
31
26
95
