ProForm SpaceSaver 700 PFIVEL74313.0 User Manual

7

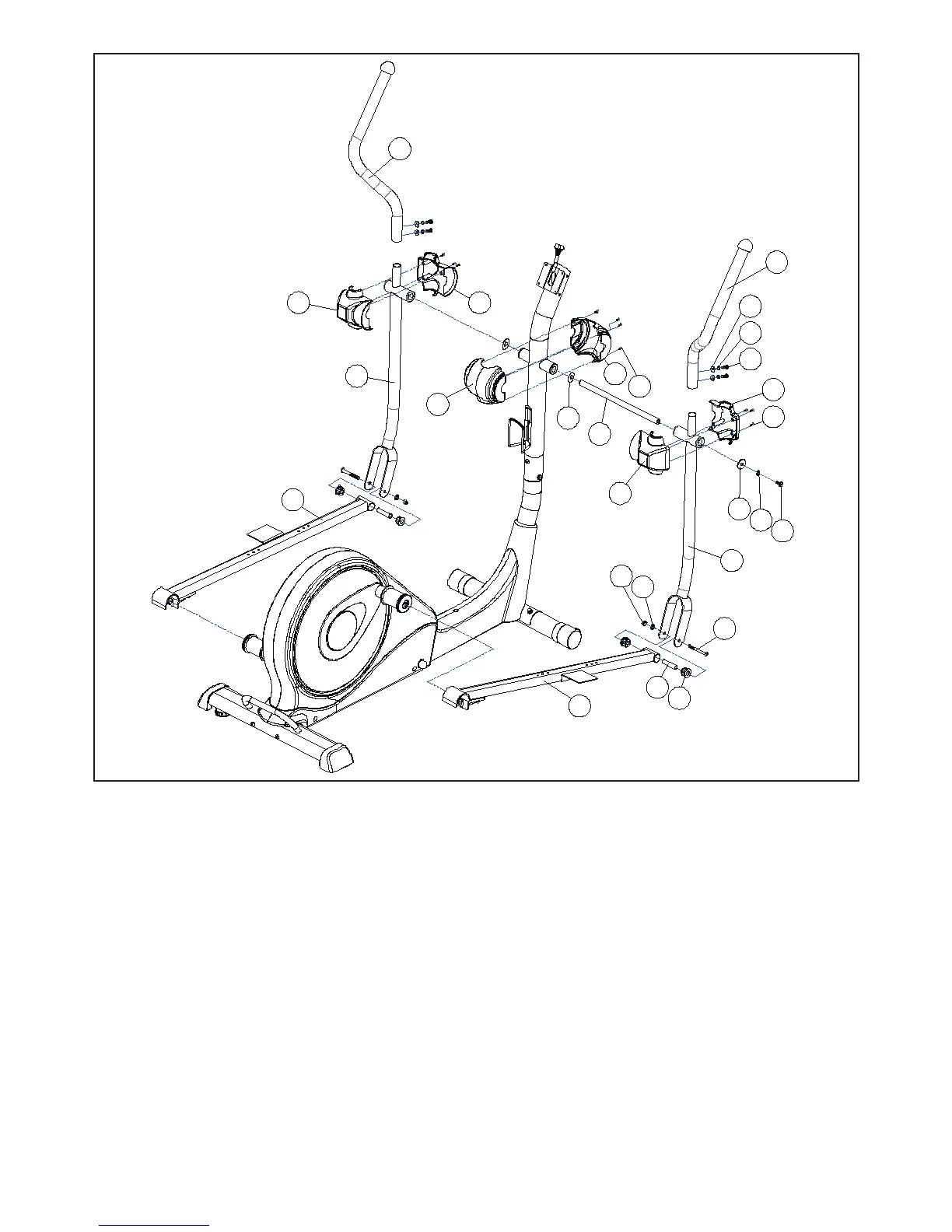

STEP 3
Slide the lower swing bar Left and Right (21) onto the Rotation Rod (24) and secure using 2 Allen Bolts
(18), 2 spring (14), 2 washers (19) and 2 black washers (25) tighten fully.
Fit the upper swing bar Left and Right (11) by slotting them onto the top of the lower swing bar Left and
Right (21) and secure in place using 4 Allen bolts (15), 4 spring (14) and 4 curved washers (13), tighten
fully.
Fasten footplate support bars(51L+R) to the lower swing bars(21) with Allen bolts (46) and secure it with
washers (49) and nuts (50).
Secure plastic cover (16L+R) and (27F+R)onto swing bar and handlebar post with screws (17) separately.
13
14
15
18
14
19
17
27R
27F
11R
11L
51R
51L
50
49
48
47
21R
21L
24
25
17
46
16F 16R
16R
16F
