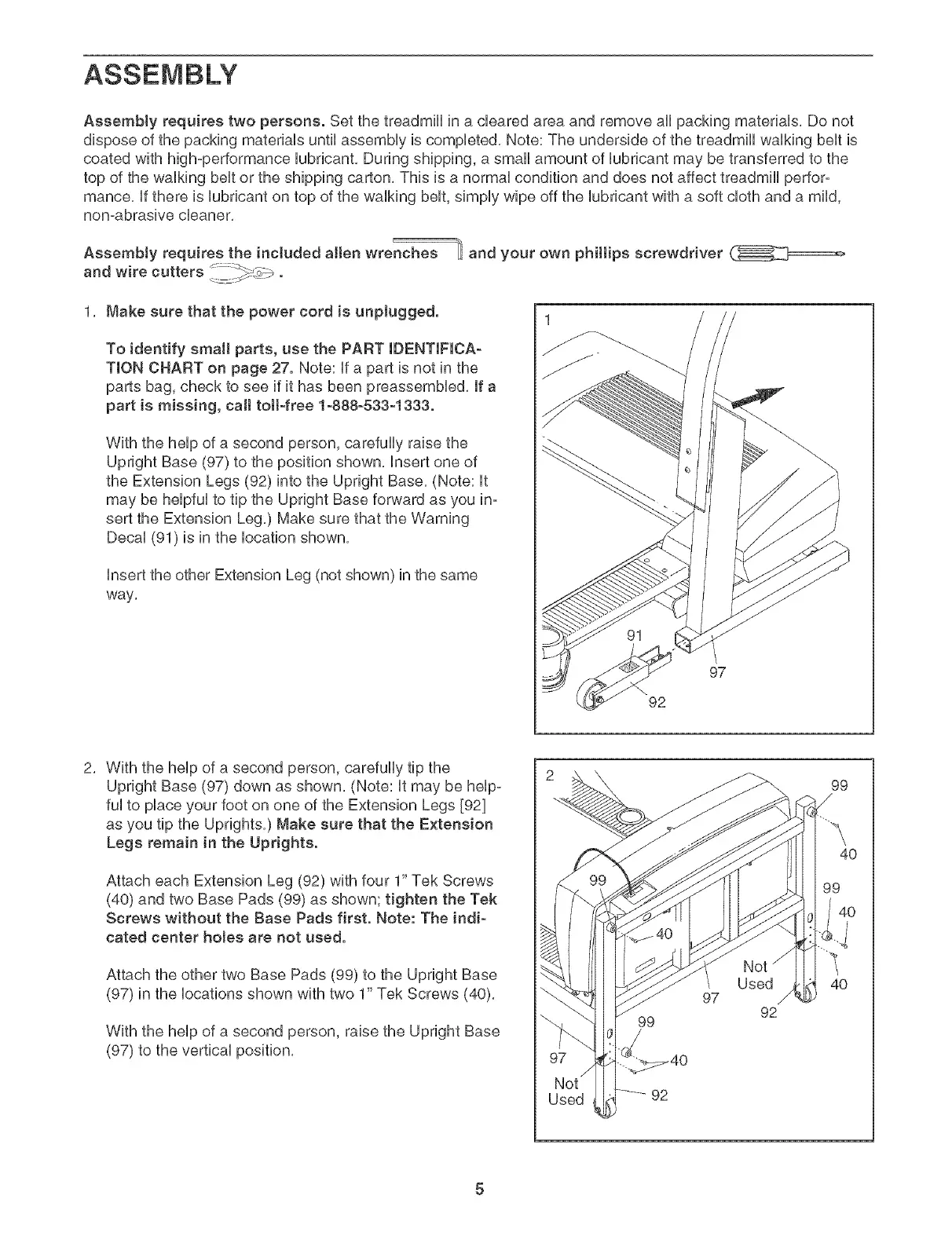

ASSEMBLY
Assembly requires two persons. Set the treadmHUin a cUeared area and remove aUUpacking materiaUs, Do not
dispose of the packing materiaUsuntil assembUyis compUeted, Note: The underside of the treadmiUUwaUking beUtis
coated with high-pedormance Uubricant, During shipping, a smaUUamount of Uubricant may be transferred to the
top of the waUking beUtor the shipping carton, This is a normaUcondition and does not affect treadmiUUpedor-
mance, Ufthere is Uubricant on top of the waUking beUt,simpUywipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner,
E
AssembJy requires the included allen wrenches _ and your own philtips screwdriver
and wire cutters _:- _=_.
1, Make sure that the power cord is unplugged.
To identify small parts, use the PART IDENTIFICA-
TION CHART on page 27. Note: If a part is not in the
parts bag, check to see if it has been preassembled, If a
part is missing, call toil-free 1-888-533-1333.
With the help of a second person, carefully raise the
Upright Base (97) to the position shown, Insert one of
the Extension Legs (92) into the Upright Base, (Note: It
may be helpful to tip the Upright Base forward as you in-
sert the Extension Leg,) Make sure that the Warning
Decal (91) is in the location shown,
Insert the other Extension Leg (not shown) in the same
way.
97
92
2. With the help of a second person, carefully tip the
Upright Base (97) down as shown. (Note: It may be helpo
fW to place your foot on one of the Extension Legs [92]
as you tip the Uprights.) Make sure that the E×tension
Legs remain in the Uprights.
Attach each Extension Leg (92) with four 1" Tek Screws
(40) and two Base Pads (99) as shown; tighten the Tek
Screws without the Base Pads first. Note: The indi-
cated center hotes are not used.
Attach the other two Base Pads (99) to the Upright Base
(97) in the locations shown with two 1" Tek Screws (40),
With the help of a second person, raise the Upright Base
(97) to the vertical position,
99
/
92
97
Not
92
99
