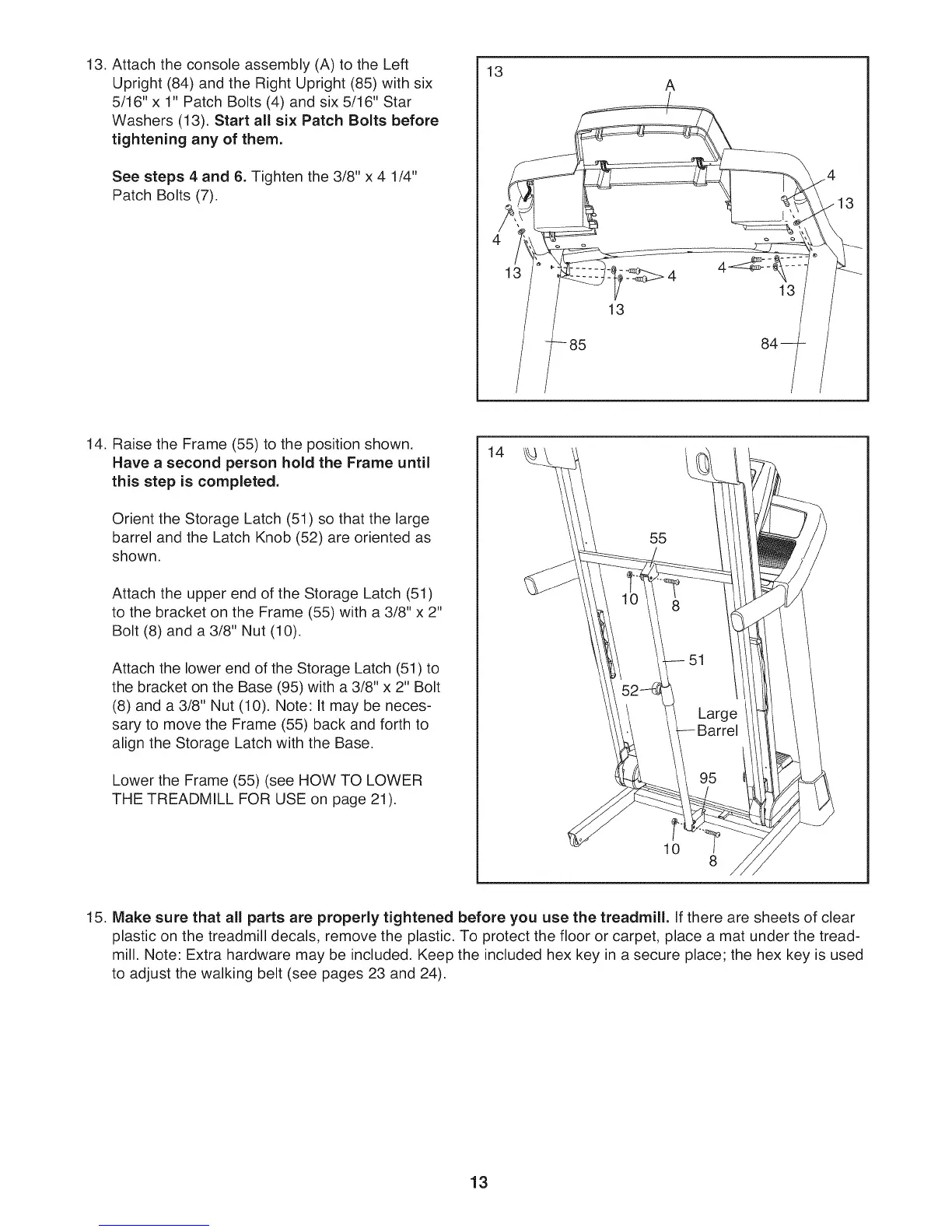

13. Attach the console assembly (A) to the Left
Upright (84) and the Right Upright (85) with six
5/16" x 1" Patch Bolts (4) and six 5/16" Star
Washers (13), Start all six Patch Bolts before
tightening any of them.
See steps 4 and 6. Tighten the 3/8" x 4 1/4"
Patch Bolts (7).
13
A
13
84 m
t 13
14. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the Latch Knob (52) are oriented as
shown.
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10).
Attach the lower end of the Storage Latch (51) to
the bracket on the Base (95) with a 3/8" x 2" Bolt
(8) and a 3/8" Nut (10), Note: It may be neces-
sary to move the Frame (55) back and forth to
align the Storage Latch with the Base.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
14
55
15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic, To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included, Keep the included hex key in a secure place; the hex key is used
to adjust the walking belt (see pages 23 and 24).
13
